JE Pistons 312431 - PEUGEOT 106 TU5J2 11.8:1 Set of 4 Pistons

JE Pistons  |  SKU: BHXG-312431
Sale price $89999 Regular price $98999

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

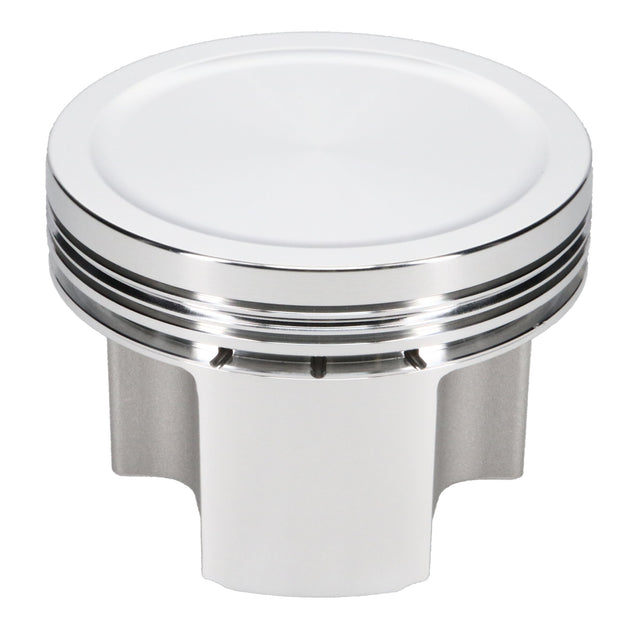

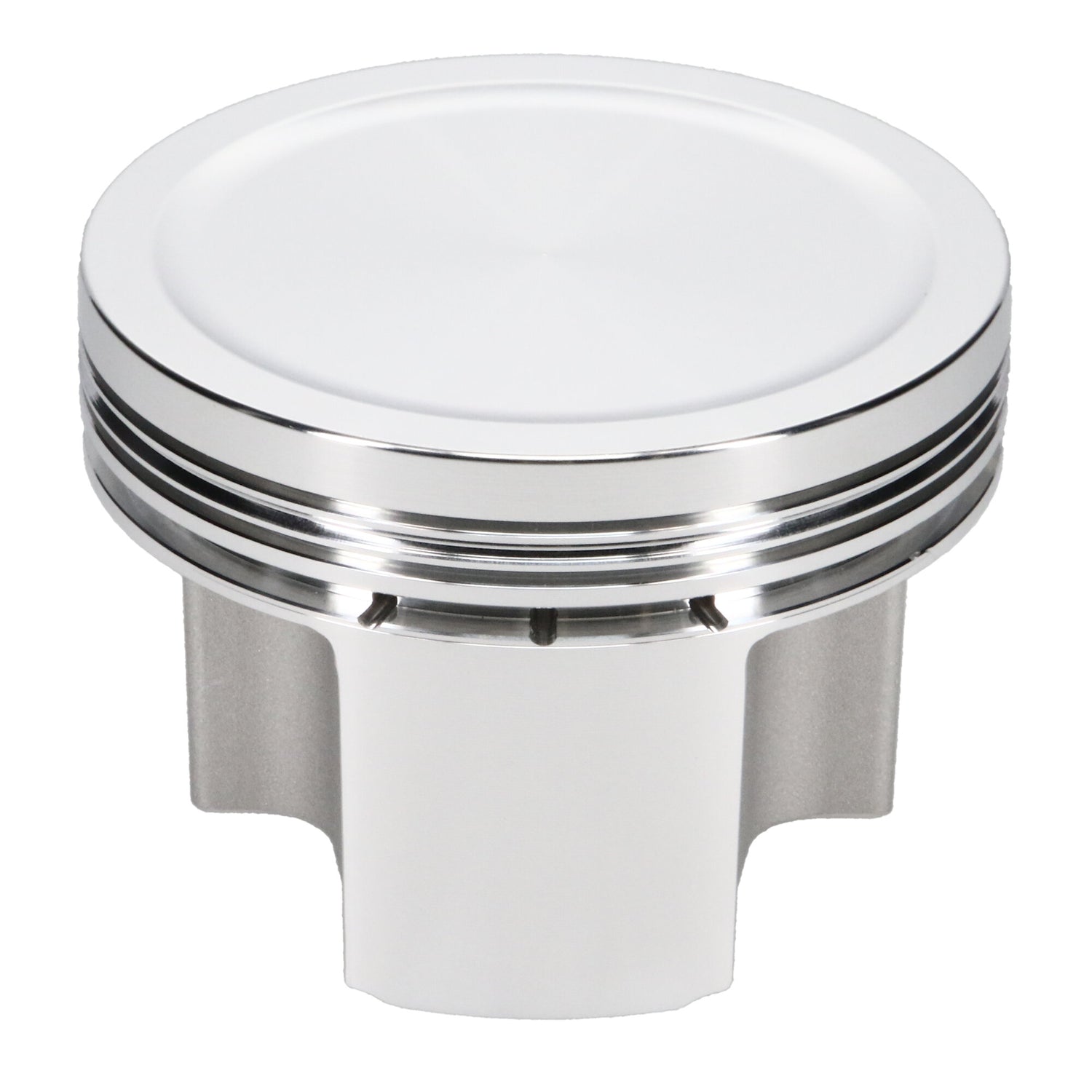

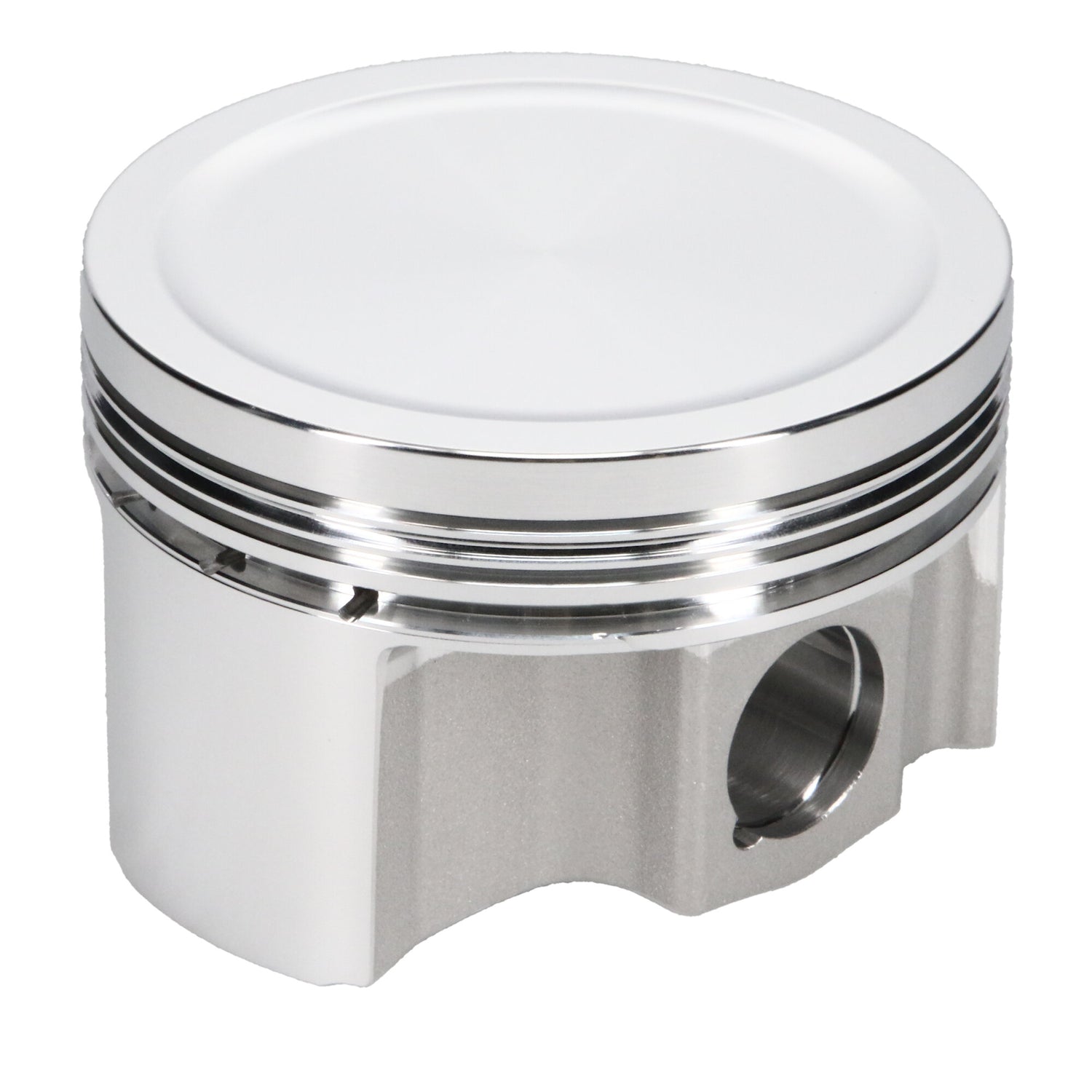

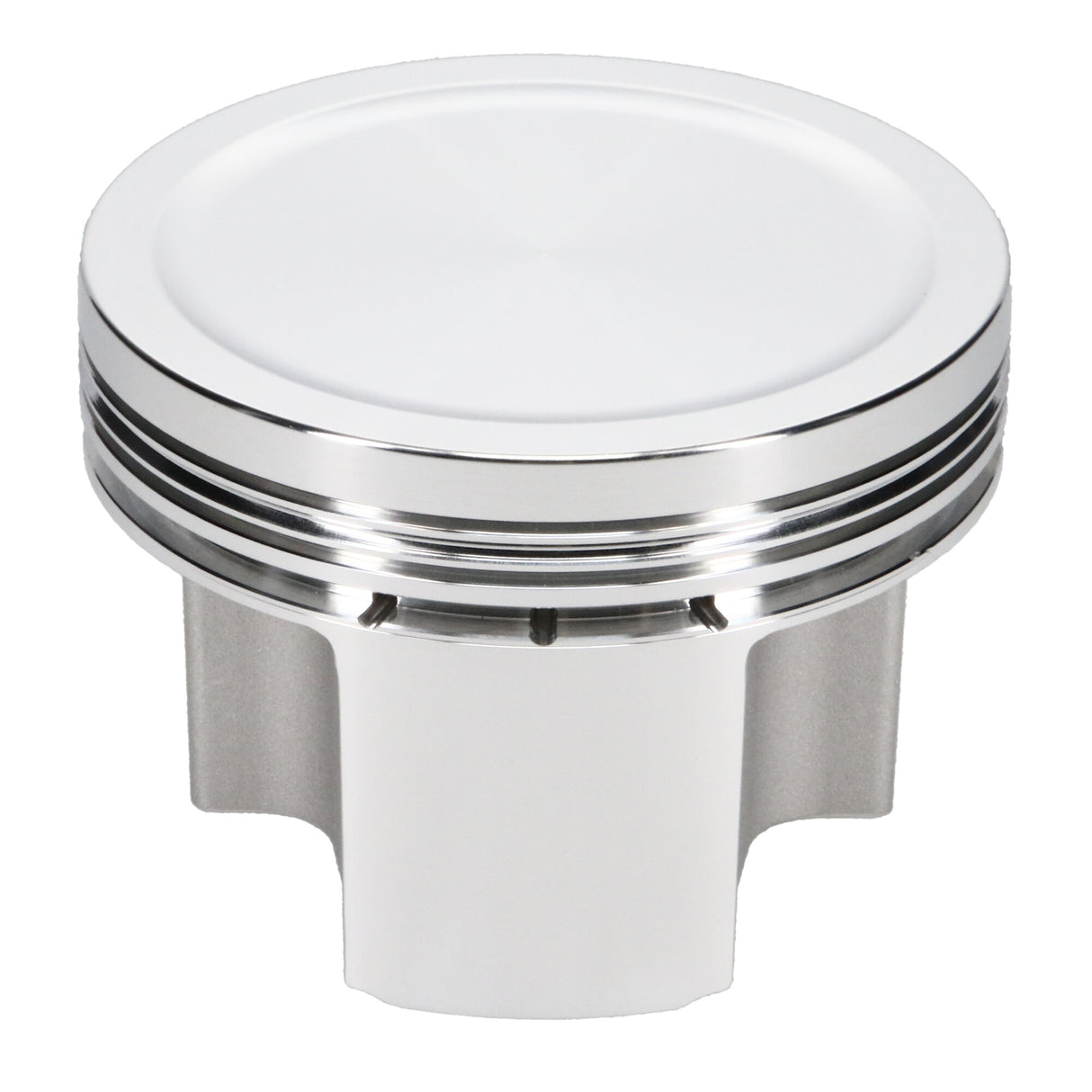

JE Pistons 312431 - PEUGEOT 106 TU5J2 11.8:1 Set of 4 Pistons

Piston Set, 2618, Dome, 3.091 Bore, 1.280 CD, 0.708 Pin, Set of 4.

JE, Peugeot, TU5J2, 3.090 in. Bore, 11.80:1, Dome, 4 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

    • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
    • Designed specifically for each engine and use application to provide optimized performance durability
    • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
    • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
    • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
    • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
    • Made 100% in the USA
Ring Set Included: Yes
Second Compression Ring Thickness: 0.0600
Title - Web: JE Pistons Peugeot TU5J2 Piston Kit - 78.50 mm Bore - 1.280 in. CH, 2.50 CC
Top Compression Ring Thickness: 0.0480
Wrist Pin Length: 2.250
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.708
Wrist Pin Wall Thickness: 0.120
Add-On: JC3004-3091
Add-On: 708-2250-12-51C
Add-On: 708-050-MW
Bore Diameter - Web: 78.50 MM
Bore Diameter: 78.50
Category Hierarchy: Auto>JE Pistons>Piston Kits
Compression Height: 1.280
Cylinder Head: TU5J2
Engine - Web: TU5J2
Engine Type: ICE
Engine: TU5J2
Forging Type: Round
Industry: Automotive
Make - Web: Peugeot
Make: Peugeot
Oil Ring Thickness: 0.111
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 270
Piston Head Type: Dome
Piston Material: 2618
Piston Quantity: 4
Piston Series: JE Pistons
Piston Volume: 2.50
Product Market: European
Product Type: Engine Piston Kit
