JE Pistons 312392 - CITROEN SAXO TU5J4 Set of 4 Pistons

JE Pistons  |  SKU: BHXG-312392
Sale price $89999 Regular price $98999

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

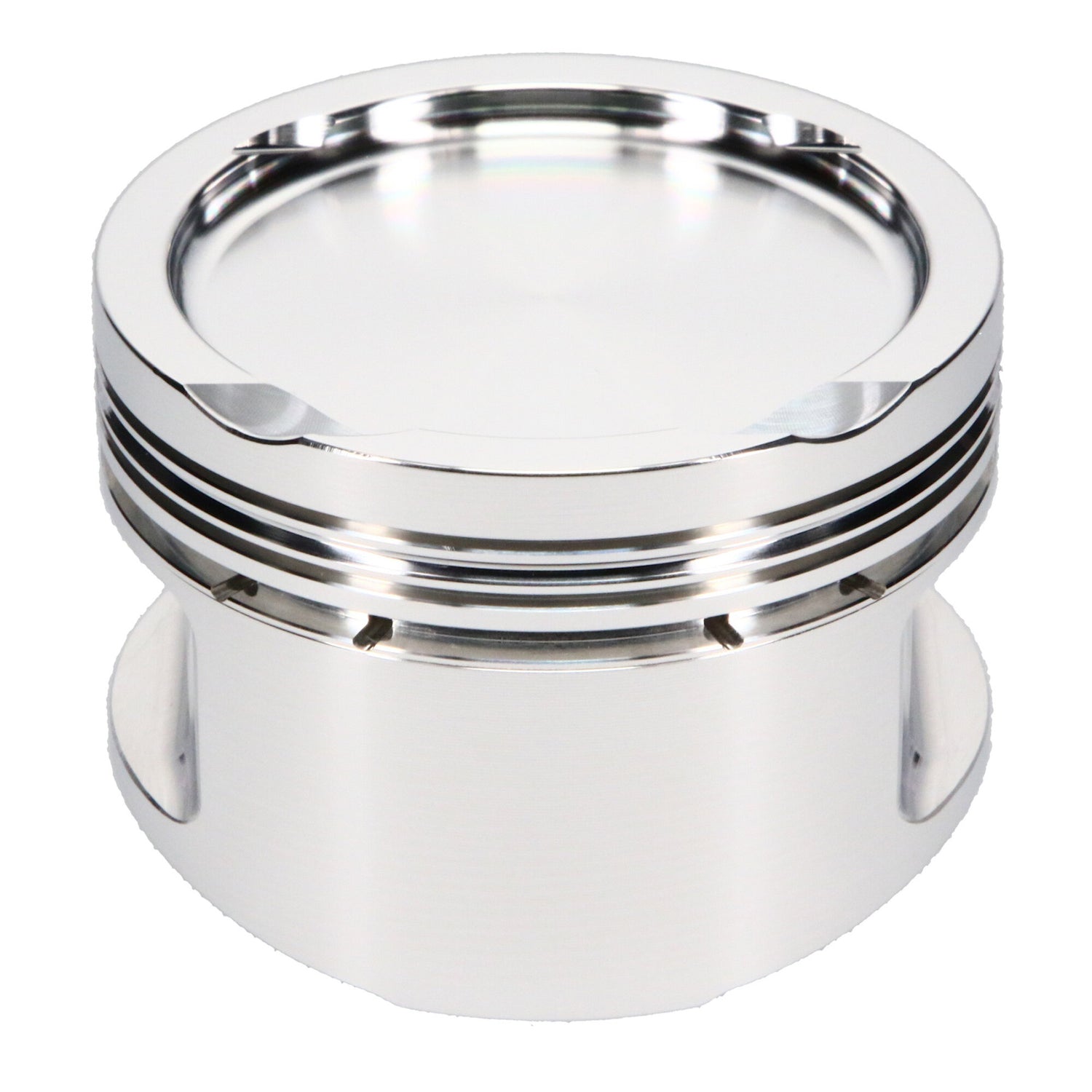

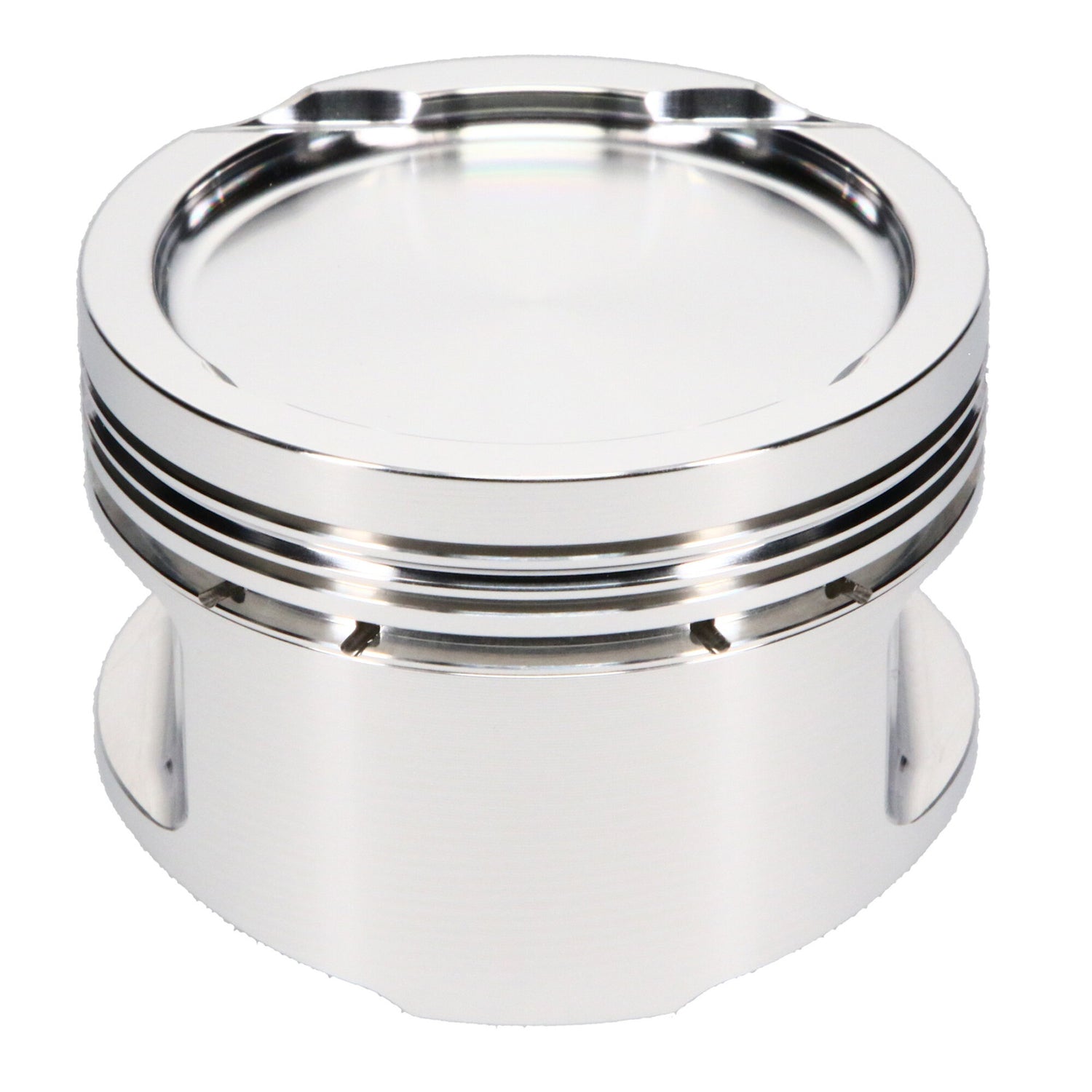

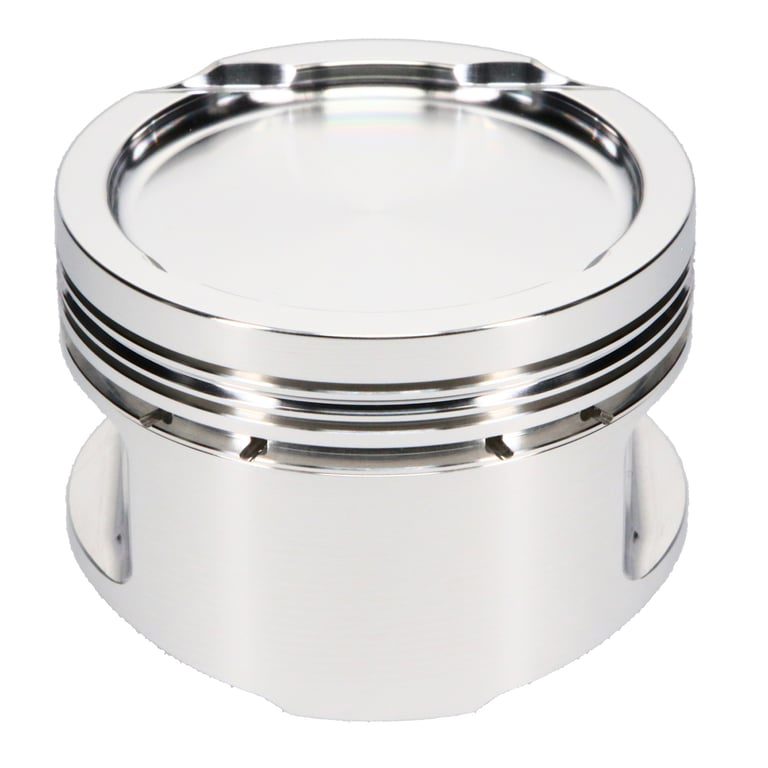

JE Pistons 312392 - CITROEN SAXO TU5J4 Set of 4 Pistons

Piston Set, 2618, Inv Dome/Dish, 3.130 Bore, 1.280 CD, 0.767 Pin, Set of 4.

JE, Citroen, TU5J4, 3.130 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: TU5J4
Bore Diameter: 79.50
Piston Head Type: Dish
Compression Height: 1.280
Piston Volume: -15.40
Piston Material: 2618
Piston Quantity: 4
Forging Type: Round
Piston Average Weight: 274
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0400
Oil Ring Thickness: 0.08
Wrist Pin Outer Diameter: 0.767
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.130
Product Type: Engine Piston Kit
Product Market: Sport Compact
Add-On: XG7950
Engine: TU5J4
Make: Citroen
Industry: Automotive
Engine Type: ICE
Stroke: 3.228
Oil Groove Width: 0.08000
2nd Groove Width: 0.04000
Top Groove Width: 0.04000
Intake Angle: 24
Exhaust Angle: 24
Exhaust Diameter: 1.200
Exhaust Depth: .119
Intake Diameter: 1.350
Intake Depth: .116
Piston To Wall Clearance: -0.003499
