JE Pistons 301465 - SBC 400 FSR DOME Set of 8 Pistons

JE Pistons  |  SKU: BHXG-301465
Sale price $1,17699 Regular price $1,29469

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

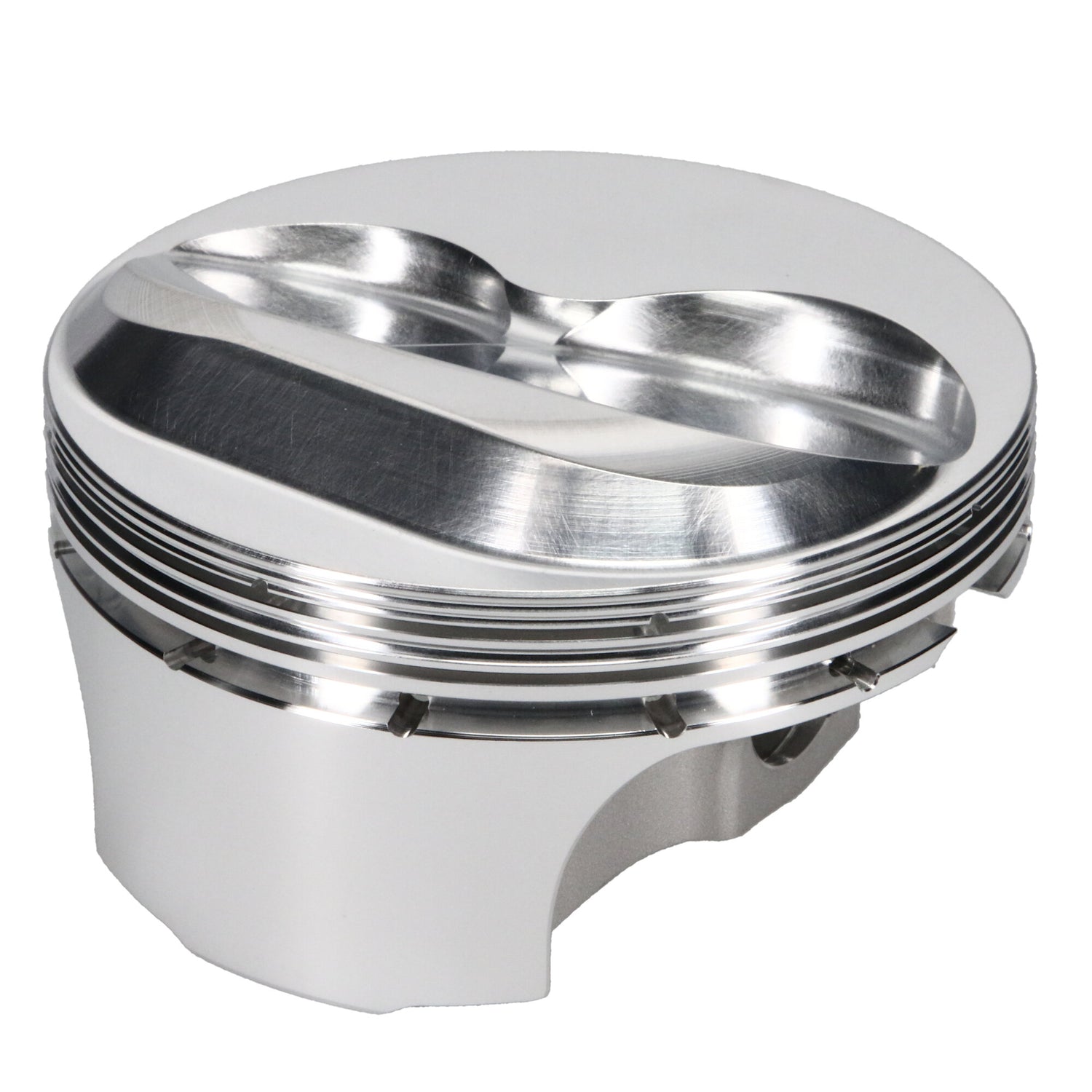

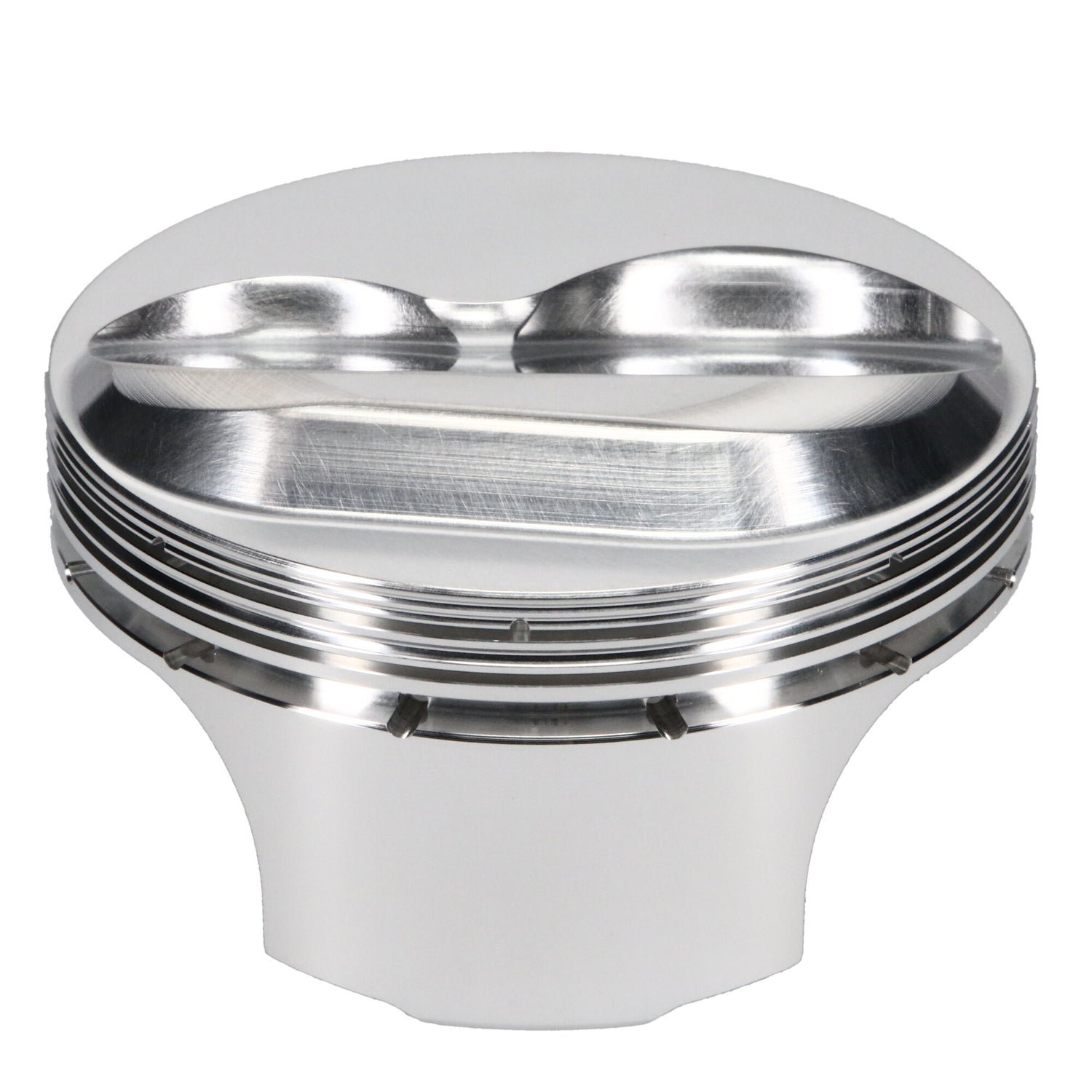

JE Pistons 301465 - SBC 400 FSR DOME Set of 8 Pistons

Piston Set, 2618, Dome, 4.155 Bore, 1.100 CD, 0.927 Pin, Set of 8.

4.155 in. Bore, 1.100 CD, 10.8 cc, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: CHEVROLET 23 DEG 20/30
Bore Diameter: 4.155
Piston Head Type: Dome
Compression Height: 1.100
Piston Volume: 10.80
Piston Material: 2618
Piston Quantity: 8
Forging Type: FSR
Piston Average Weight: 428
Ring Set Included: No
Top Compression Ring Thickness: 0.0435
Second Compression Ring Thickness: 0.0440
Oil Ring Thickness: 0.119
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.170
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: J71408-4155-5
Engine: Small Block
Make: Chevrolet
Industry: Automotive
Engine Type: ICE
Stroke: 3.800
Oil Groove Width: 0.11900
2nd Groove Width: 0.04400
Top Groove Width: 0.04350
Intake Angle: 22.5
Exhaust Angle: 22.5
Exhaust Diameter: 1.870
Exhaust Depth: S
Intake Diameter: 2.250
Intake Depth: .330
Piston To Wall Clearance: -0.004999
