JE Pistons 297811 - BBC BLOWN ALKY DOME Set of 8 Pistons

JE Pistons  |  SKU: BHXG-297811
Sale price $1,25999 Regular price $1,38599

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

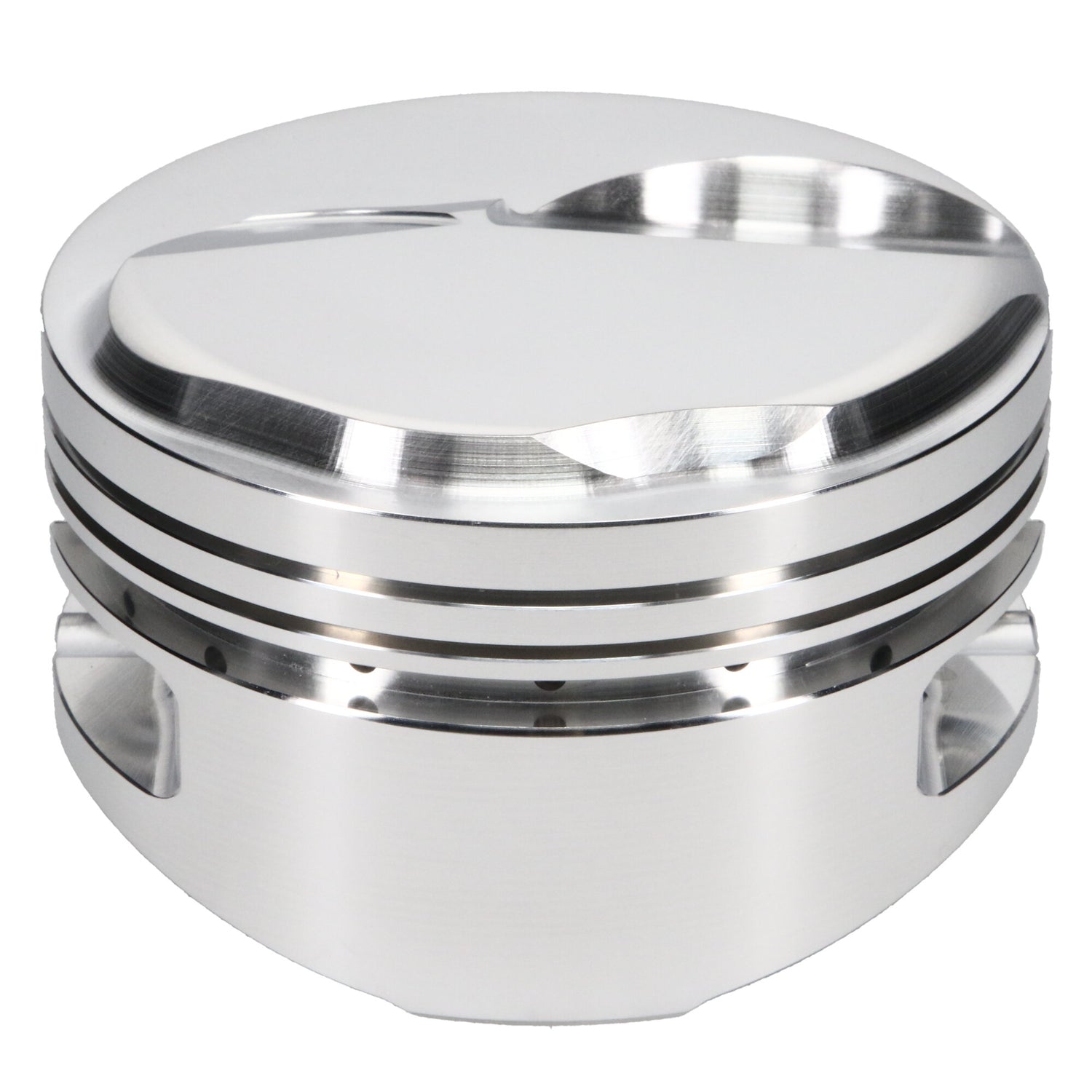

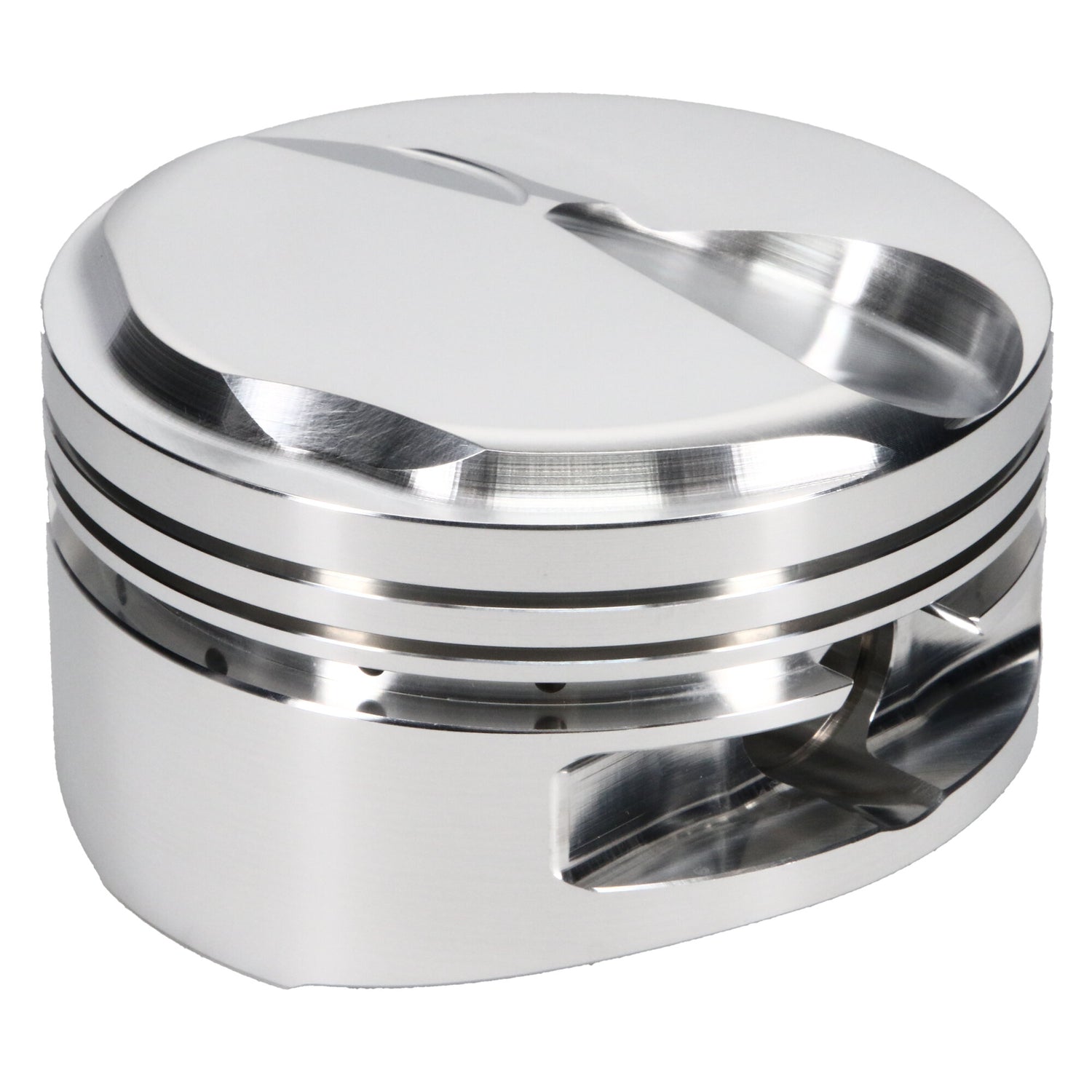

JE Pistons 297811 - BBC BLOWN ALKY DOME Set of 8 Pistons

Piston Set, 2618, Dome, 4.500 Bore, 1.395 CD, 0.990 Pin, Set of 8.

4.500 in. Bore - 1.395 CD - (30.1 cc) - 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Engine Type: ICE
Stroke: 4.000
Piston To Wall Clearance: -0.006
Oil Groove Width: 0.21800
2nd Groove Width: 0.06400
Top Groove Width: 0.07500
Exhaust Depth: ^.100
Exhaust Angle: 15
Exhaust Diameter: 2.050
Intake Angle: 24
Intake Diameter: 2.500
Intake Depth: .310
Oil Rail Support Required. Part Number:: 4500-203
Piston Series: JE Pistons
Cylinder Head: OPEN CHAMBER
Bore Diameter: 4.500
Piston Head Type: Dome
Compression Height: 1.395
Piston Volume: 30.90
Piston Material: 2618
Piston Quantity: 8
Forging Type: Round
Piston Average Weight: 712
Ring Set Included: No
Top Compression Ring Thickness: 0.0750
Second Compression Ring Thickness: 0.0640
Oil Ring Thickness: 0.218
Wrist Pin Outer Diameter: 0.990
Wrist Pin Length: 2.930
Wrist Pin Wall Thickness: 0.200
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: J890F8-4500-5
Engine: Big Block
Make: Chevrolet
Industry: Automotive
