JE Pistons 297007 - MITSU EVO V11-IX KIT Set of 4 Pistons

JE Pistons  |  SKU: BHXG-297007
Sale price $84999 Regular price $93499

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

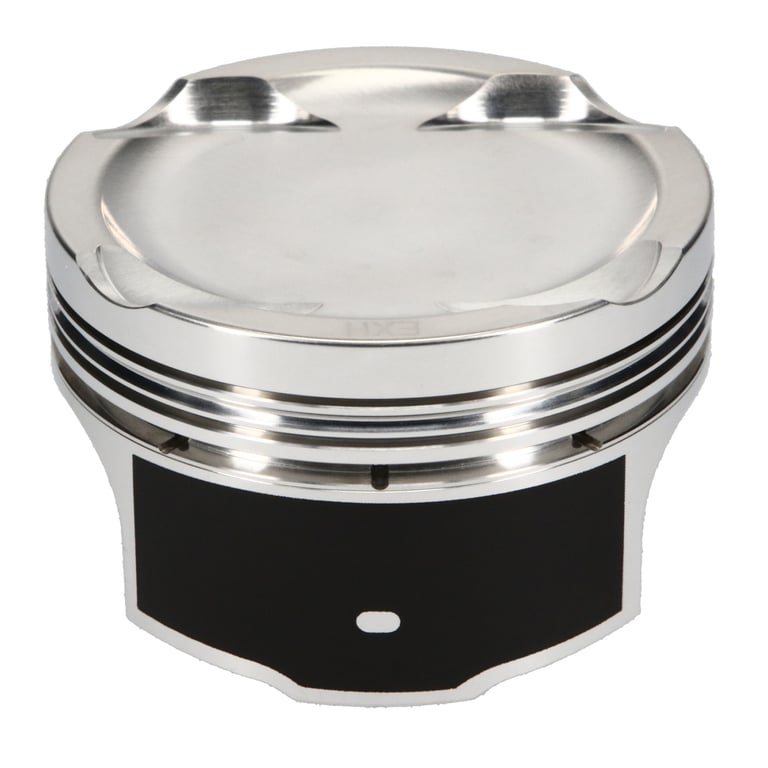

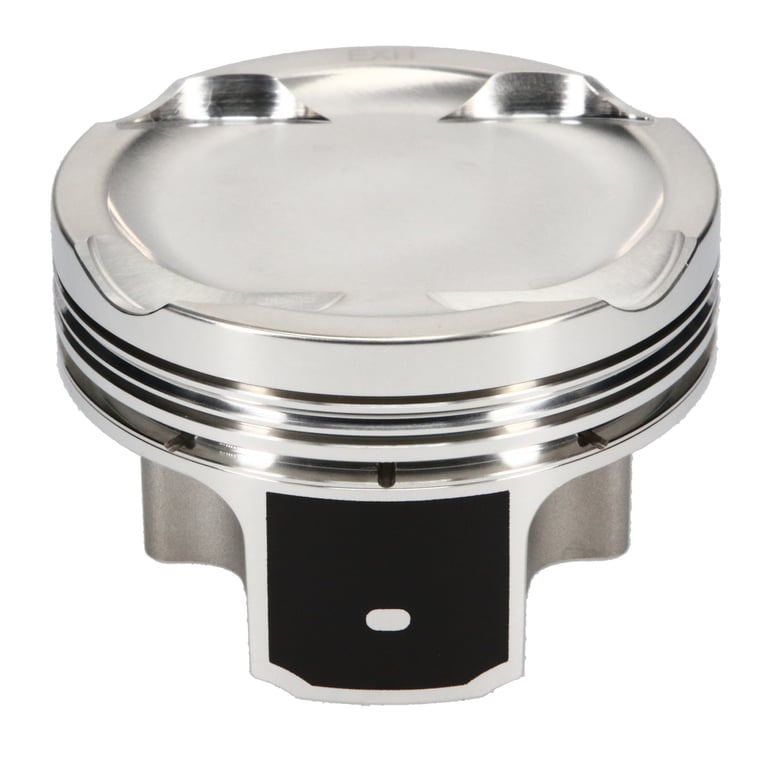

JE Pistons 297007 - MITSU EVO V11-IX KIT Set of 4 Pistons

Piston Set, 2618, Flat Top, 3.346 Bore, 1.367 CD, 0.866 Pin, Set of 4.

JE, Mitsubishi, 4G63 - 01-07 Evolution VII-IX - 22mm Pin, 3.346 in. Bore, 10.00:1, Flat Top, 4 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: 4G63
Bore Diameter: 85.00
Piston Head Type: Flat
Compression Height: 1.367
Piston Volume: -2.10
Piston Material: 2618
Piston Quantity: 4
Forging Type: FSR
Piston Average Weight: 312
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.111
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.866
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.150
Engine Detail: 4G63 2001-2007 Evo VII-IX / 22 mm Pin
Product Type: Engine Piston Kit
Product Market: Sport Compact
Add-On: JG1001-3346
Engine: 4G63 2001-2007 Evo VII-IX / 22 mm Pin
Make: Mitsubishi
Industry: Automotive
Engine Type: ICE
Stroke: 3.465
Oil Groove Width: 0.11100
2nd Groove Width: 0.04800
Top Groove Width: 0.04000
Intake Diameter: 1.500
Exhaust Angle: 20
Exhaust Diameter: 1.500
Exhaust Depth: .165
Intake Angle: 20
Intake Depth: .165
Piston To Wall Clearance: -0.004
