JE Pistons 281799 - 400SBC ALLPRO/GB2000 Set of 8 Pistons

JE Pistons  |  SKU: BHXG-281799
Sale price $1,15499 Regular price $1,27049

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

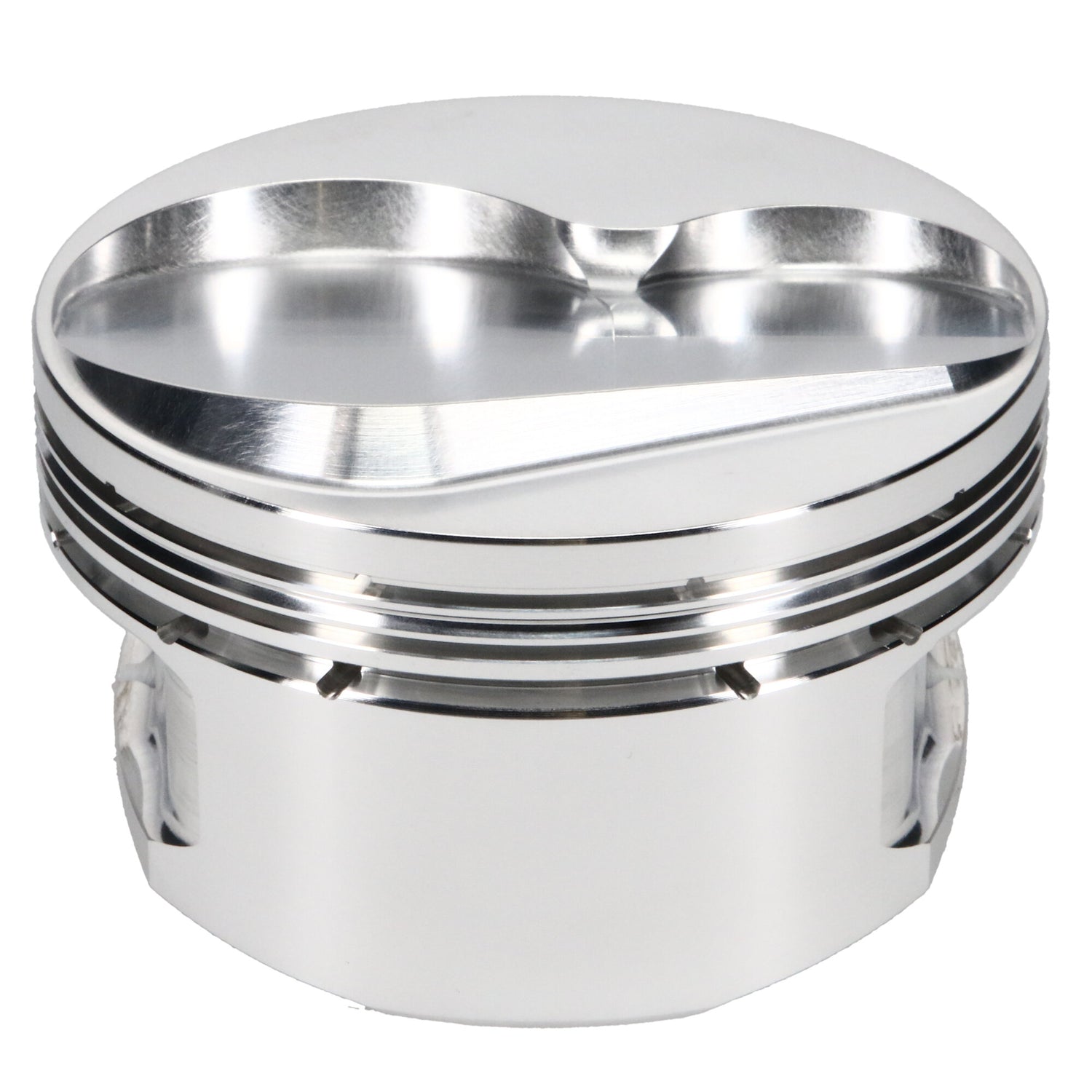

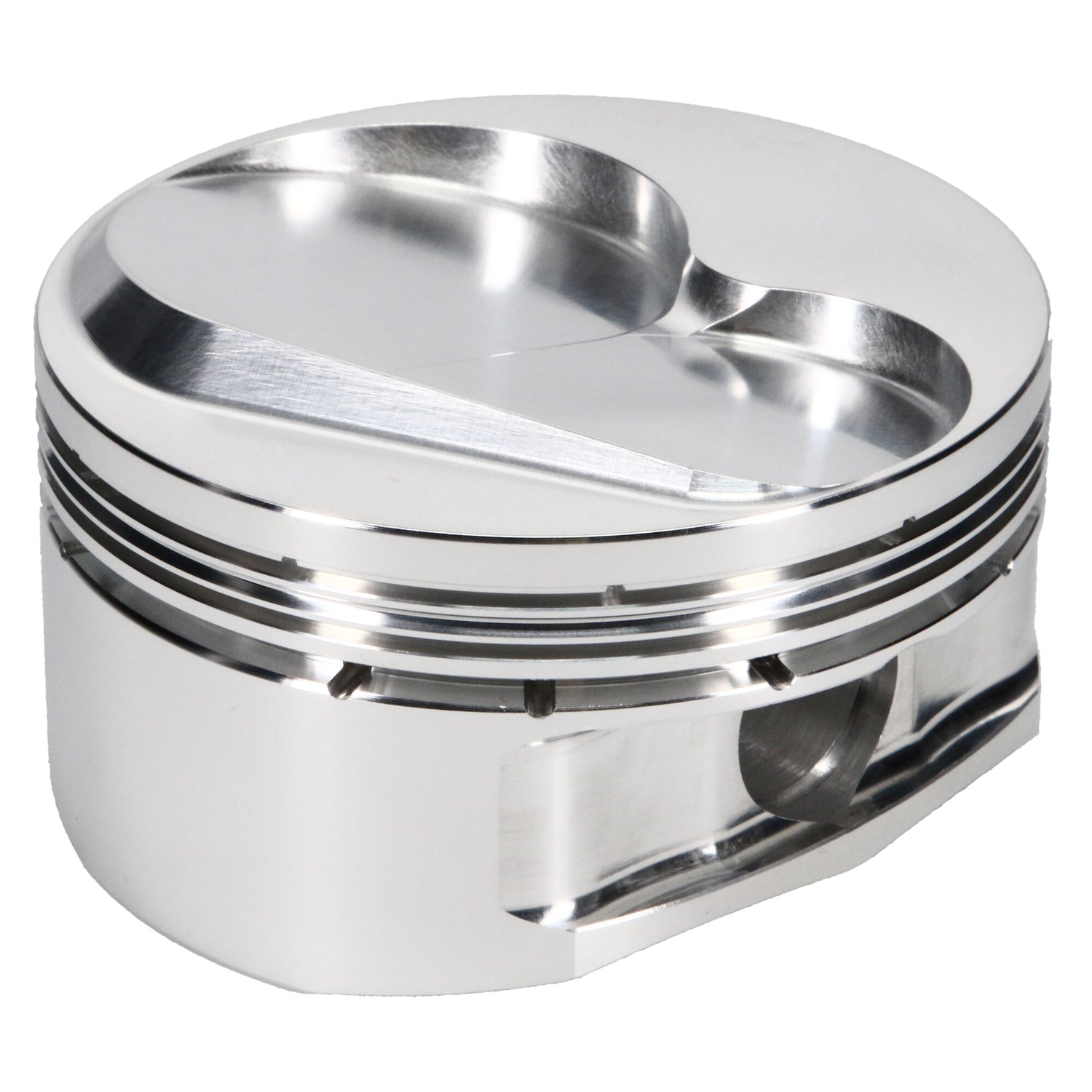

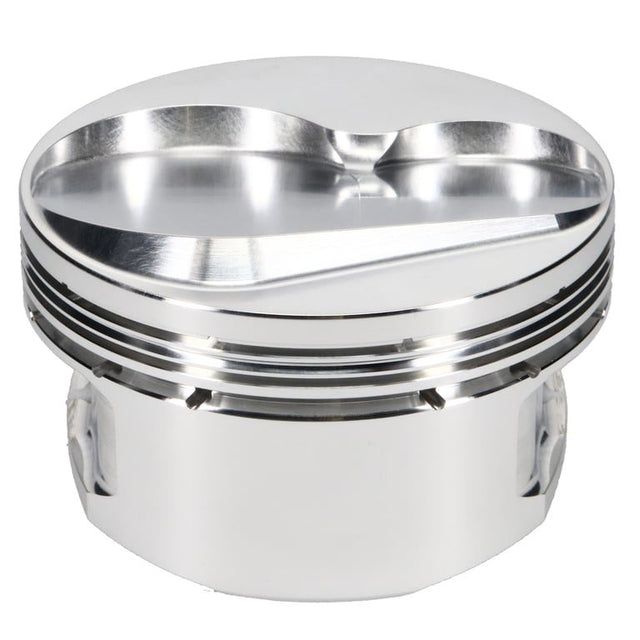

JE Pistons 281799 - 400SBC ALLPRO/GB2000 Set of 8 Pistons

Piston - Small Block Open Chamber Dome - Forged - 4.135 in Bore - 1.2 x 1.5 x 3.0 mm Ring Grooves - Minus 4.70 cc - Small Block Chevy - Set of 8

JE, Chevrolet, Small Block Chevrolet, 4.135 in. Bore, 1.250 CD, Dome, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: CHEVROLET 13 DEG
Bore Diameter: 4.135
Piston Head Type: Dome
Compression Height: 1.250
Piston Volume: -4.70
Piston Material: 2618
Piston Quantity: 8
Forging Type: Round
Piston Average Weight: 473
Ring Set Included: No
Top Compression Ring Thickness: 0.0475
Second Compression Ring Thickness: 0.0600
Oil Ring Thickness: 0.119
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Length: 2.750
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: J75008-4135-5
Engine: Small Block
Make: Chevrolet
Industry: Automotive
Engine Type: ICE
Stroke: 3.800
Oil Groove Width: 0.11900
2nd Groove Width: 0.06000
Top Groove Width: 0.04750
Intake Angle: 13
Exhaust Angle: 13
Exhaust Diameter: 1.750
Exhaust Depth: S
Intake Diameter: 2.310
Intake Depth: .320
Piston To Wall Clearance: -0.0045
