JE Pistons 274649 - PORSCHE 3.3L DM KIT Set of 6 Pistons

JE Pistons  |  SKU: BHXG-274649
Sale price $1,49999 Regular price $1,64999

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

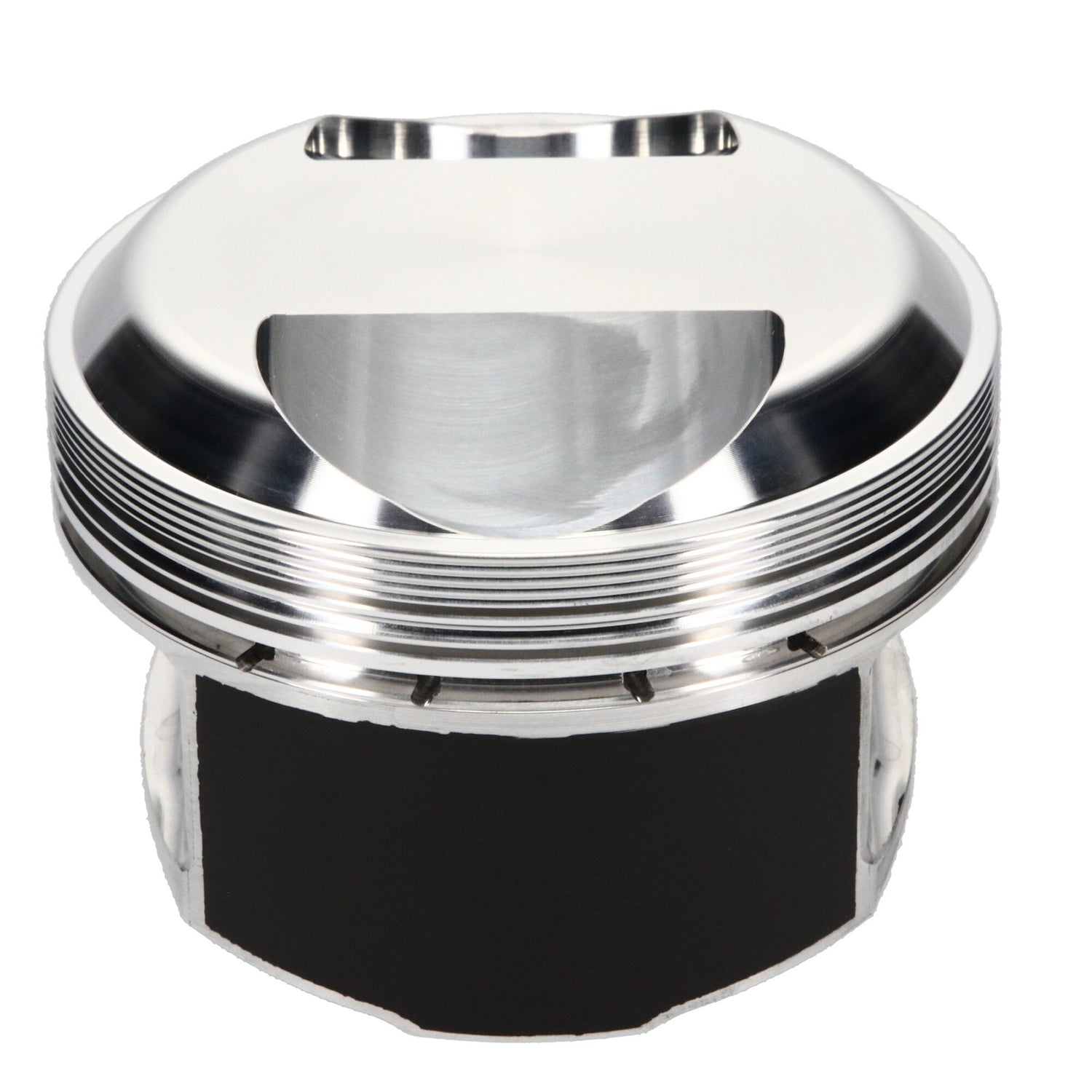

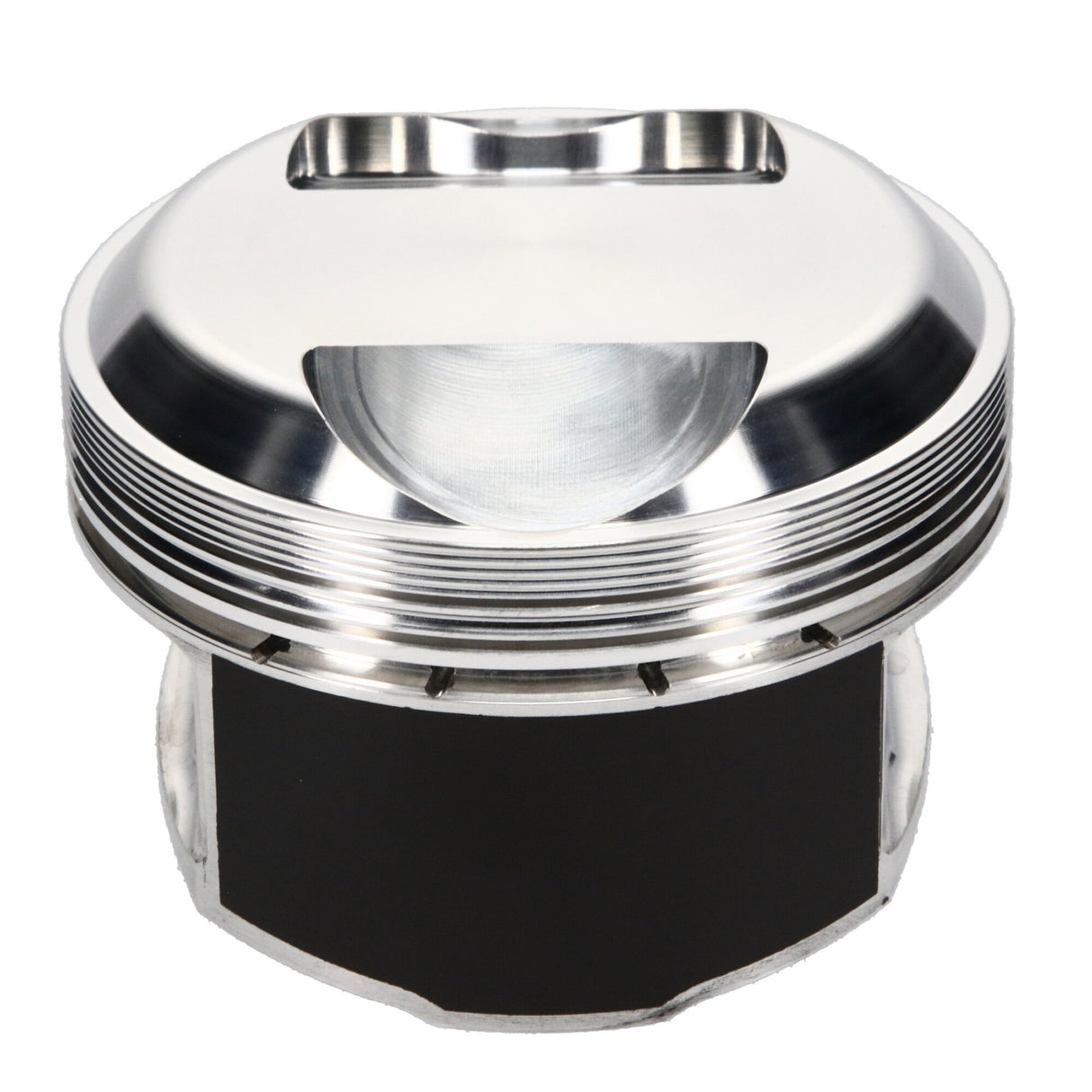

JE Pistons 274649 - PORSCHE 3.3L DM KIT Set of 6 Pistons

Piston Set, 2618, Dome, 3.858 Bore, 1.290 CD, 0.905 Pin, Set of 6.

JE, Porsche, Aircooled - 6 Cyl, 3.858 in. Bore, 8.50:1, Dome, 6 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: 3.3 Liter
Bore Diameter: 98.00
Piston Head Type: Dome
Compression Height: 1.290
Piston Volume: 22.80
Piston Material: 2618
Piston Quantity: 6
Forging Type: Round
Piston Average Weight: 442
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0600
Second Compression Ring Thickness: 0.0600
Oil Ring Thickness: 0.119
Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter: 0.905
Wrist Pin Length: 2.500
Wrist Pin Wall Thickness: 0.180
Product Type: Engine Piston Kit
Product Market: European
Add-On: J612U1-3858
Engine: 3.3L Aircooled
Make: Porsche
Industry: Automotive
Engine Type: ICE
Stroke: 2.929
Oil Groove Width: 0.11900
2nd Groove Width: 0.06000
Top Groove Width: 0.06000
Intake Angle: 11.5
Exhaust Angle: 10
Exhaust Diameter: 1.400
Exhaust Depth: .100
Intake Diameter: 1.625
Intake Depth: .110
Piston To Wall Clearance: -0.002
