JE Pistons 265092 - NASCAR CANADA CHRY Set of 8 Pistons

JE Pistons  |  SKU: BHXG-265092
Sale price $1,09699 Regular price $1,20669

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

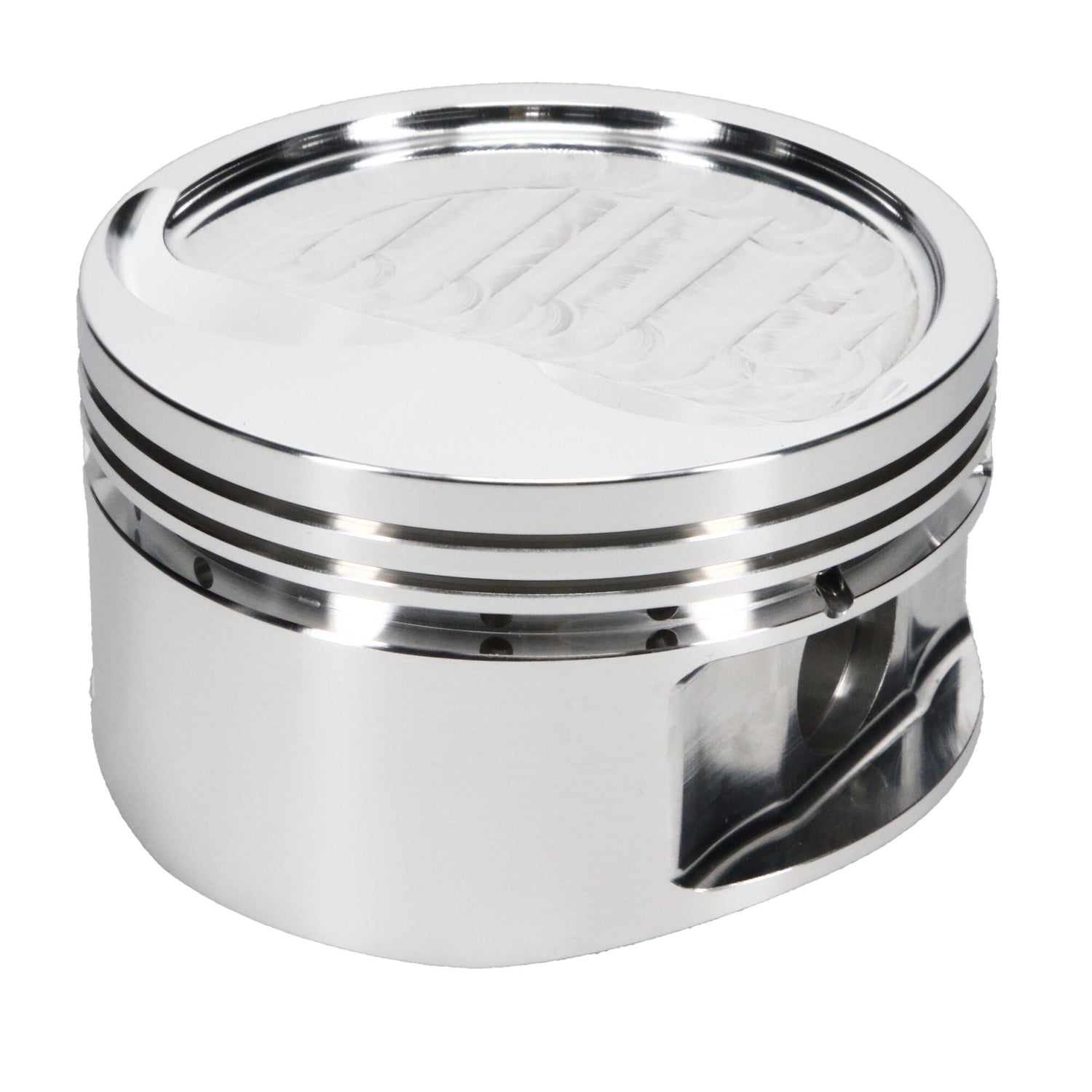

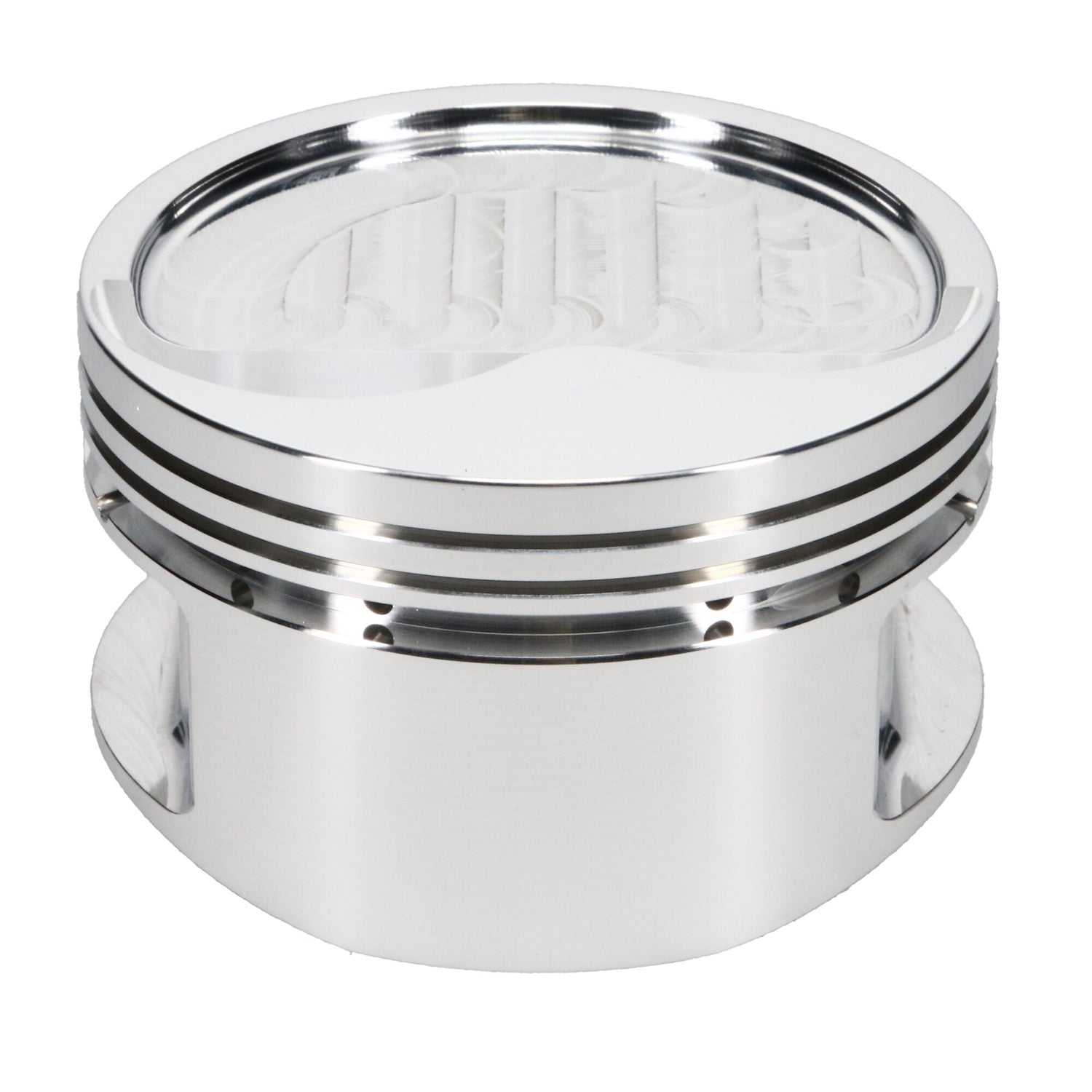

JE Pistons 265092 - NASCAR CANADA CHRY Set of 8 Pistons

Piston Set, 2618, Inv Dome/Dish, 4.030 Bore, 1.665 CD, 0.927 Pin Dia, Set of 8.

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Make: Chrysler
Industry: Automotive
Engine Type: ICE
Intake Depth: .300
Intake Diameter: 2.250
Intake Angle: 18
Exhaust Depth: S
Exhaust Diameter: 1.800
Exhaust Angle: 18
Stroke: 3.580
Top Groove Width: 0.06400
2nd Groove Width: 0.06400
Oil Groove Width: 0.18800
Piston To Wall Clearance: -0.004999
Piston Series: JE Pistons
Bore Diameter: 4.030
Piston Head Type: Inv Dome/Dish
Compression Height: 1.665
Piston Volume: -11.00
Piston Material: 2618
Piston Quantity: 8
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Length: 2.500
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: 927-2500-15-51S
Engine: Small Block
