JE Pistons 264041 - LS1 -10CC INV DOME Set of 8 Pistons

JE Pistons  |  SKU: BHXG-264041
Sale price $94999 Regular price $1,04499

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

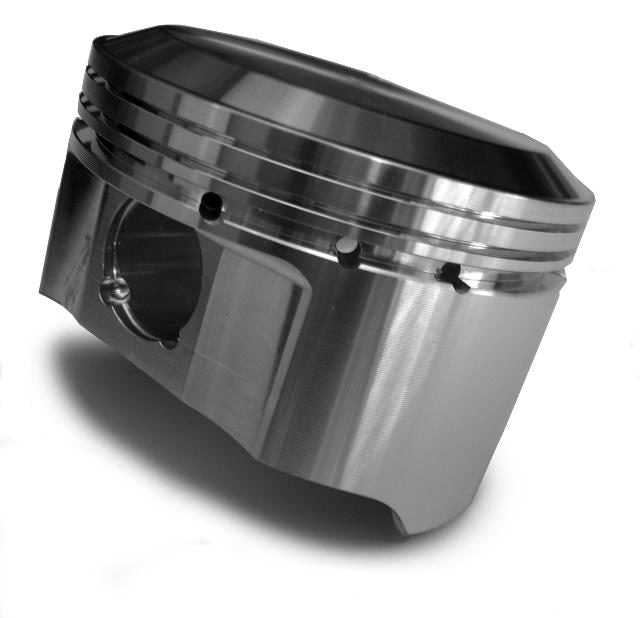

JE Pistons 264041 - LS1 -10CC INV DOME Set of 8 Pistons

Piston Set, 2618, Inv Dome/Dish, 3.905 Bore, 1.115 CD, 0.927 Pin, Set of 8.

JE, Chevrolet, LS Gen III/IV, 3.905 in. Bore, 1.115 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

    • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
    • Designed specifically for each engine and use application to provide optimized performance durability
    • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
    • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
    • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
    • Made 100% in the USA
Add-On: J68008-3900-3
Add-On: 927-2250-15-51C
Add-On: 927-073-MW
Bore Diameter - Web: 3.905 IN
Bore Diameter: 3.905
Category Hierarchy: Auto>JE Pistons>Piston Kits
Compression Height: 1.115
Cylinder Head: LSX/L92 12 DEG
Engine - Web: LS Gen III/IV
Engine Type: ICE
Engine: LS Gen III/IV
Forging Type: FSR
Industry: Automotive
Make - Web: Chevrolet
Make: Chevrolet
Oil Ring Thickness: 0.149
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 382
Piston Head Type: Dish
Piston Material: 2618
Piston Quantity: 8
Piston Series: JE Pistons
Piston Volume: -10.00
Product Market: Domestic
Product Type: Engine Piston Kit
Ring Set Included: No
Second Compression Ring Thickness: 0.0600
Title - Web: JE Pistons Chevrolet LS Gen III/IV Piston Kit - 3.905 in. Bore - 1.115 in. CH, -10.00 CC
Top Compression Ring Thickness: 0.0600
Wrist Pin Length: 2.250
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Wall Thickness: 0.150
