JE Pistons 257984 - BBC FT HD/BLOWN Set of 8 Pistons

JE Pistons  |  SKU: BHXG-257984
Sale price $1,07699 Regular price $1,18469

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

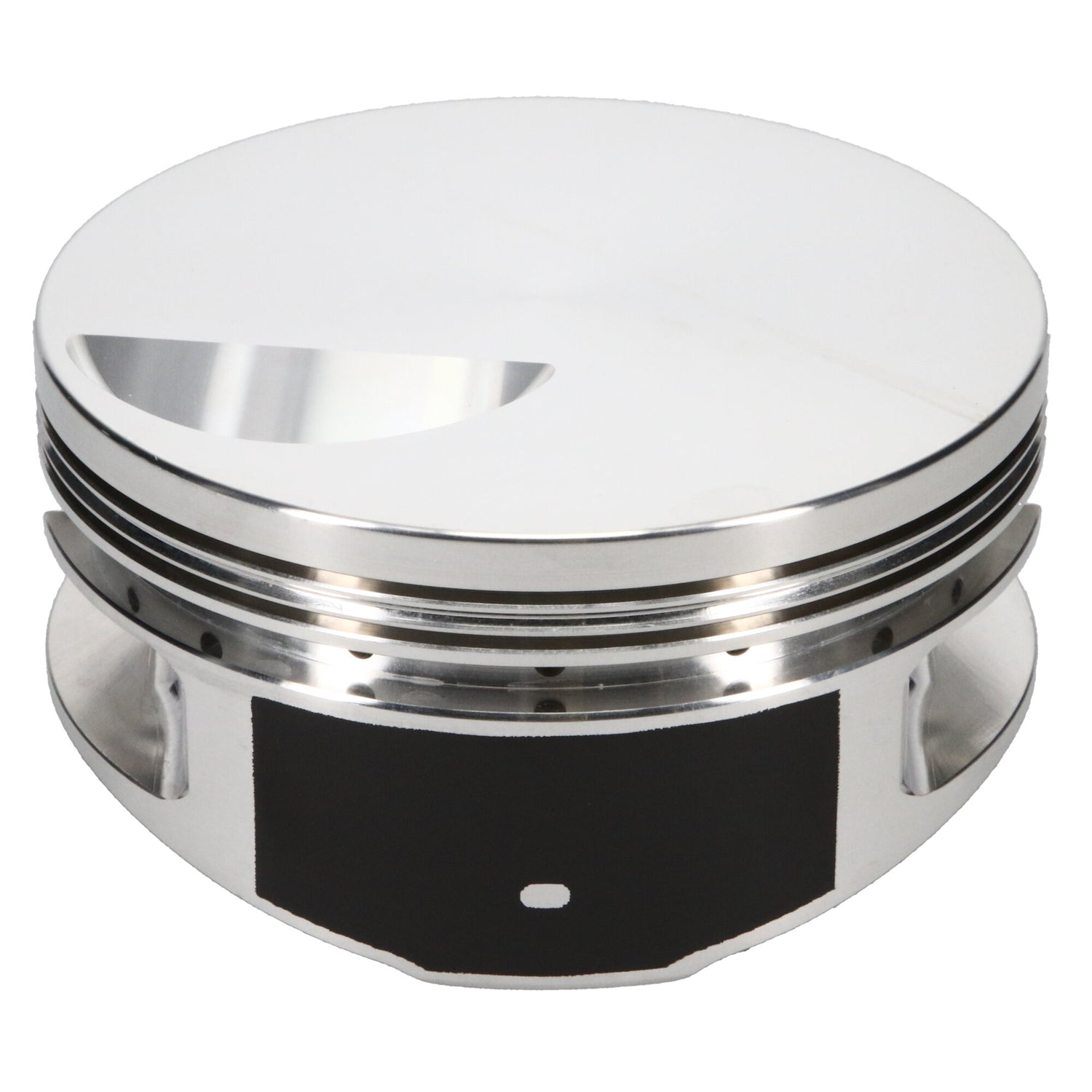

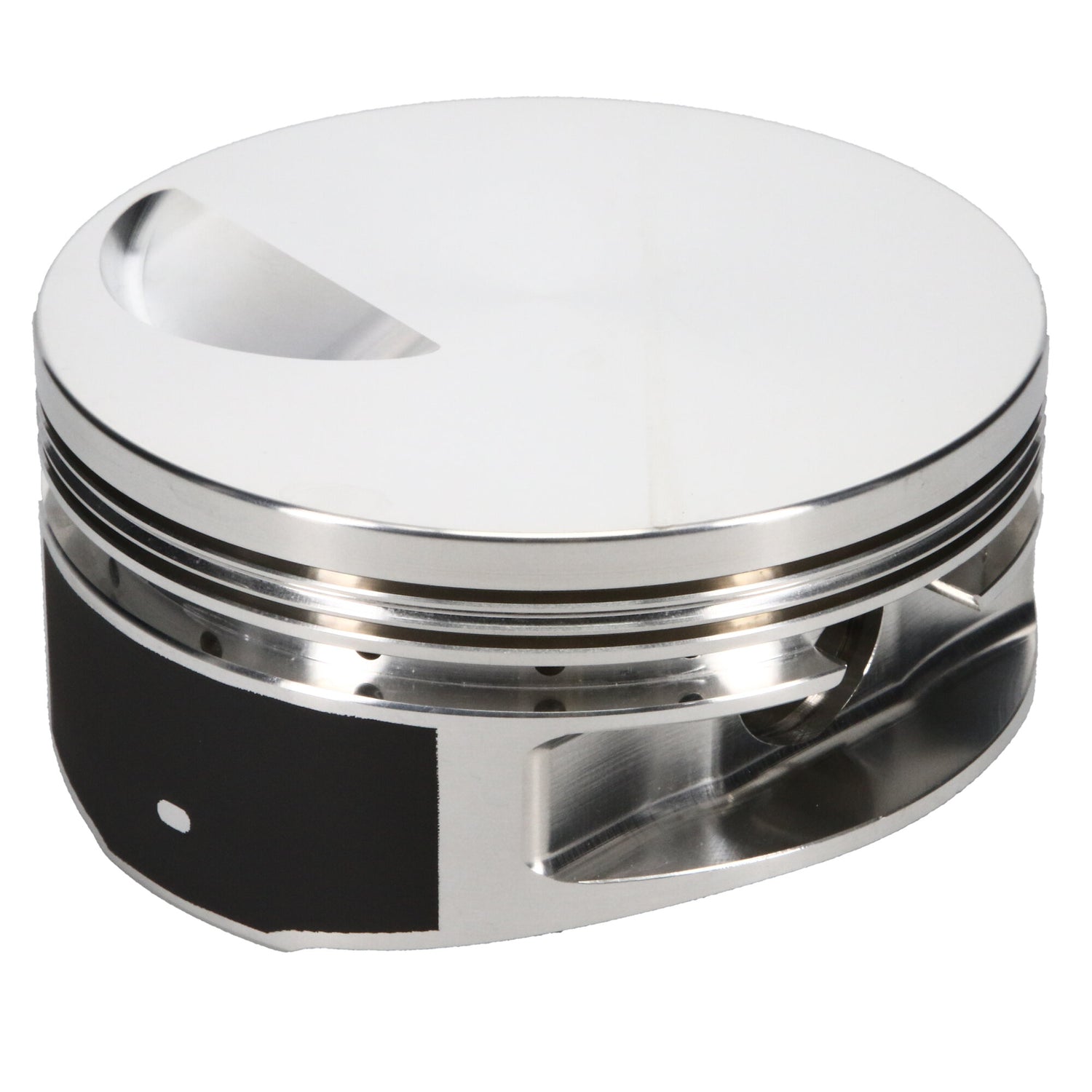

JE Pistons 257984 - BBC FT HD/BLOWN Set of 8 Pistons

Piston - Big Block Flat Top - Forged - Flat Top - 4.500 in Bore - 1.645 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Minus 3.00 cc - Big Block Chevy - Set of 8

4.500 in. Bore - 1.645 CD - (-3.0 cc) - 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.990
Wrist Pin Length: 2.930
Wrist Pin Wall Thickness: 0.180
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: J100F8-4500-5
Engine: Big Block
Make: Chevrolet
Industry: Automotive
Engine Type: ICE
Bore Diameter - Web: 4.500 IN
Piston Series: JE Pistons
Piston Head Type: Flat
Compression Height: 1.645
Piston Volume: -3.00
Piston Material: 2618
Cylinder Head: OPEN CHAMBER
Bore Diameter: 4.500
Piston Quantity: 8
Forging Type: Round
Piston Average Weight: 696
Ring Set Included: No
Top Compression Ring Thickness: 0.0640
Second Compression Ring Thickness: 0.0640
Oil Ring Thickness: 0.188
