JE Pistons 243017 - LS1 SBC 15DEG FT Set of 8 Pistons

JE Pistons  |  SKU: BHXG-243017
Sale price $98999 Regular price $1,08899

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

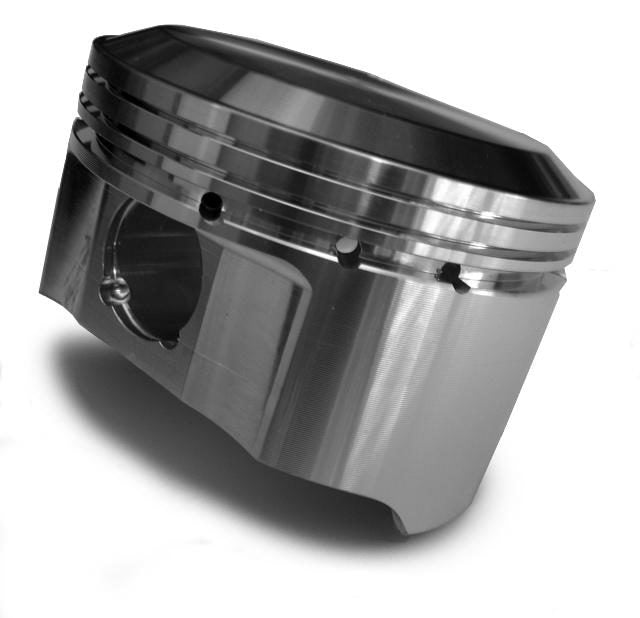

JE Pistons 243017 - LS1 SBC 15DEG FT Set of 8 Pistons

Bore Diameter 4.03, 2618, Flat Top Piston Kit, Set of 8

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Patented Dual Velocity Gas Ports combine the benefits of traditional gas ports, reducing ring flutter and movement while optimizing fuel efficiency and power output?without the risk of carbon build-up
  • Made 100% in the USA
Product Type: Engine Piston Kit
Bore Diameter: 4.030
Piston Material: 2618
Engine Type: ICE
Piston Average Weight: 410
Forging Type: FSR
Wrist Pin Outer Diameter: .927
Piston Head Type: Flat Top
Piston Volume: -3.5
Industry: Auto
Wrist Pin Length: 2.250
Cylinder Head: CHEVROLET SB 62
Compression Ratio Actual: 11.4
Piston Series: JE Pistons
Product Market: Auto
Intake Depth: .220
Intake Diameter: 2.265
Intake Angle: 15
Exhaust Depth: S
Exhaust Diameter: 1.870
Exhaust Angle: 15
Stroke: 4.000
Top Groove Width: 0.06000
2nd Groove Width: 0.06000
Oil Groove Width: 0.15000
Piston To Wall Clearance: -0.0055
