JE Pistons 232452 - 440 MOPAR DISH Set of 8 Pistons

JE Pistons  |  SKU: BHXG-232452
Sale price $1,17699 Regular price $1,29469

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

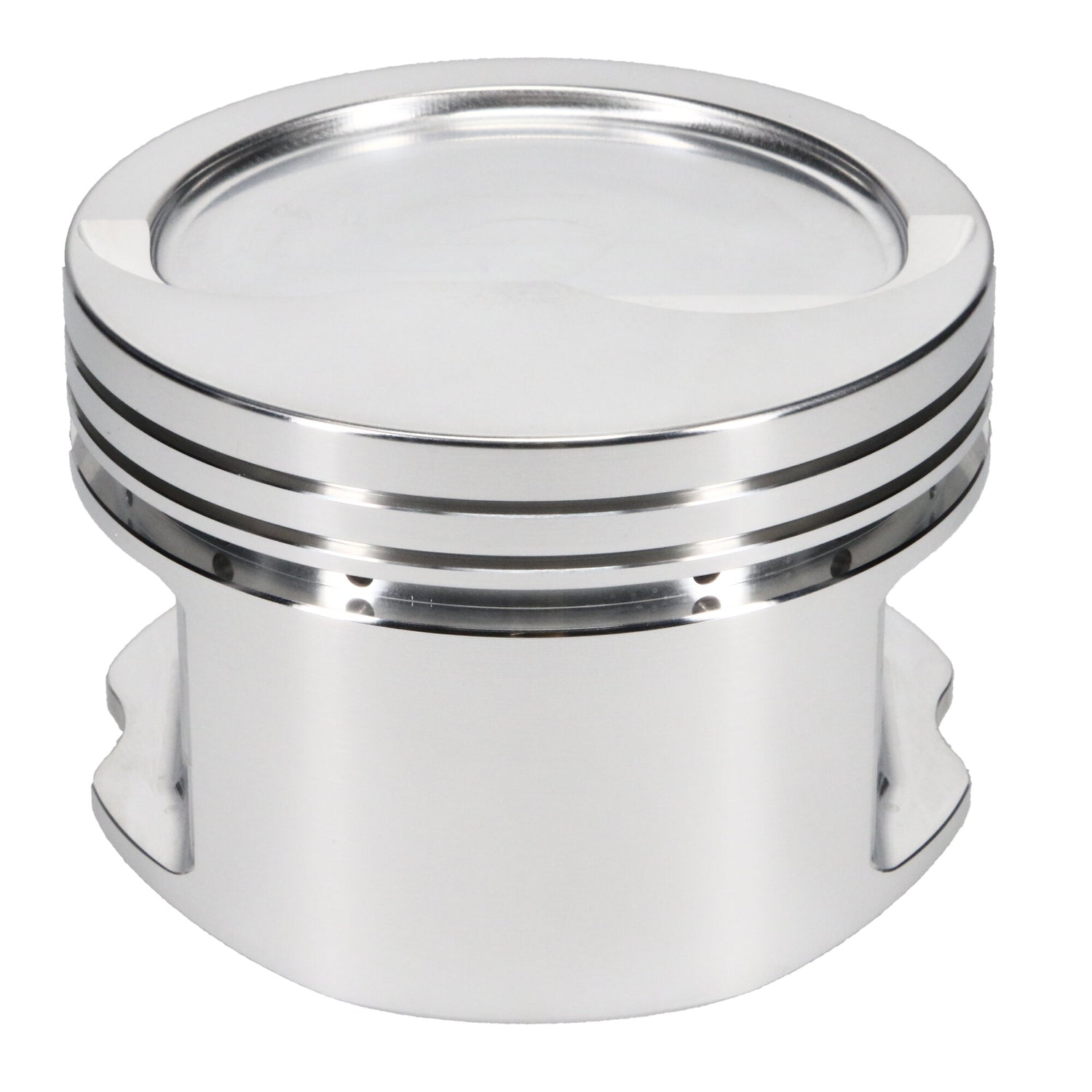

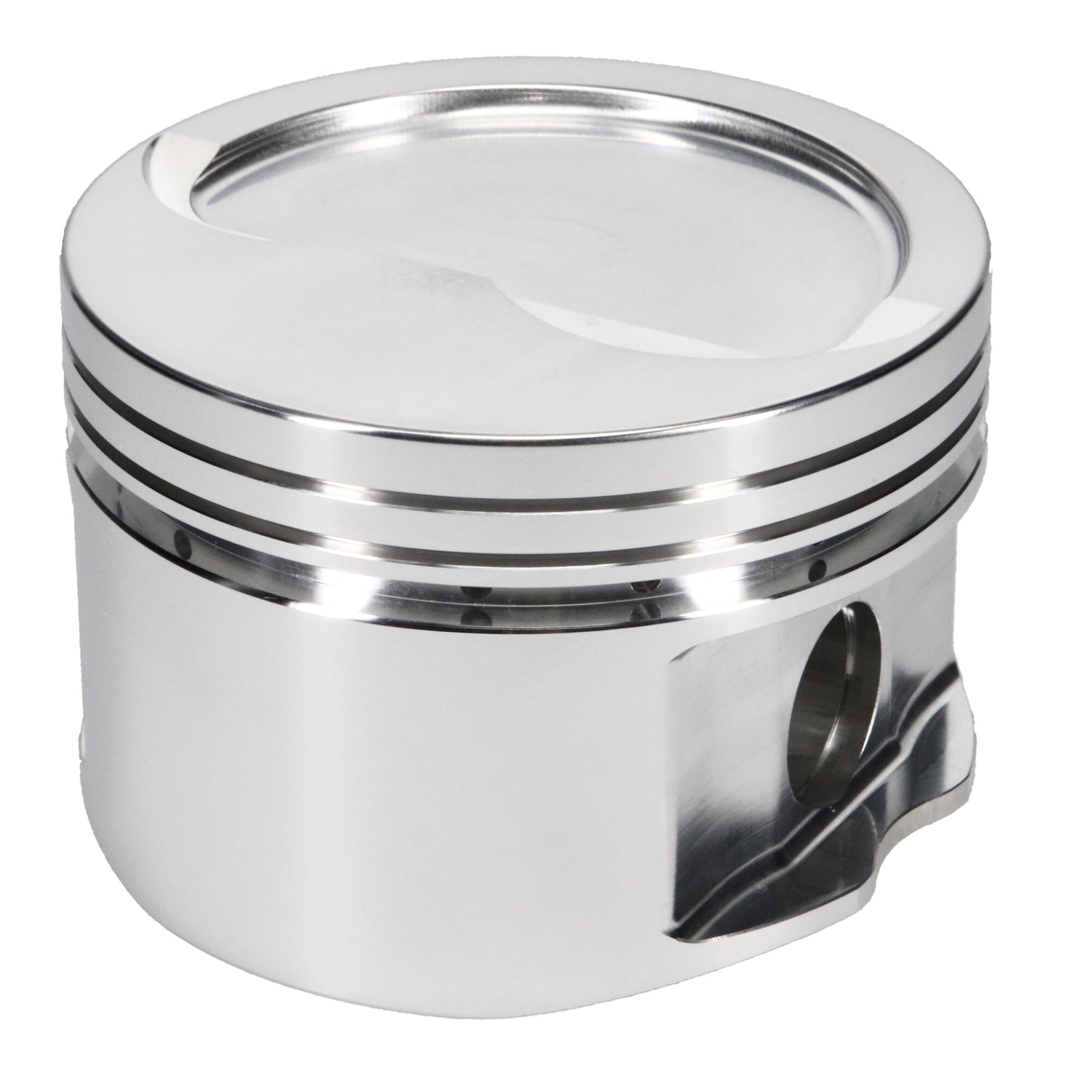

JE Pistons 232452 - 440 MOPAR DISH Set of 8 Pistons

Piston Set, 2618, Inv Dome/Dish, 4.350 Bore, 1.858 CD, 0.990 Pin, Set of 8.

JE, Mopar, Big Block Chrysler, 4.350 in. Bore, 1.858 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: 440 WEDGE
Bore Diameter: 4.350
Piston Head Type: Dish
Compression Height: 1.858
Piston Volume: -28.90
Piston Material: 2618
Piston Quantity: 8
Forging Type: Round
Piston Average Weight: 714
Ring Set Included: No
Top Compression Ring Thickness: 0.0640
Second Compression Ring Thickness: 0.0640
Oil Ring Thickness: 0.188
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.990
Wrist Pin Length: 2.930
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: J10008-4350-5
Engine: Big Block
Make: Mopar
Industry: Automotive
Engine Type: ICE
Stroke: 4.150
Oil Groove Width: 0.18800
2nd Groove Width: 0.06400
Top Groove Width: 0.06400
Intake Diameter: 2.400
Exhaust Angle: 15
Exhaust Depth: S
Intake Angle: 15
Intake Depth: .240
Piston To Wall Clearance: -0.004999
