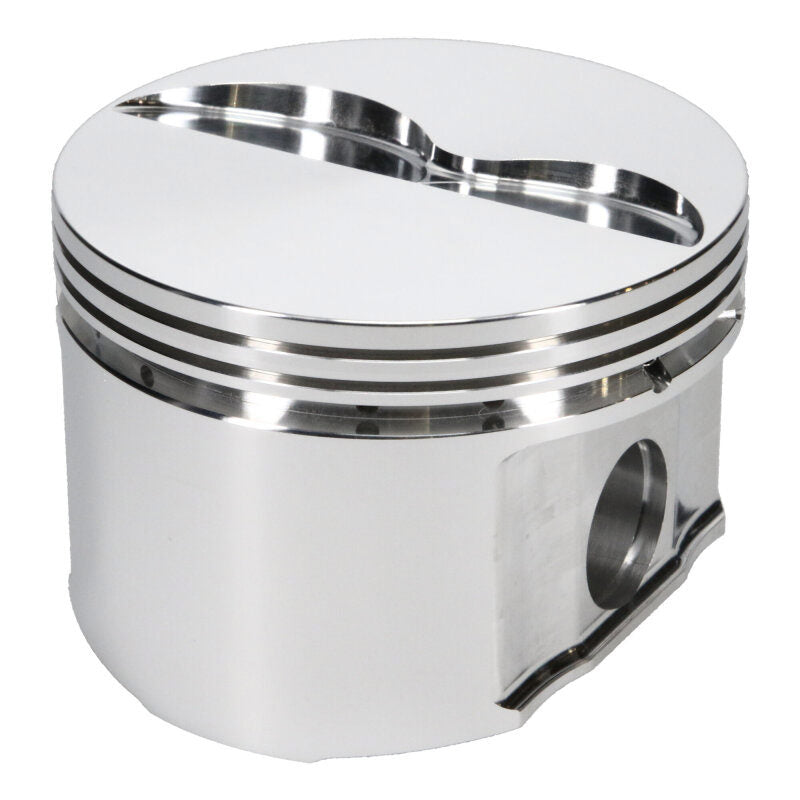

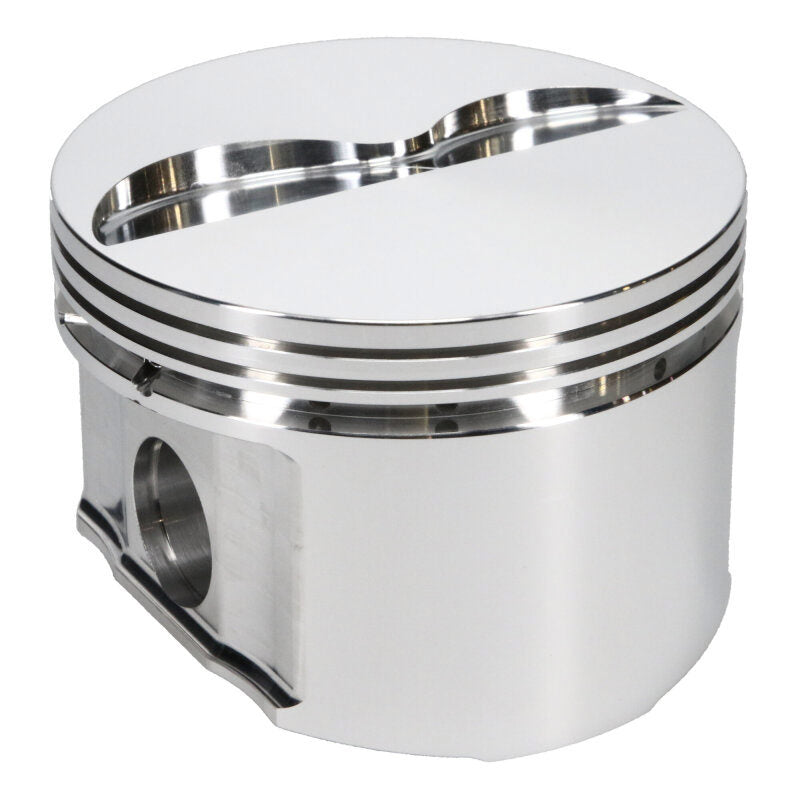

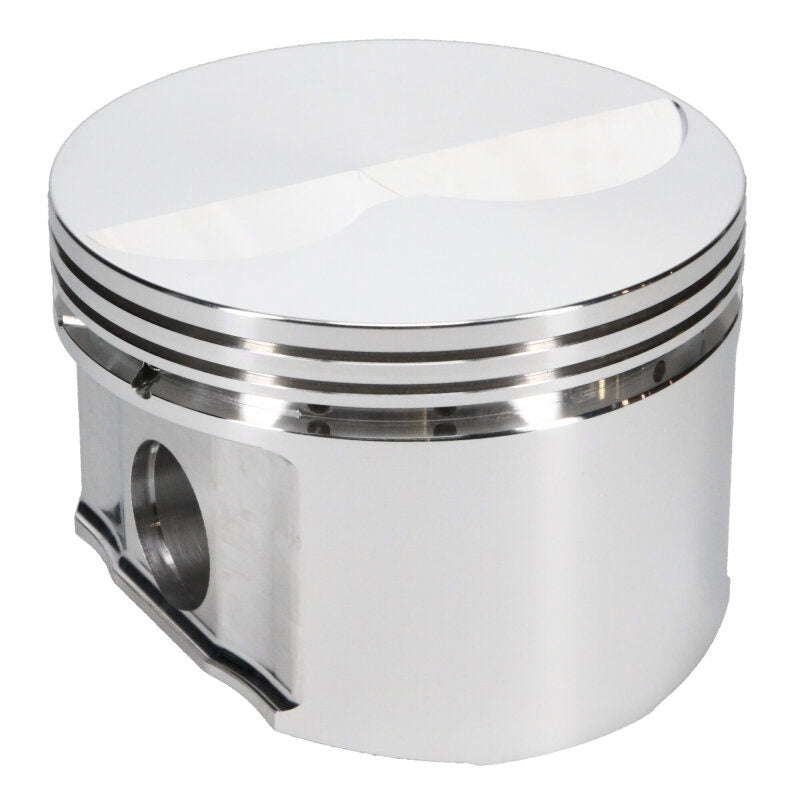

JE Pistons 213460 - 400 MOPAR FT -6CC Set of 8 Pistons

JE Pistons  |  SKU: BHXG-213460
Sale price $1,09699 Regular price $1,20669

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

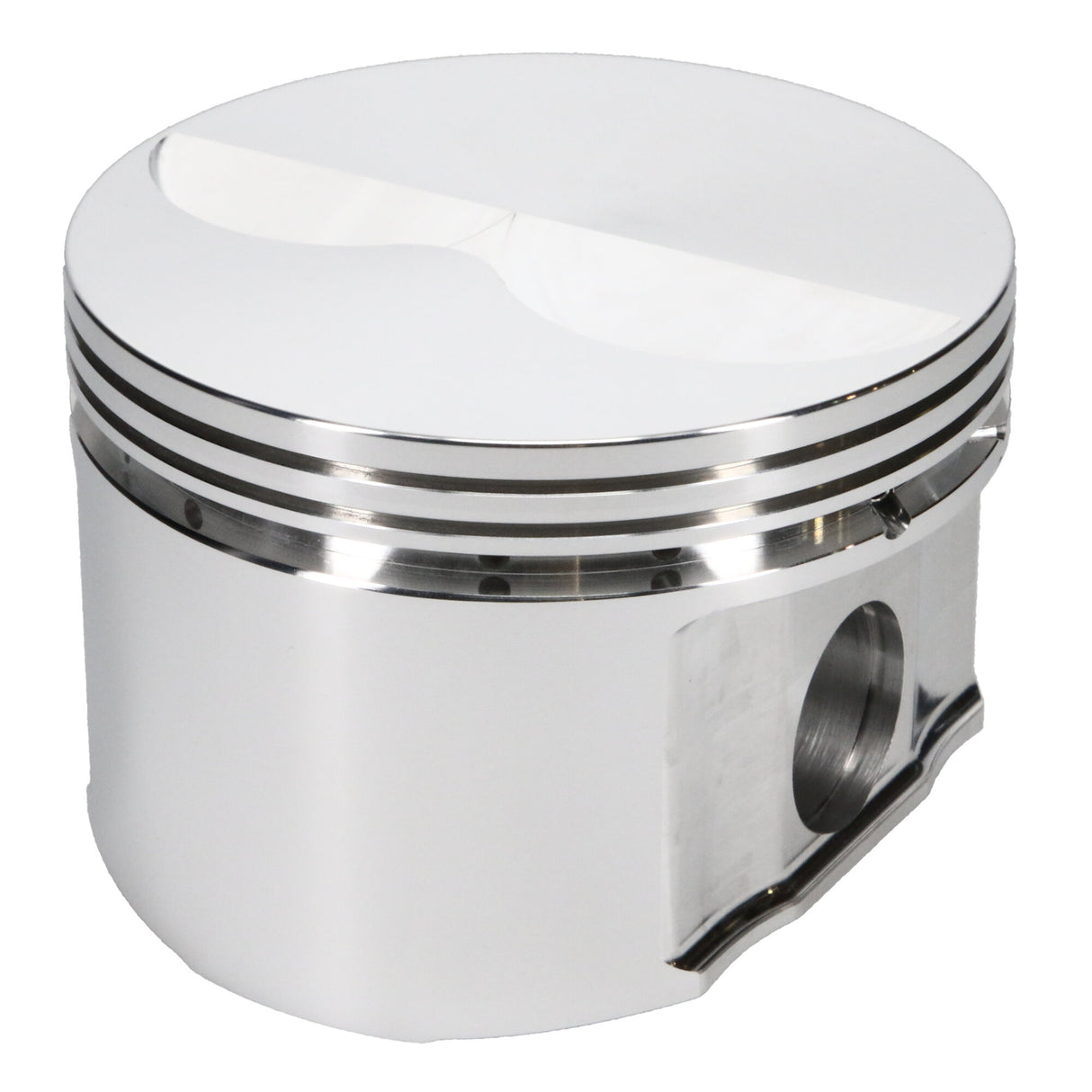

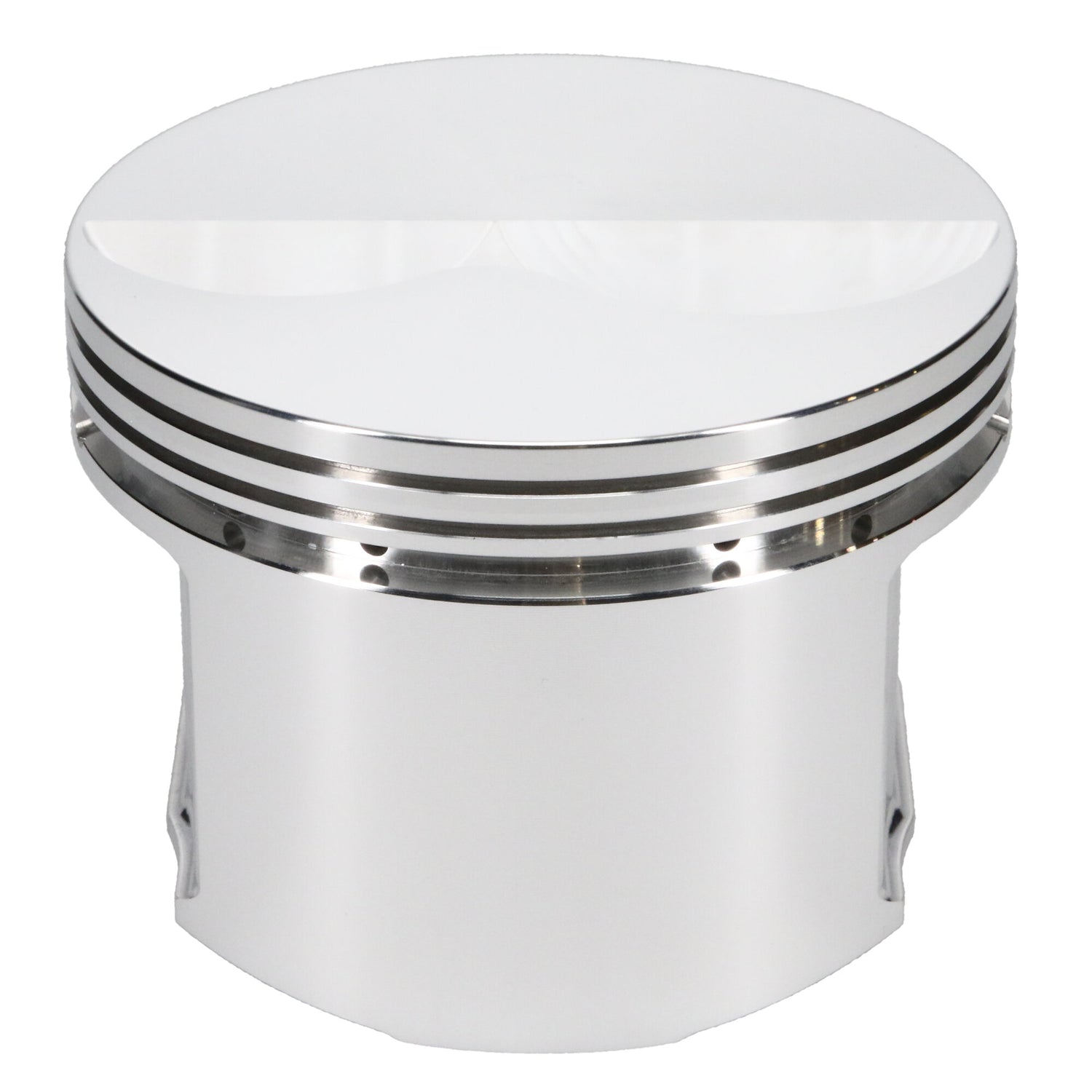

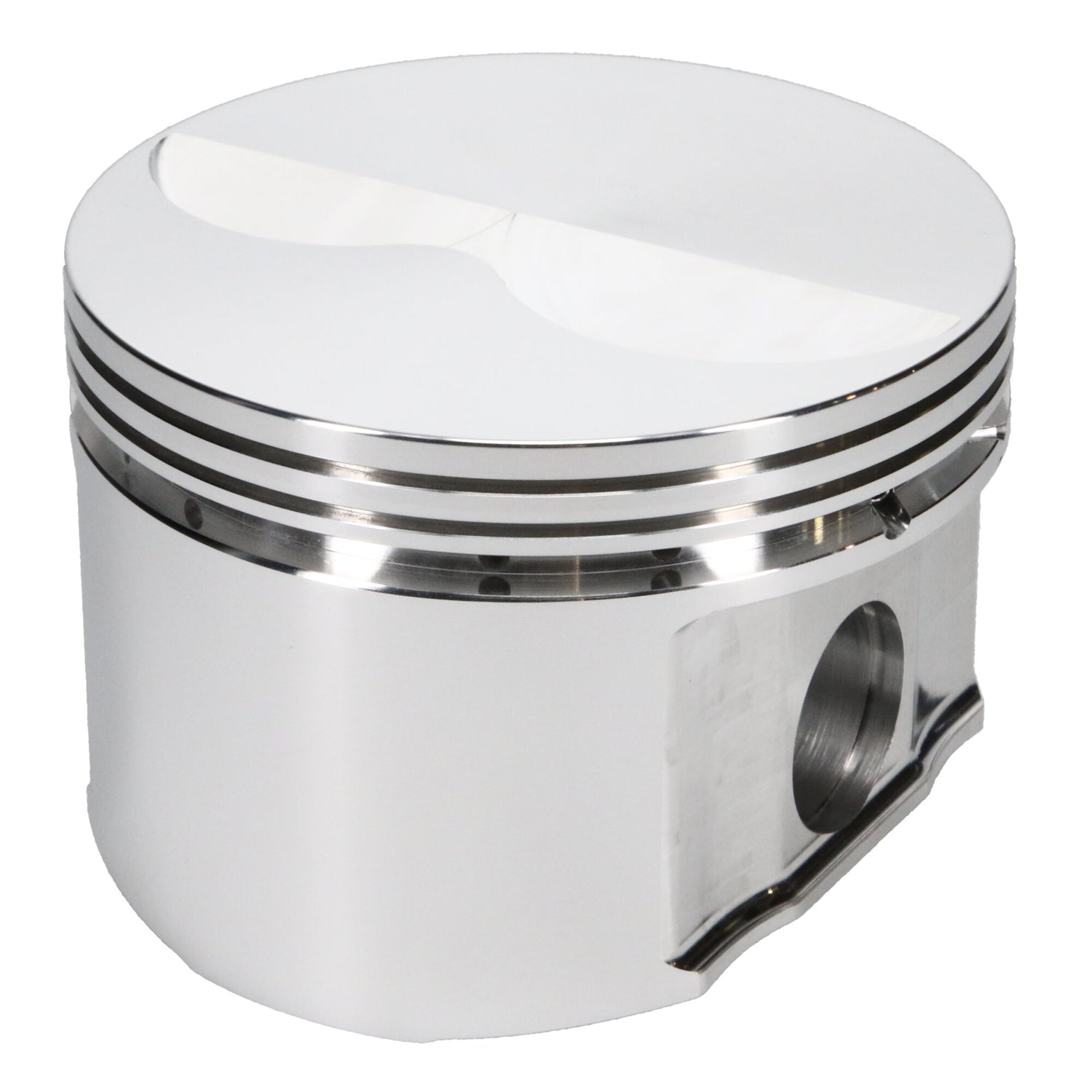

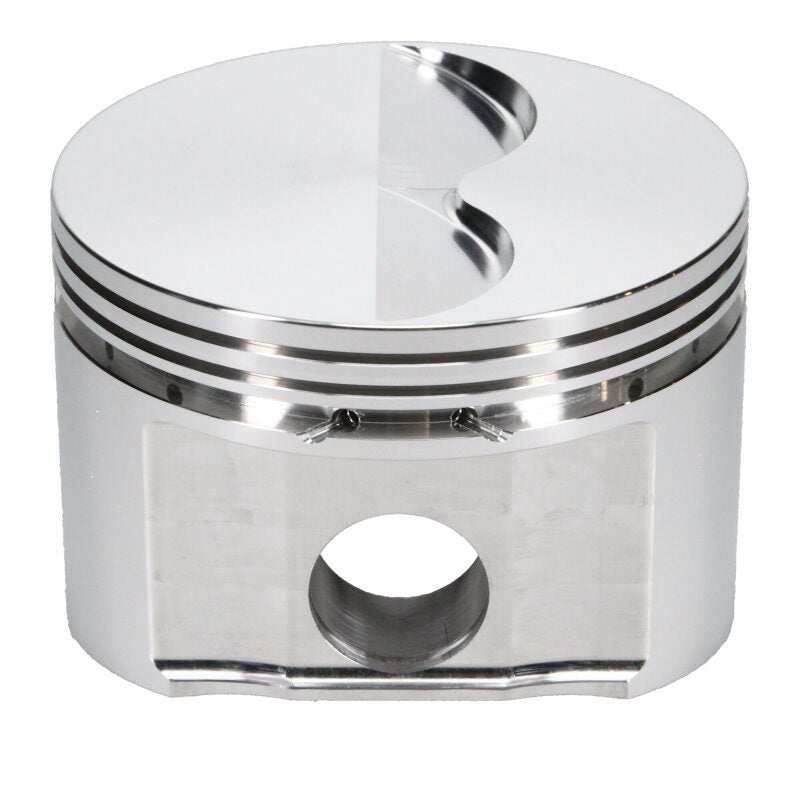

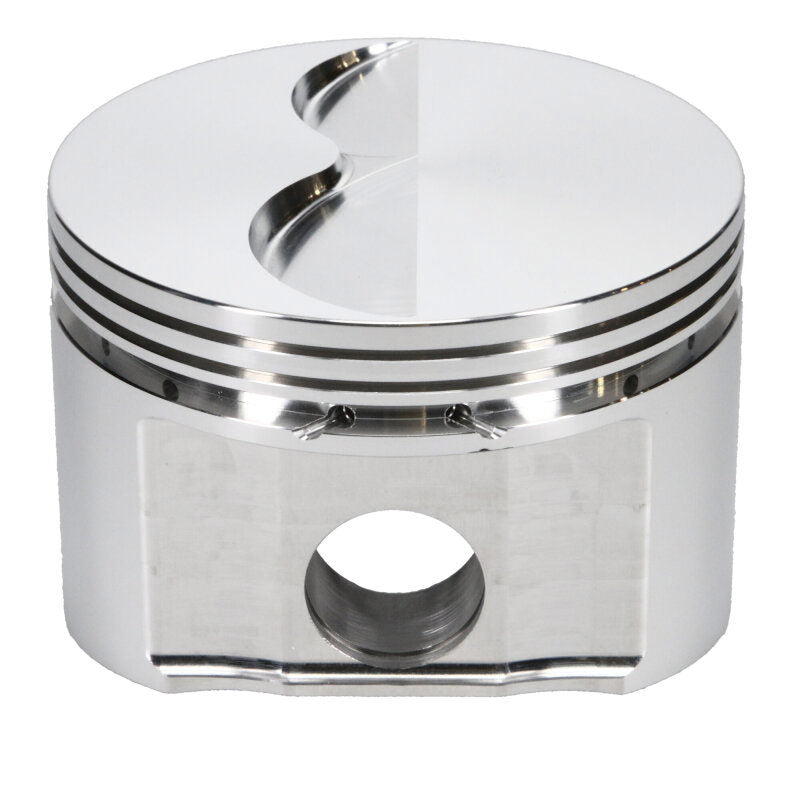

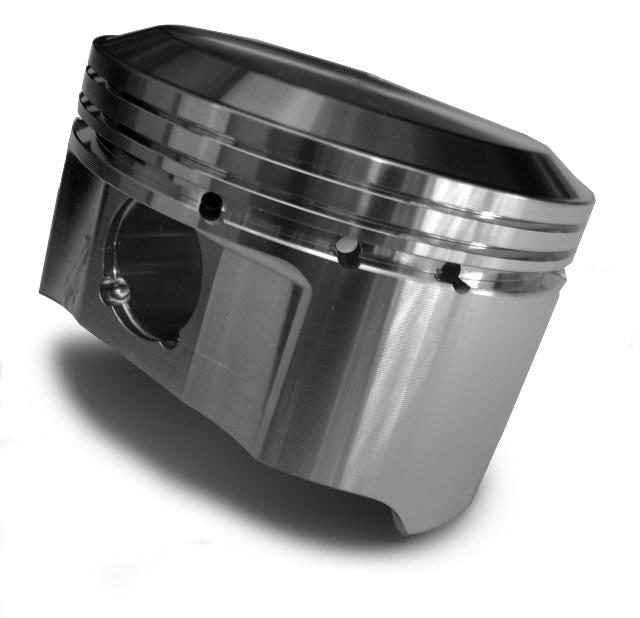

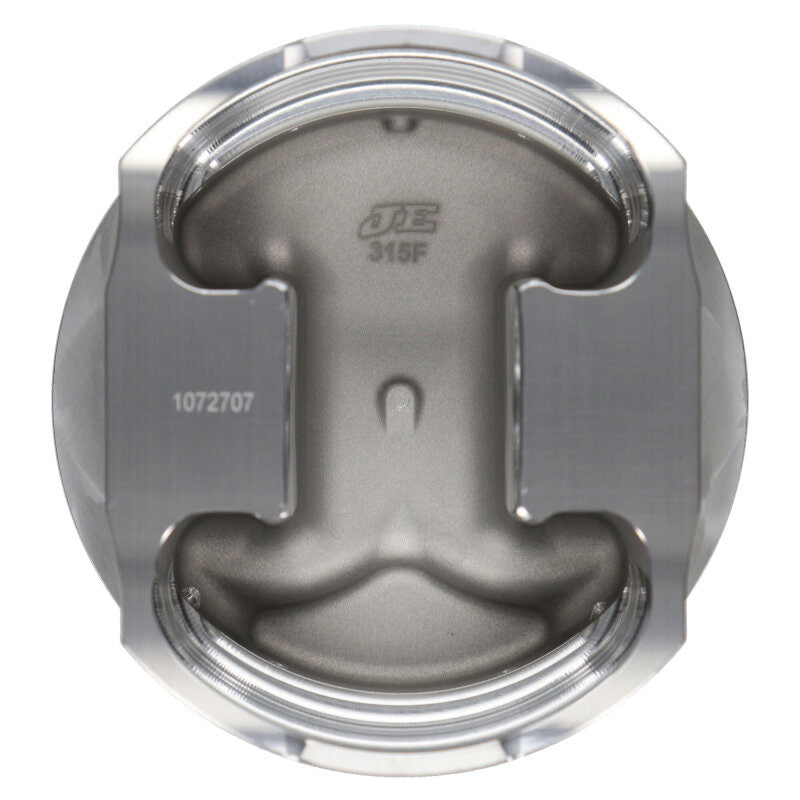

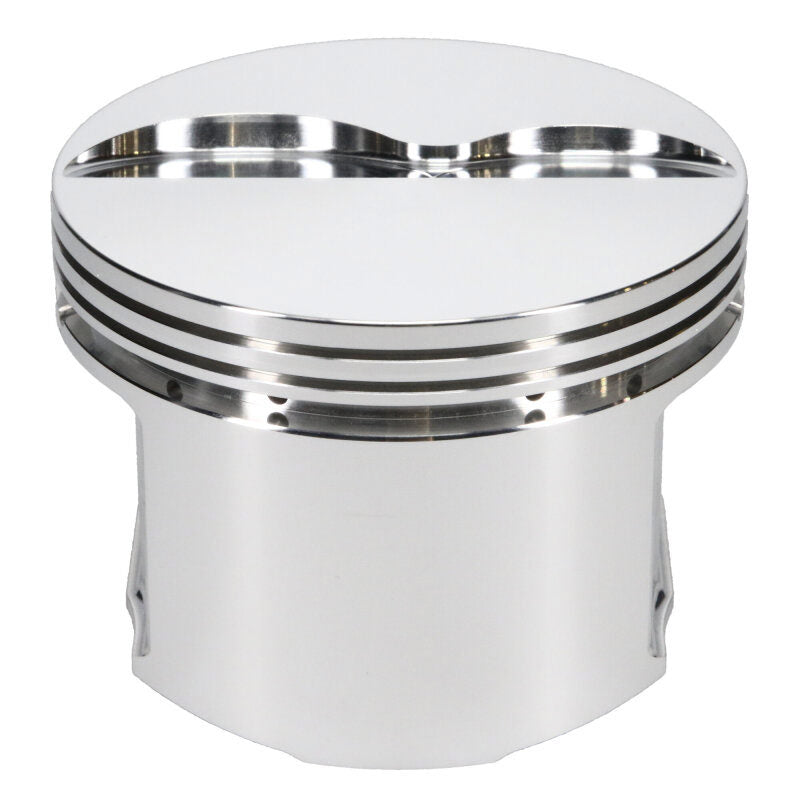

JE Pistons 213460 - 400 MOPAR FT -6CC Set of 8 Pistons

Piston Set, 2618, Flat Top, 4.375 Bore, 1.113 CD, 0.990 Pin, Set of 8.

JE, Mopar, Big Block Chrysler, 4.375 in. Bore, 1.113 CD, Flat Top, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Piston Quantity: 8
Forging Type: Round
Piston Average Weight: 481
Ring Set Included: No
Top Compression Ring Thickness: 0.0640
Second Compression Ring Thickness: 0.0640
Oil Ring Thickness: 0.218
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.990
Wrist Pin Length: 2.930
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: J10008-4375-5
Engine: Big Block
Make: Mopar
Industry: Automotive
Engine Type: ICE
Stroke: 3.750
Piston To Wall Clearance: -0.0045
Oil Groove Width: 0.21800
2nd Groove Width: 0.06400
Top Groove Width: 0.06400
Intake Angle: 15
Exhaust Angle: 15
Exhaust Diameter: 2.003
Exhaust Depth: S
Intake Diameter: 2.400
Intake Depth: .240
Oil Rail Support Required. Part Number:: 4375-193
Piston Series: JE Pistons
Cylinder Head: 440 WEDGE
Bore Diameter: 4.375
Piston Head Type: Flat
Compression Height: 1.113
Piston Volume: -3.00
Piston Material: 2618
