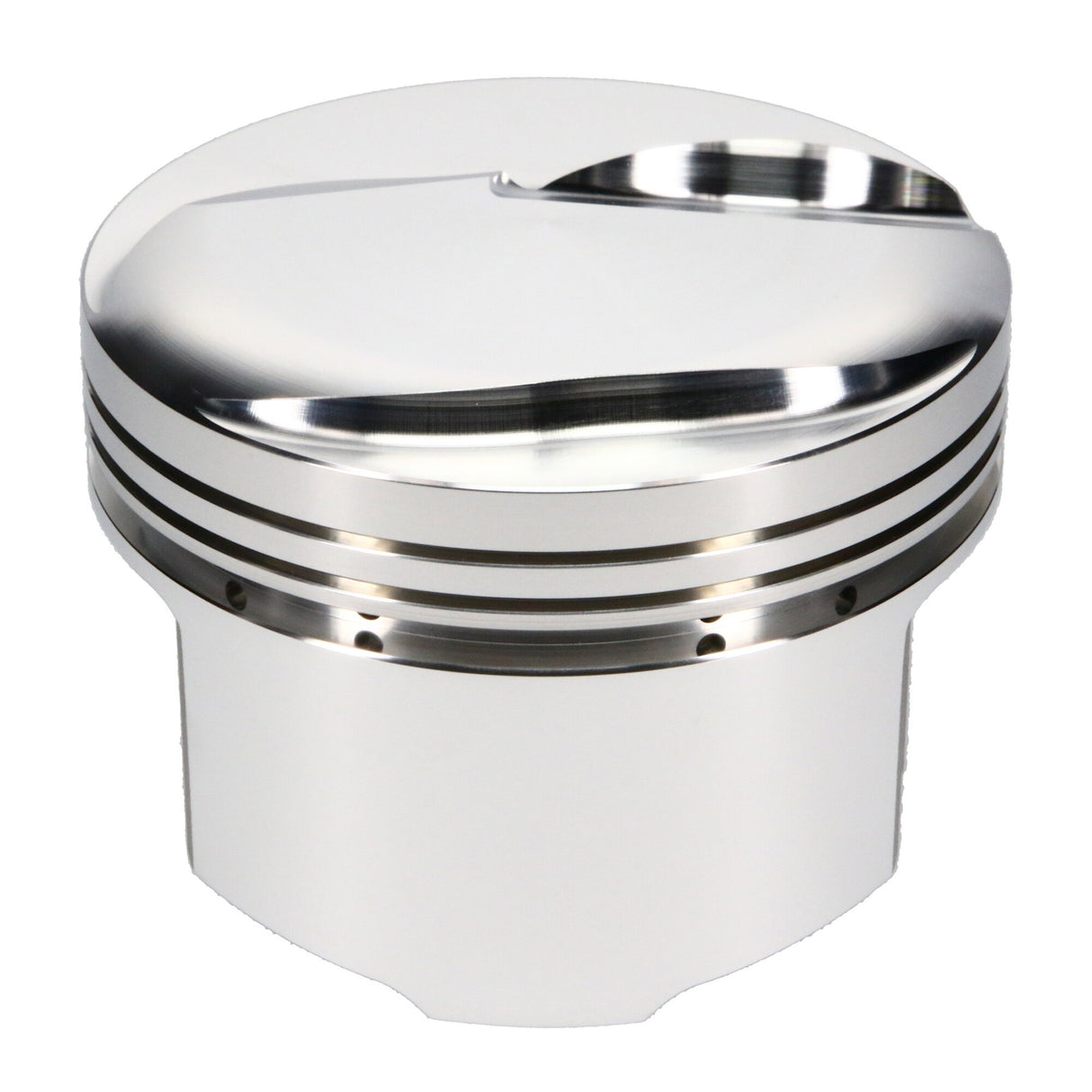

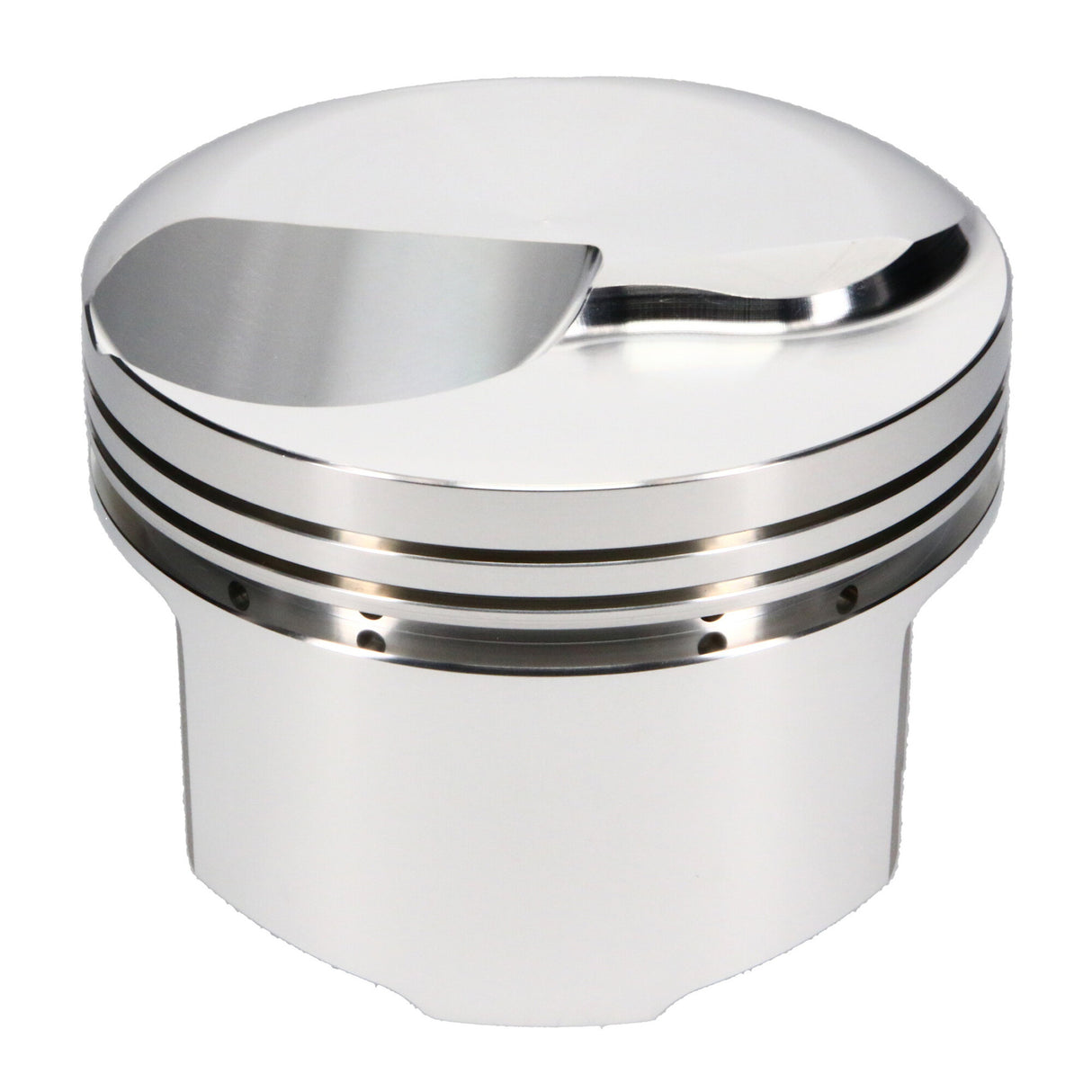

JE Pistons 212135 - Chevrolet Big Block 4.280in Bore 1.645in CH 23.00 CC Piston Kit

JE Pistons  |  SKU: BHXG-212135
Sale price $74999 Regular price $82499

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

JE Pistons 212135 - Chevrolet Big Block 4.280in Bore 1.645in CH 23.00 CC Piston Kit

Piston Set, 4032, Dome, 4.280 Bore, 1.645 CD, 0.990 Pin, Set of 8.

SRP, Chevrolet, Big Block Chevrolet, 4.280 in. Bore, 1.645 CD, Dome, 8 Cyl. Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

    • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
    • Dedicated forging helps optimize strength and weight throughout the piston design
    • Perfect for street/strip applications
    • Forced pin oiling for improved pin lubrication
    • Made 100% in the USA
Add-On: S100S8-4280-5
Add-On: 990-2930-15-51S
Add-On: 990-042-CS
Bore Diameter - Web: 4.280 IN
Bore Diameter: 4.280
Category Hierarchy: Auto>SRP Pistons>SRP
Compression Height: 1.645
Cylinder Head: OPEN CHAMBER
Engine - Web: Big Block
Engine Type: ICE
Engine: Big Block
Forging Type: FSR
Industry: Automotive
Make - Web: Chevrolet
Make: Chevrolet
Oil Ring Thickness: 0.188
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 622
Piston Head Type: Dome
Piston Material: 4032
Piston Series: SRP
Piston Volume: 23.00
Product Market: Domestic
Product Type: Engine Piston Kit
Ring Set Included: No
Second Compression Ring Thickness: 0.0640
Title - Web: SRP Chevrolet Big Block Piston Kit - 4.280 in. Bore - 1.645 in. CH, 23.00 CC
Top Compression Ring Thickness: 0.0640
Wrist Pin Length: 2.930
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.990
Wrist Pin Wall Thickness: 0.150
