JE Pistons 207488 - CHRYSLER TOP FUEL Set of 8 Pistons

JE Pistons  |  SKU: BHXG-207488
Sale price $1,09699 Regular price $1,20669

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

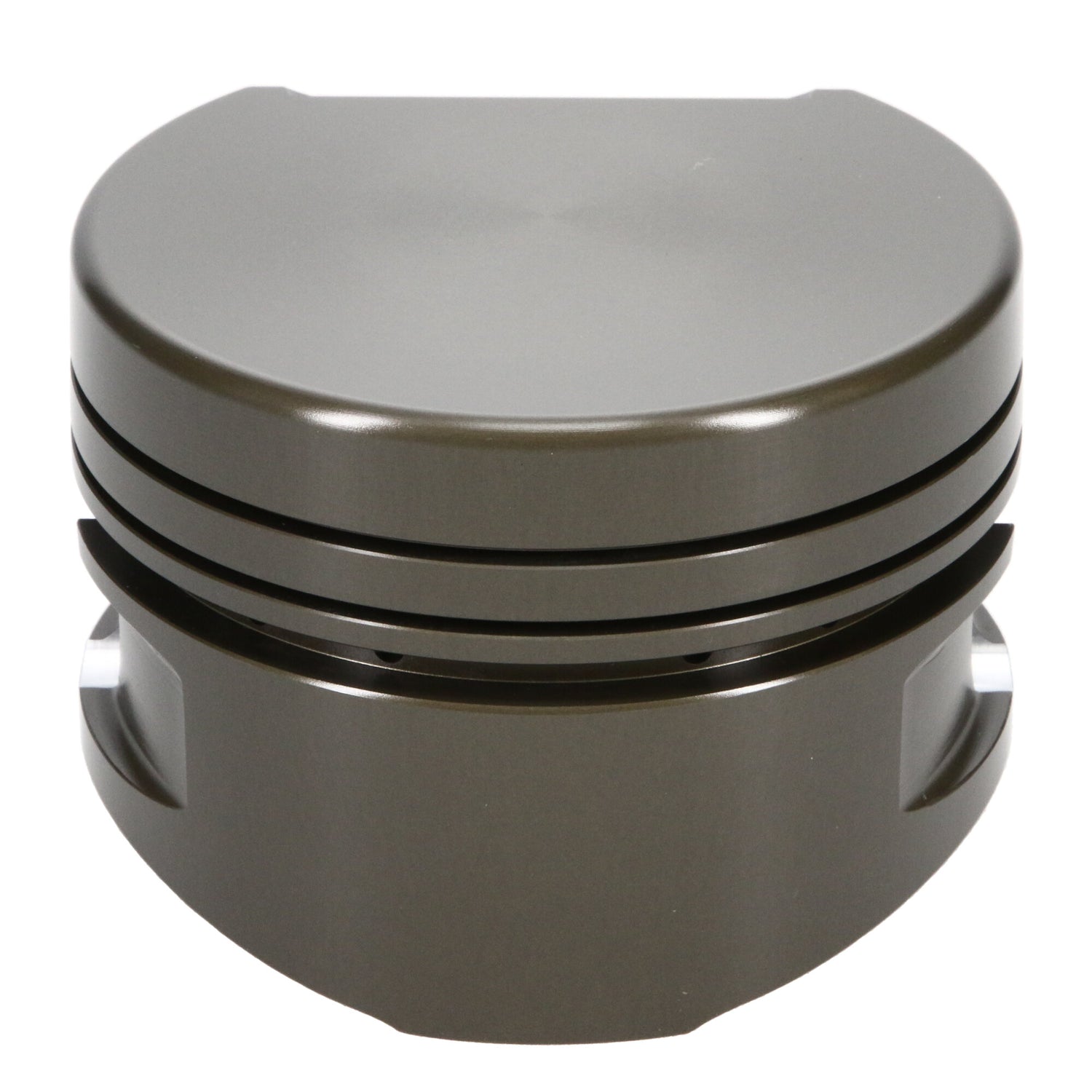

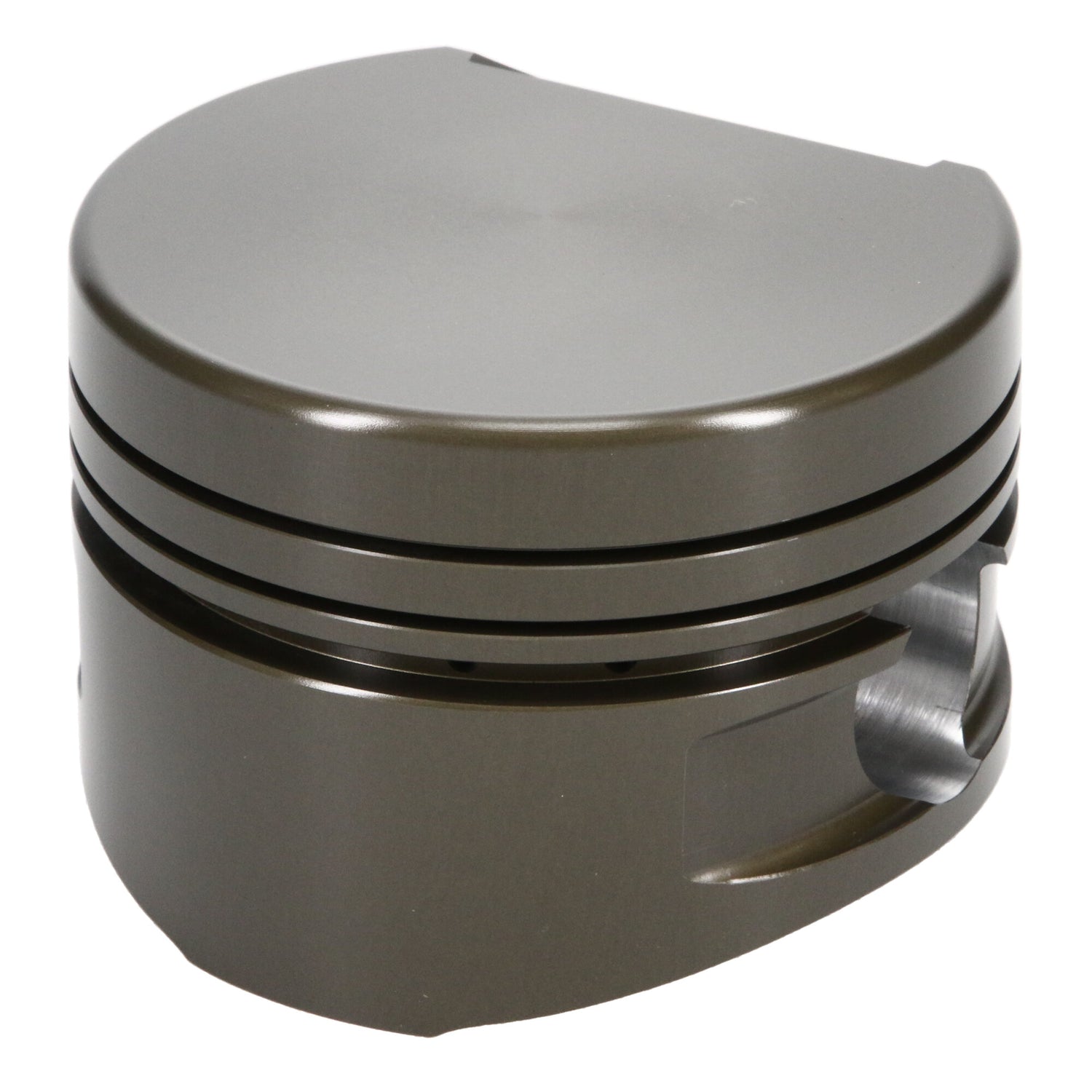

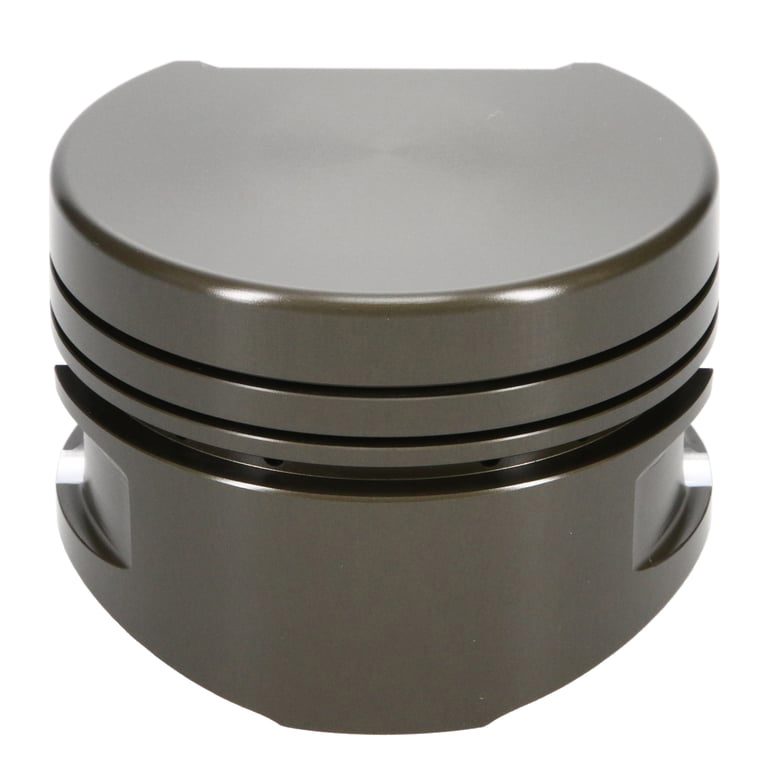

JE Pistons 207488 - CHRYSLER TOP FUEL Set of 8 Pistons

Piston Set, 2618, Flat Top, 4.187 Bore, 1.690 CD, 1.156 Pin, Set of 8.

JE, Chrysler, Top Fuel, 4.187 in. Bore, 1.690 CD, Flat Top, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: 426 HEMI
Bore Diameter: 4.187
Piston Head Type: Flat
Compression Height: 1.690
Piston Volume: 0.00
Piston Material: 2618
Piston Quantity: 8
Forging Type: Round
Piston Average Weight: 807
Ring Set Included: No
Top Compression Ring Thickness: 0.0750
Second Compression Ring Thickness: 0.0660
Oil Ring Thickness: 0.19
Wrist Pin Outer Diameter: 1.156
Wrist Pin Length: 3.900
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: J14185-5-017HPD
Engine: Top Fuel
Make: Chrysler
Industry: Automotive
Engine Type: ICE
Intake Depth: .515
Intake Diameter: 2.500
Intake Angle: 34.5
Top Groove Width: 0.07500
2nd Groove Width: 0.06600
Oil Groove Width: 0.19000
Piston To Wall Clearance: -0.01
