JE Pistons 207486 - CHRYSLER TOP FUEL Set of 8 Pistons

JE Pistons  |  SKU: BHXG-207486
Sale price $1,02499 Regular price $1,12749

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

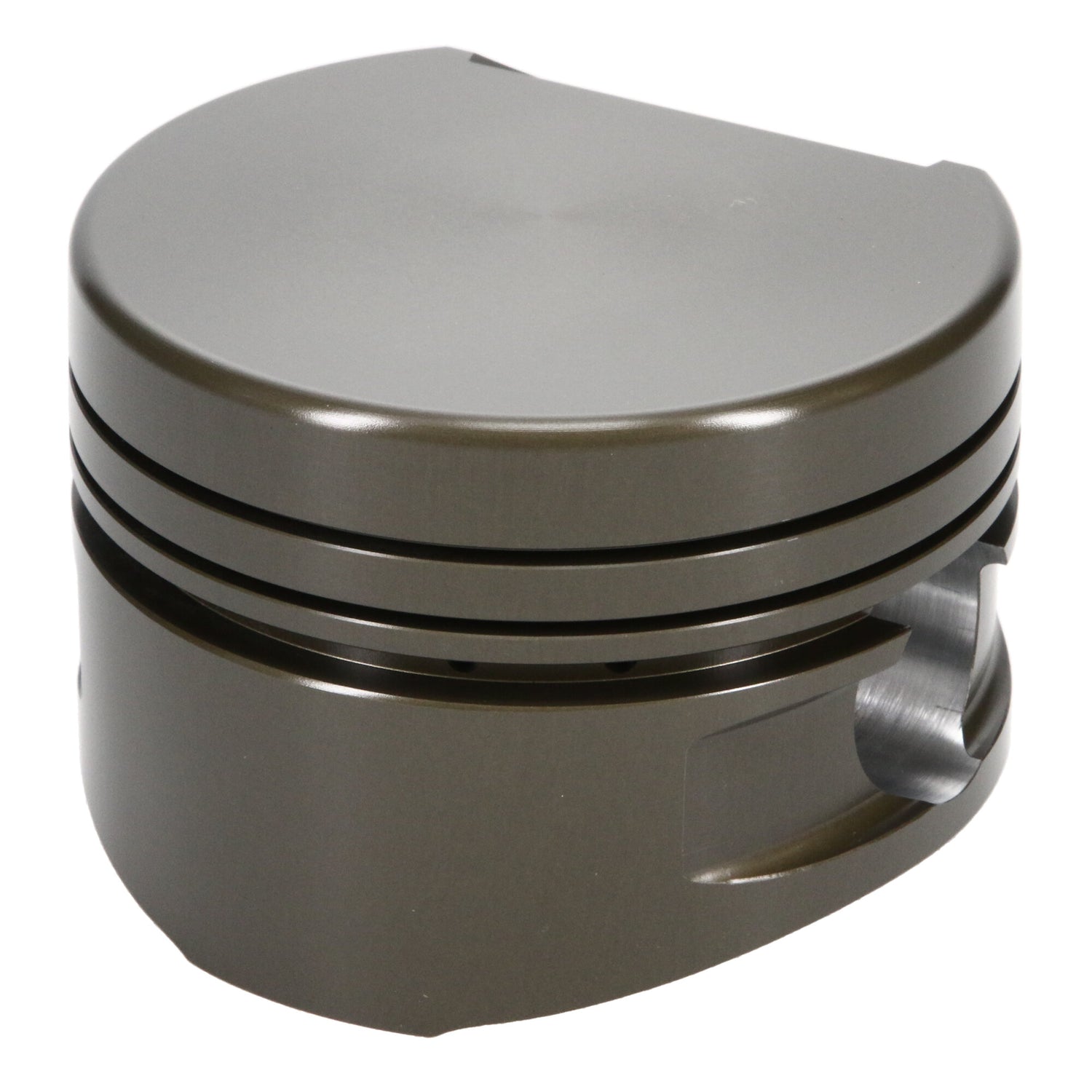

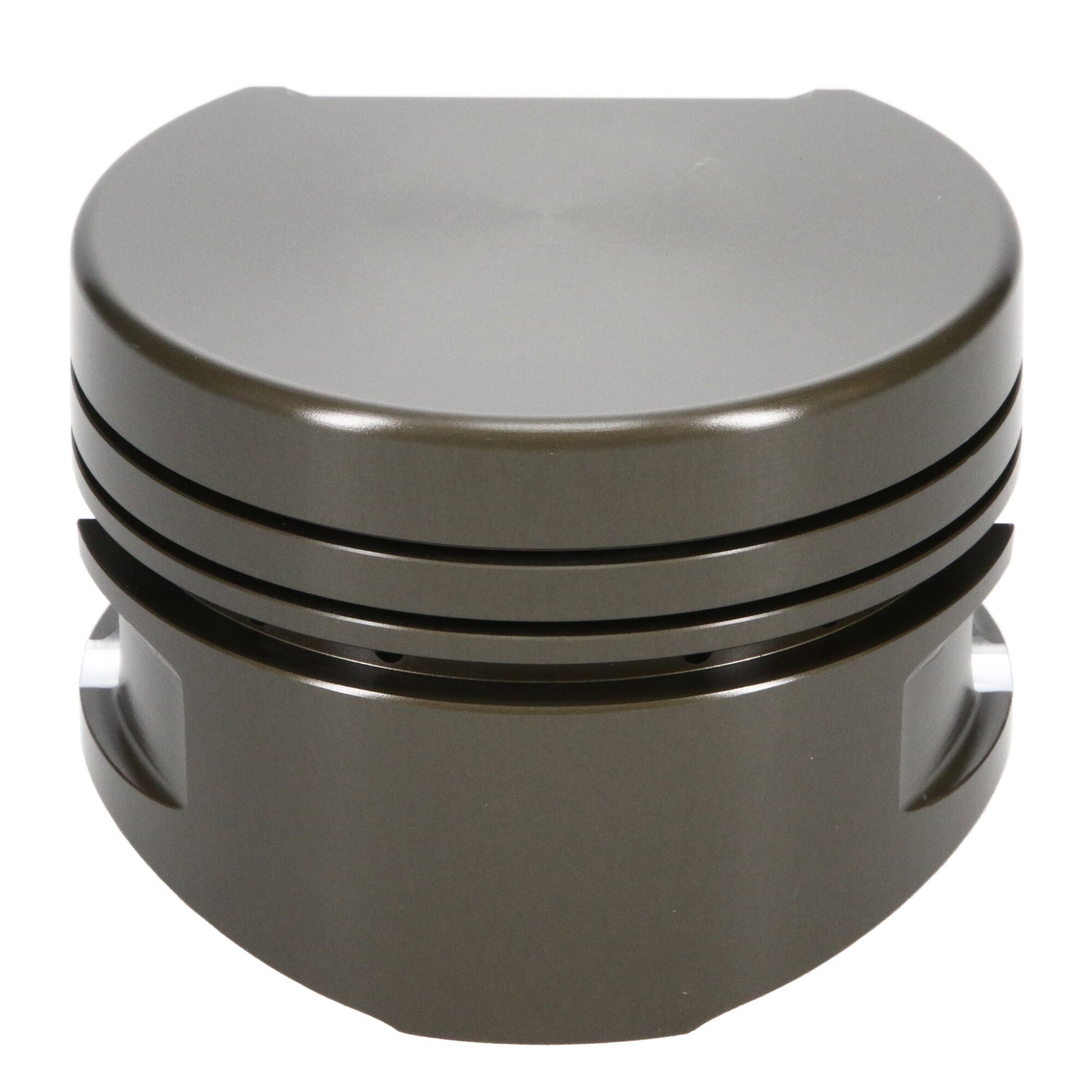

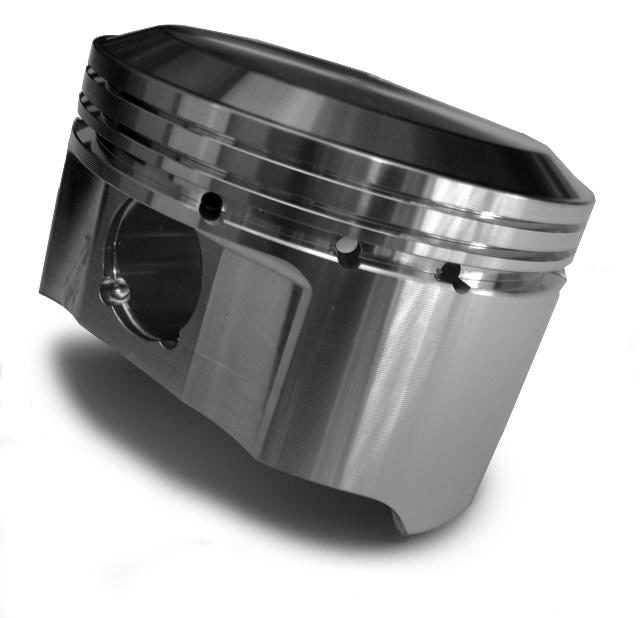

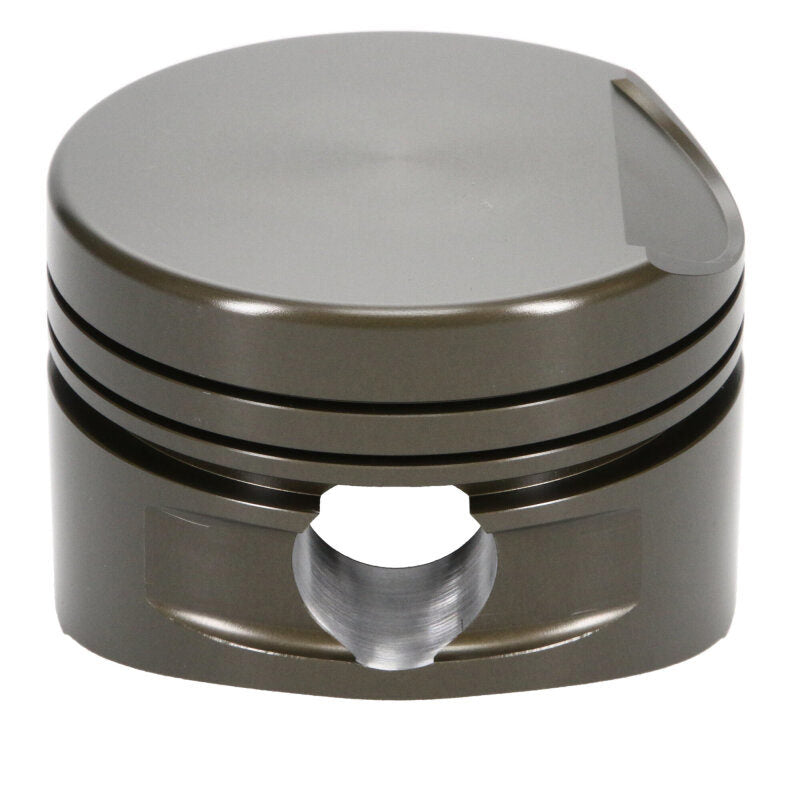

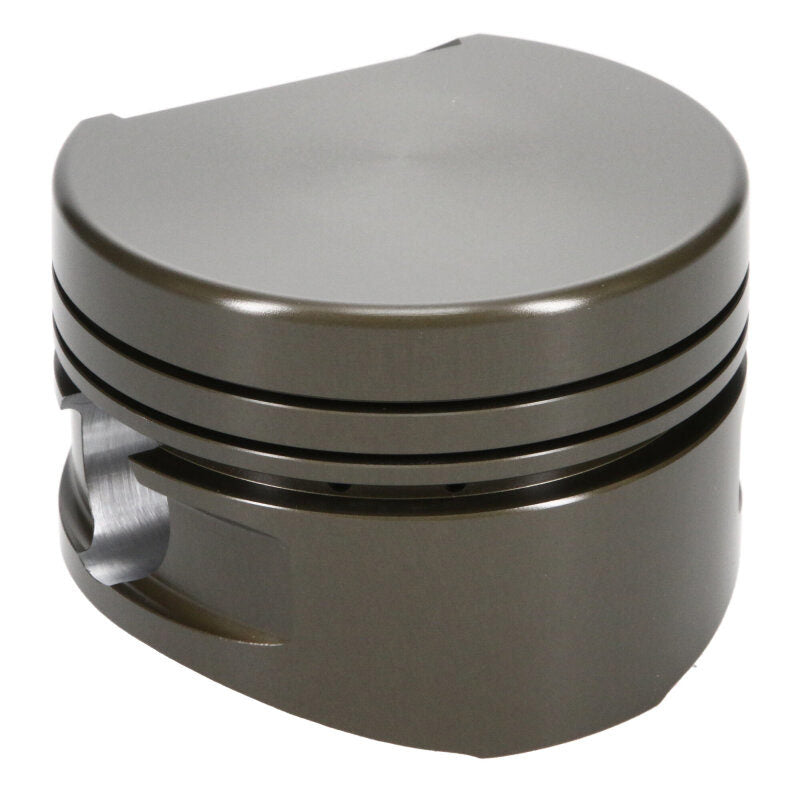

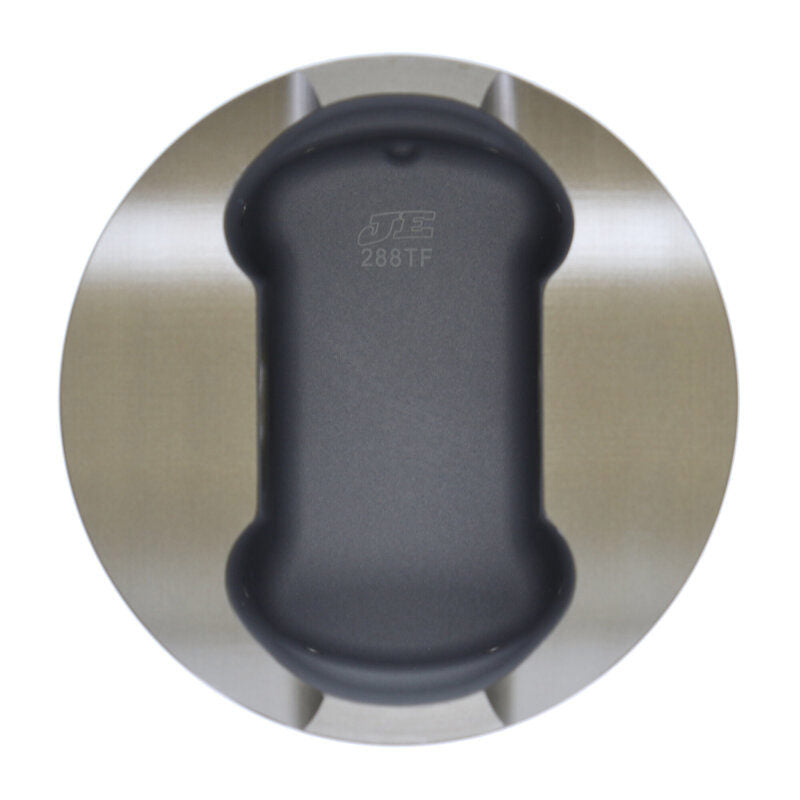

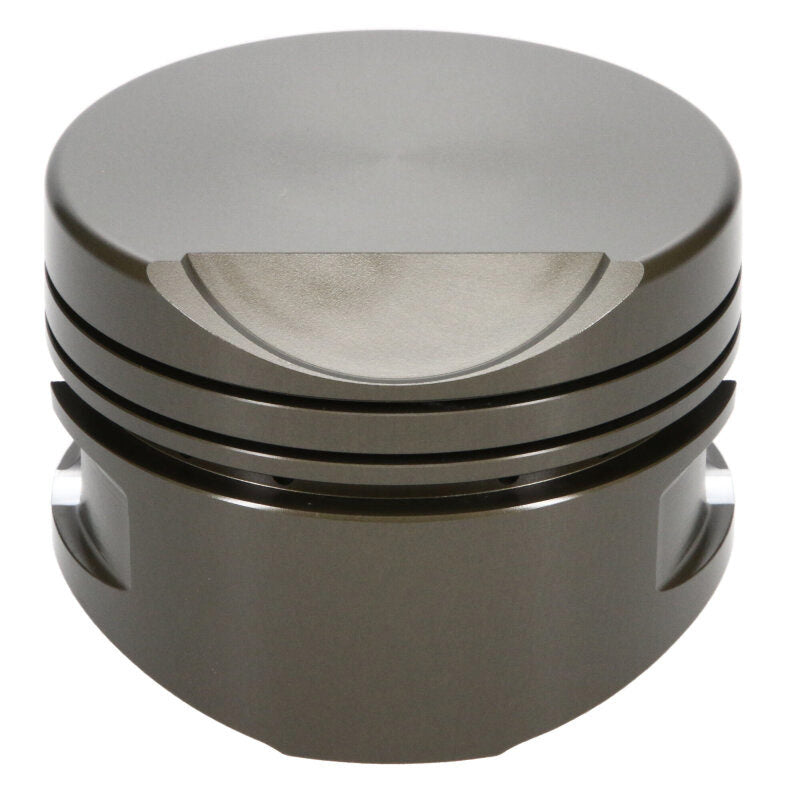

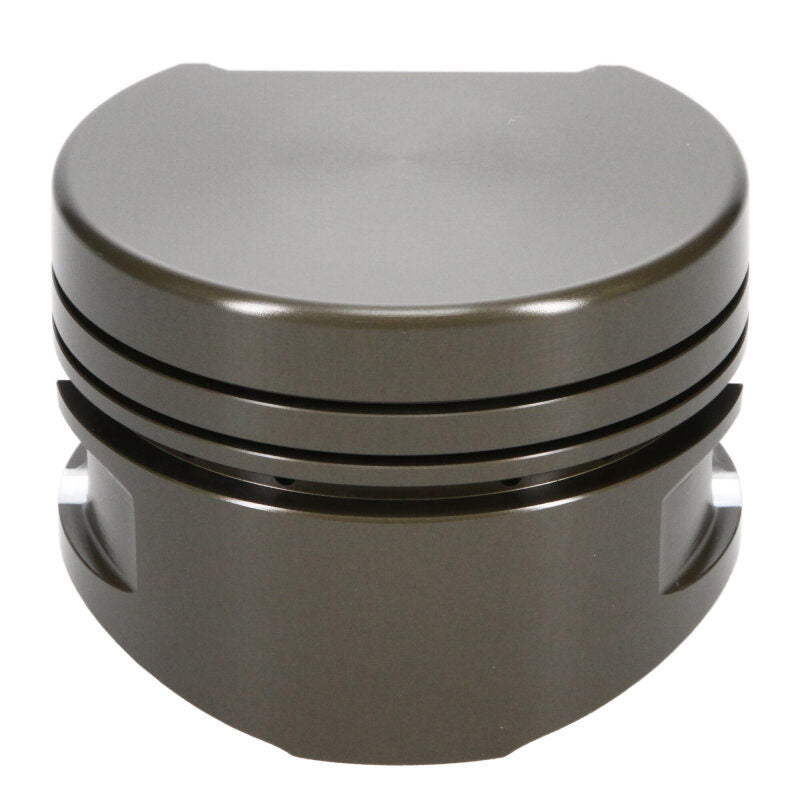

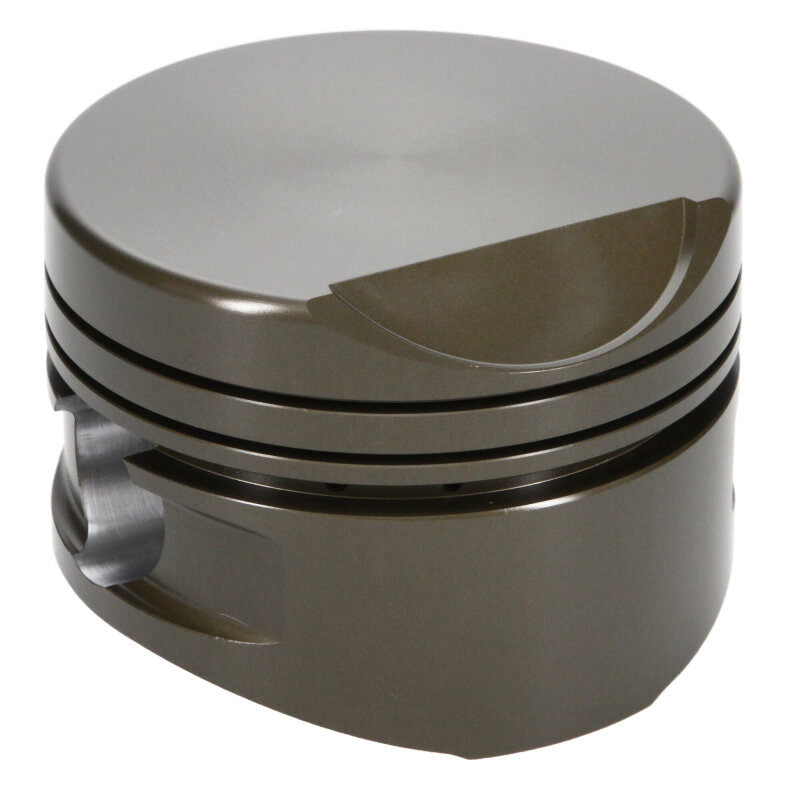

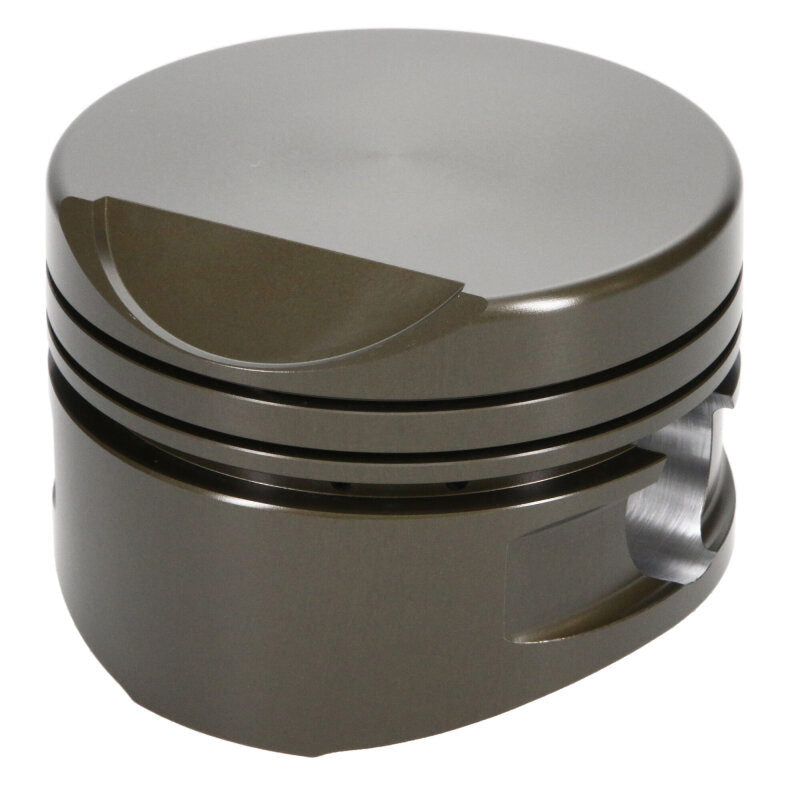

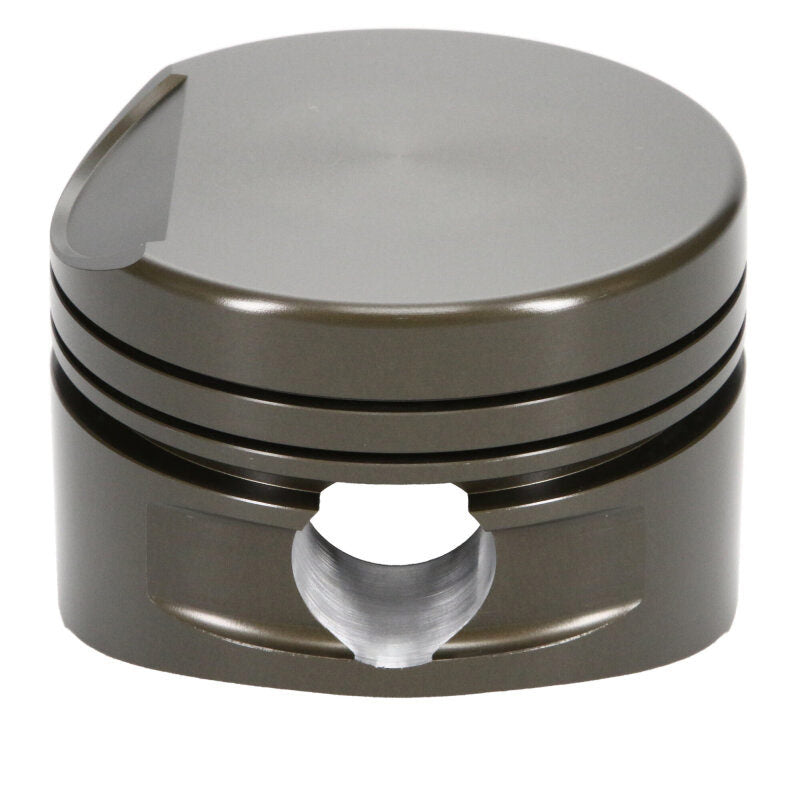

JE Pistons 207486 - CHRYSLER TOP FUEL Set of 8 Pistons

Piston Set, 2618, Flat Top, 4.187 Bore, 1.630 CD, 1.156 Pin, Set of 8.

JE, Chrysler, Top Fuel, 4.187 in. Bore, 1.630 CD, Flat Top, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

    • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
    • Designed specifically for each engine and use application to provide optimized performance durability
    • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
    • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
    • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
    • Made 100% in the USA
Ring Set Included: No
Second Compression Ring Thickness: 0.0660
Title - Web: JE Pistons Chrysler Top Fuel Piston Kit - 4.187 in. Bore - 1.630 in. CH, 0.00 CC
Top Compression Ring Thickness: 0.0750
Wrist Pin Length: 3.900
Wrist Pin Outer Diameter: 1.156
Add-On: J14185-5-017HPD
Bore Diameter - Web: 4.187 IN
Bore Diameter: 4.187
Category Hierarchy: Auto>JE Pistons>Piston Kits
Compression Height: 1.630
Cylinder Head: 426 HEMI
Engine - Web: Top Fuel
Engine Type: ICE
Engine: Top Fuel
Forging Type: Round
Industry: Automotive
Make - Web: Chrysler
Make: Chrysler
Oil Ring Thickness: 0.19
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 784
Piston Head Type: Flat
Piston Material: 2618
Piston Quantity: 8
Piston Series: JE Pistons
Piston Volume: 0.00
Product Market: Domestic
Product Type: Engine Piston Kit
