JE Pistons 178003 - 426 HEMI DOME .610 Set of 8 Pistons

JE Pistons  |  SKU: BHXG-178003
Sale price $1,09699 Regular price $1,20669

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

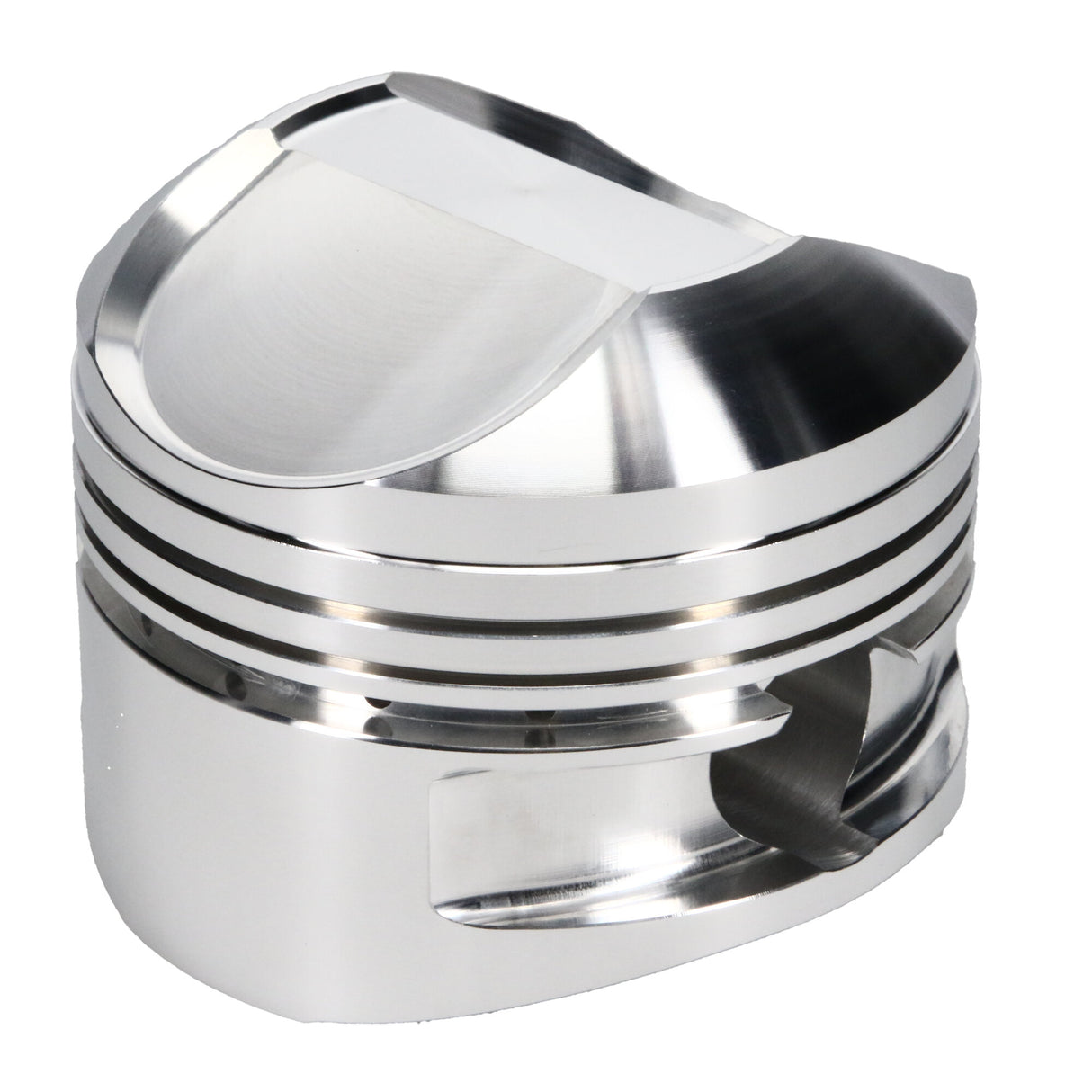

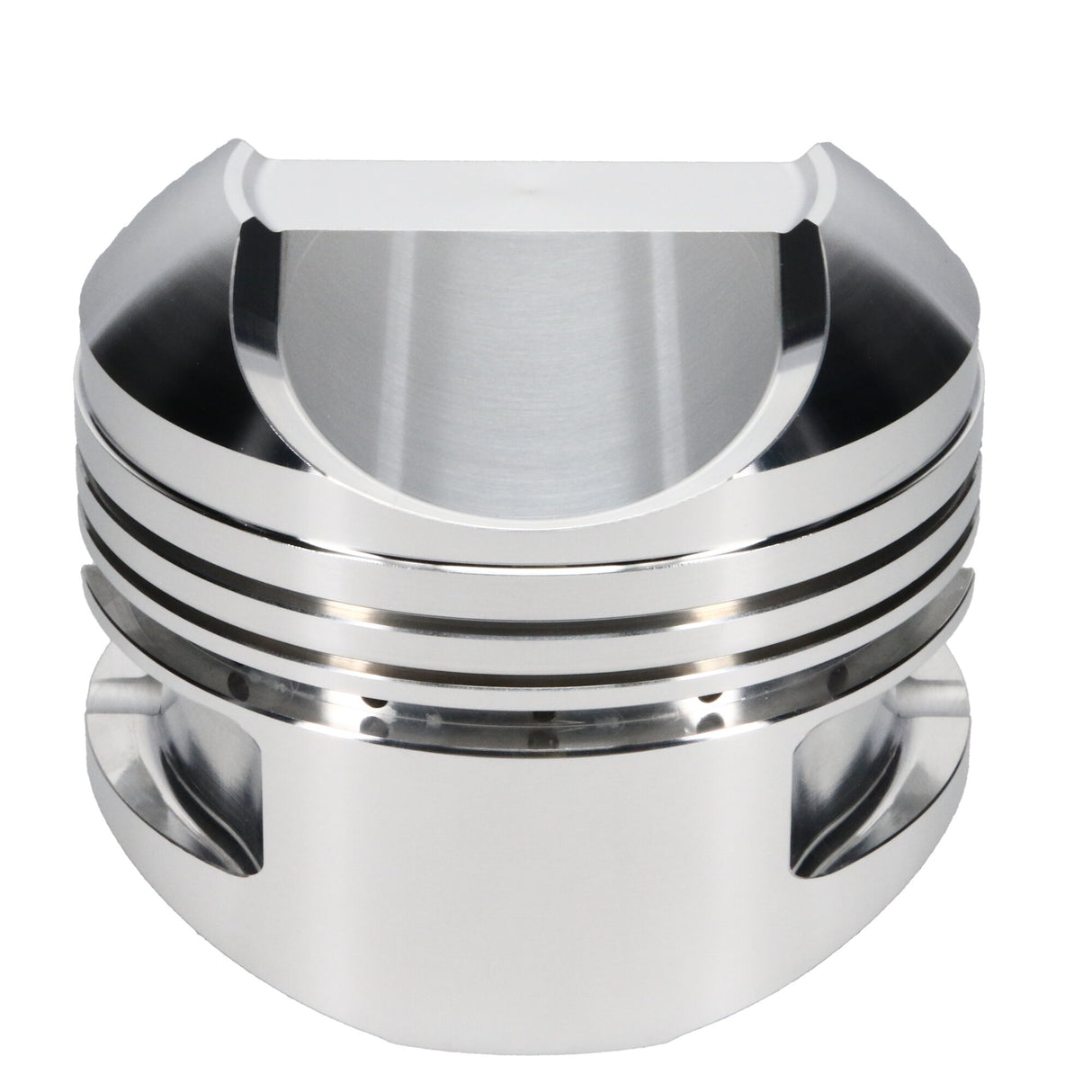

JE Pistons 178003 - 426 HEMI DOME .610 Set of 8 Pistons

Piston Set, 2618, Dome, 4.310 Bore, 1.612 CD, 1.094 Pin, Set of 8.

JE, Chrysler, 426 Hemi, 4.310 in. Bore, 1.612 CD, Dome, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: 426 HEMI
Bore Diameter: 4.310
Piston Head Type: Dome
Compression Height: 1.612
Piston Volume: 0.00
Piston Material: 2618
Piston Quantity: 8
Forging Type: Round
Piston Average Weight: 773
Ring Set Included: No
Top Compression Ring Thickness: 0.0750
Second Compression Ring Thickness: 0.0640
Oil Ring Thickness: 0.188
Wrist Pin Outer Diameter: 1.094
Wrist Pin Length: 3.100
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: J890F8-4310-5
Engine: 426 Hemi
Make: Chrysler
Industry: Automotive
Engine Type: ICE
Intake Depth: .180
Intake Angle: 27
Exhaust Depth: .150
Exhaust Angle: 31
Top Groove Width: 0.07500
2nd Groove Width: 0.06400
Oil Groove Width: 0.18800
Piston To Wall Clearance: -0.005999
