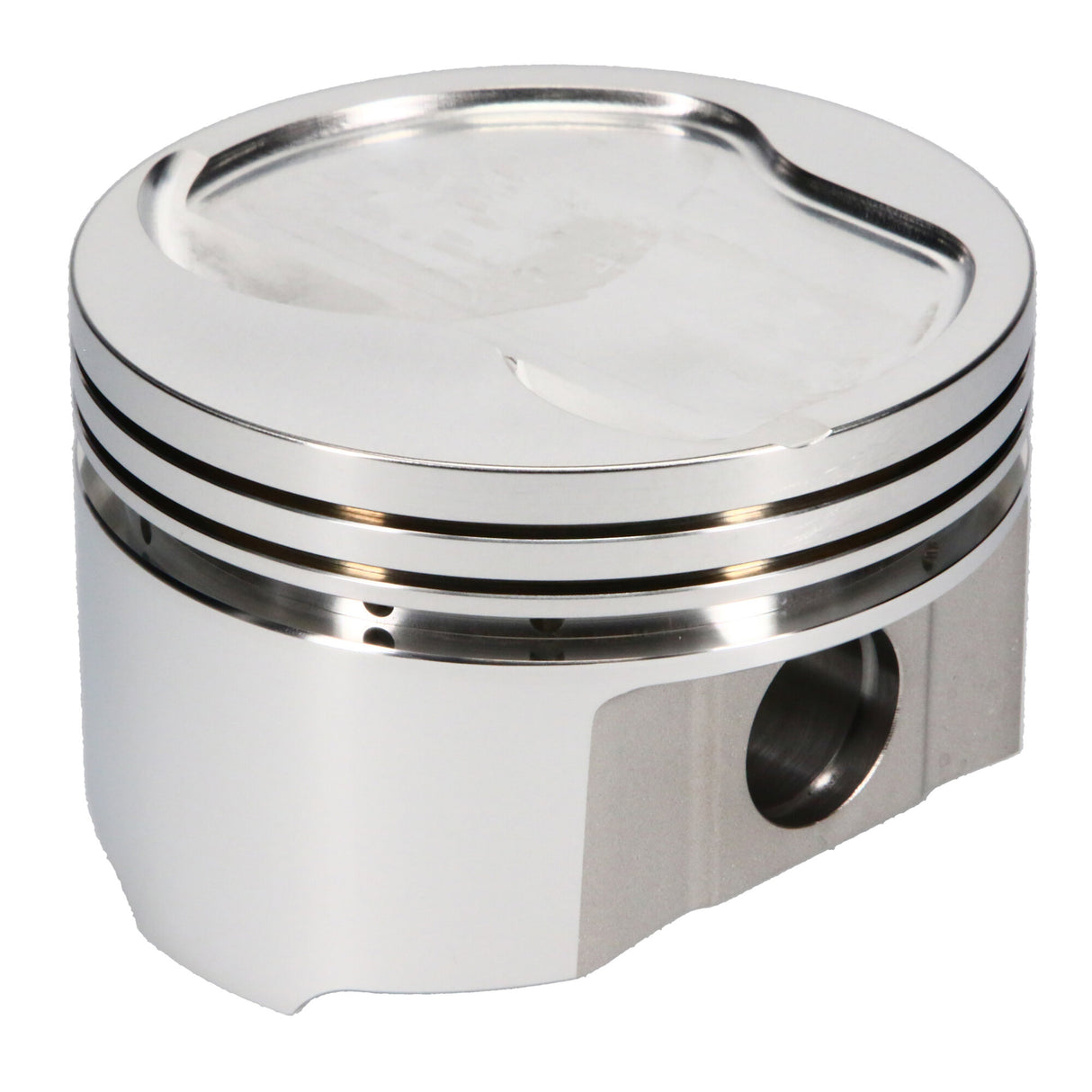

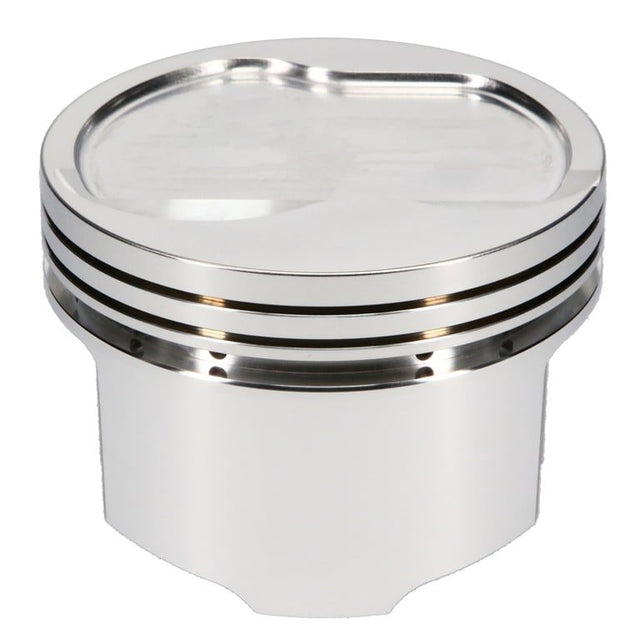

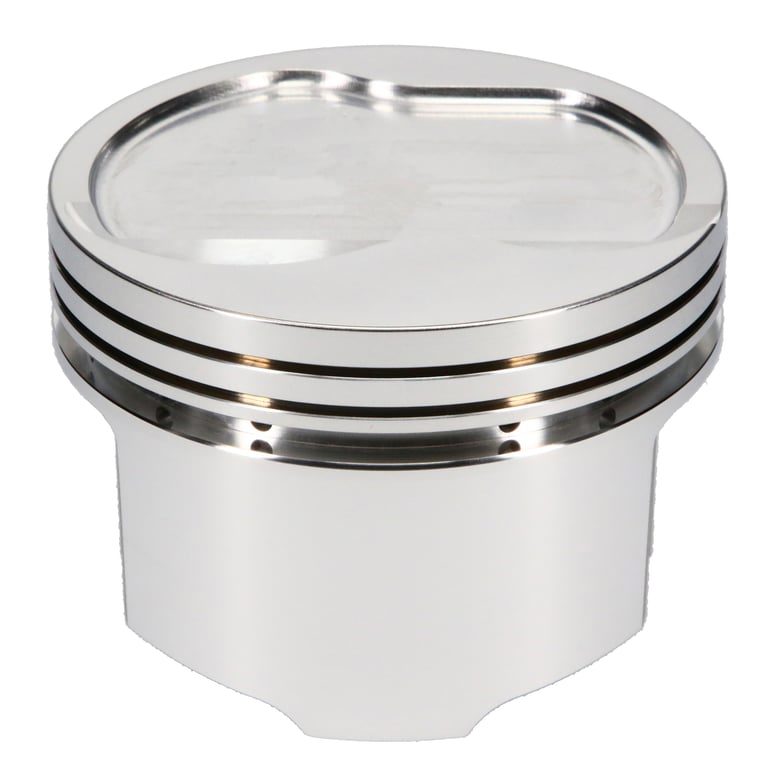

JE Pistons 138726 - Ford Small Block 289/302 4.030in. Bore 1.600in. CH -14.50 CC Piston Set

JE Pistons  |  SKU: BHXG-138726
Sale price $73499 Regular price $80849

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

JE Pistons 138726 - Ford Small Block 289/302 4.030in. Bore 1.600in. CH -14.50 CC Piston Set

Piston Set, 4032, Inv Dome/Dish, 4.030 Bore, 1.600 CD, 0.912 Pin, Set of 8.

SRP, Ford, Small Block Ford, 4.030 in. Bore, 1.600 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Dedicated forging helps optimize strength and weight throughout the piston design
  • Perfect for street/strip applications
  • Forced pin oiling for improved pin lubrication
  • Made 100% in the USA
Piston Series: SRP
Cylinder Head: SMALL BLOCK FORD 20 DEG
Bore Diameter: 4.030
Piston Head Type: Dish
Compression Height: 1.600
Piston Volume: -14.50
Piston Material: 4032
Forging Type: FSR
Piston Average Weight: 499
Ring Set Included: No
Top Compression Ring Thickness: 0.0640
Second Compression Ring Thickness: 0.0640
Oil Ring Thickness: 0.188
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.912
Wrist Pin Length: 2.750
Wrist Pin Wall Thickness: 0.140
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: S100S8-4030-5
Engine: Small Block
Make: Ford
Industry: Automotive
Engine Type: ICE
Intake Depth: .240
Intake Angle: 20
Exhaust Depth: S
Exhaust Angle: 20
Top Groove Width: 0.06400
2nd Groove Width: 0.06400
Oil Groove Width: 0.18800
Piston To Wall Clearance: -0.003
