JE Pistons 138093 - Chevrolet Small Block 4.030in Bore 1.125in CH -5.00 CC Piston Kit

JE Pistons  |  SKU: BHXG-138093
Sale price $62499 Regular price $68749

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

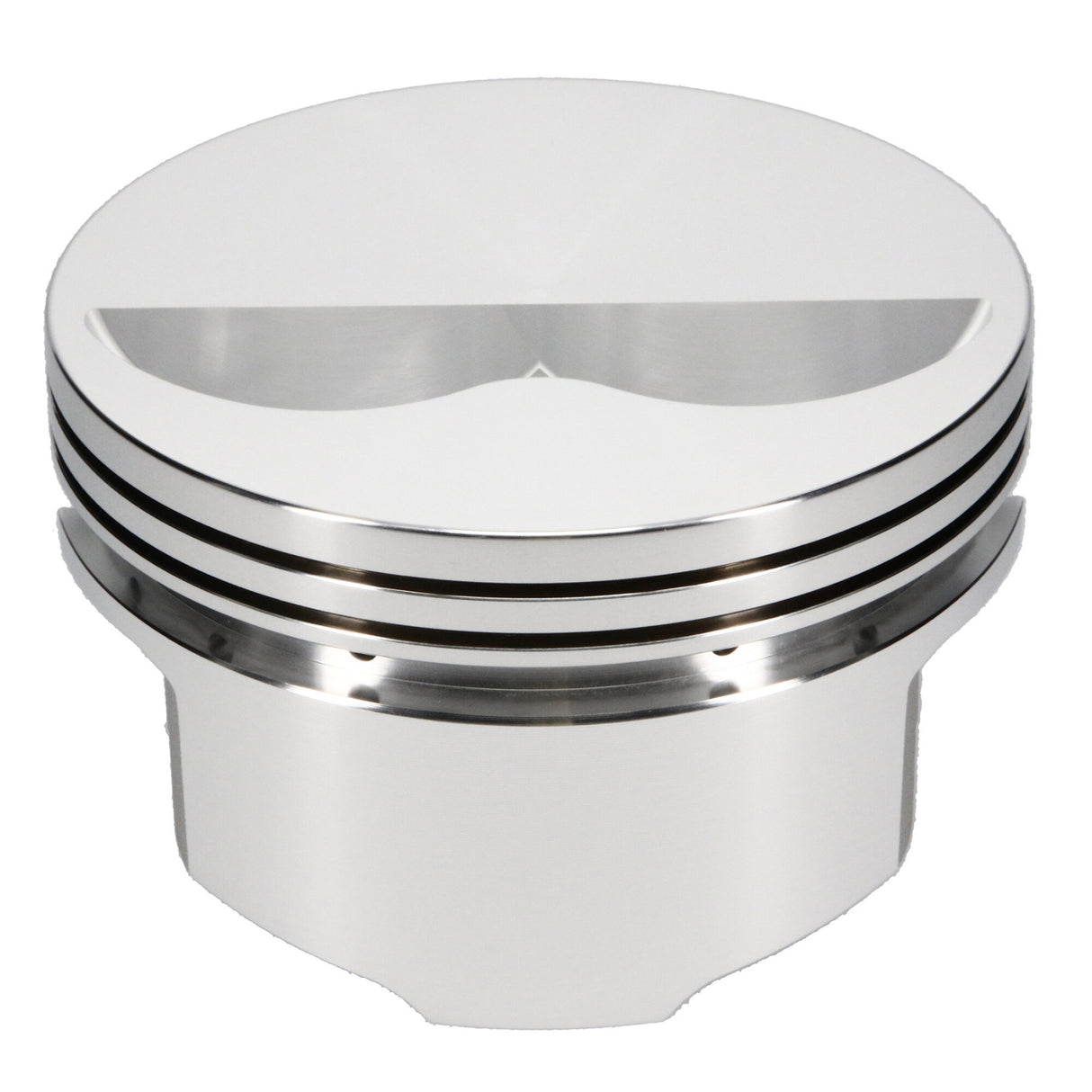

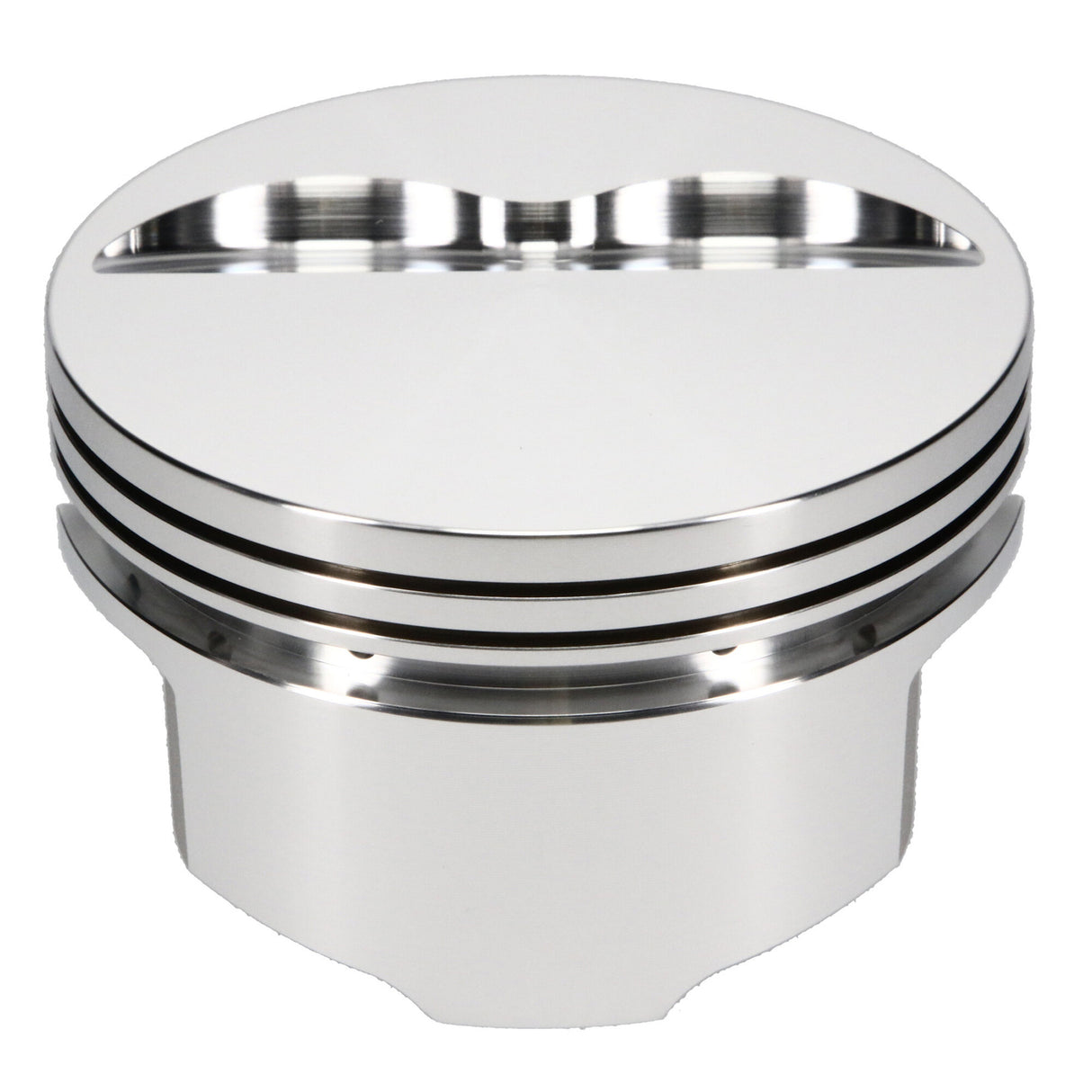

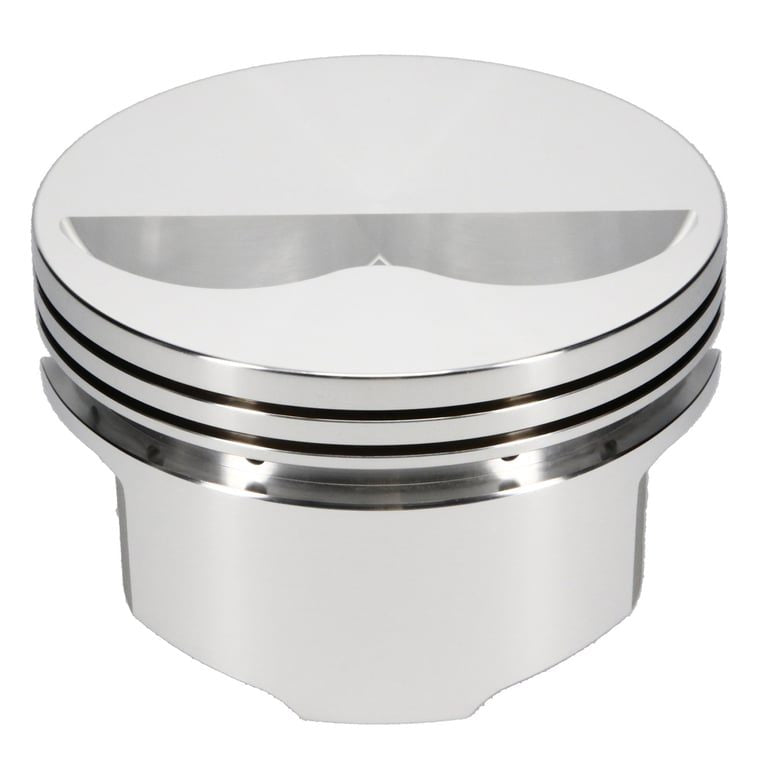

JE Pistons 138093 - Chevrolet Small Block 4.030in Bore 1.125in CH -5.00 CC Piston Kit

Piston Set, 4032, Flat Top, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 8.

SRP, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.125 CD, Flat Top, 8 Cyl. Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

    • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
    • Dedicated forging helps optimize strength and weight throughout the piston design
    • Perfect for street/strip applications
    • Forced pin oiling for improved pin lubrication
    • Made 100% in the USA
Add-On: S100S8-4030-5
Add-On: 927-2750-15-51S
Add-On: 927-042-CS
Bore Diameter - Web: 4.030 IN
Bore Diameter: 4.030
Category Hierarchy: Auto>SRP Pistons>SRP
Compression Height: 1.125
Cylinder Head: CHEVROLET 23 DEG 20/30
Engine - Web: Small Block
Engine Type: ICE
Engine: Small Block
Forging Type: FSR
Industry: Automotive
Make - Web: Chevrolet
Make: Chevrolet
Oil Ring Thickness: 0.218
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 416
Piston Head Type: Flat
Piston Material: 4032
Piston Series: SRP
Piston Volume: -5.00
Product Market: Domestic
Product Type: Engine Piston Kit
Ring Set Included: No
Second Compression Ring Thickness: 0.0640
Title - Web: SRP Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.125 in. CH, -5.00 CC
Top Compression Ring Thickness: 0.0640
Wrist Pin Length: 2.750
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Wall Thickness: 0.150
