Icon K93208T - 19-21 Ford Ranger, 0-3.5" Lift Stage 8 Suspension System, w/CDCV, Tubular

Icon K93208T - 19-21 Ford Ranger, 0-3.5" Lift Stage 8 Suspension System, w/CDCV, Tubular

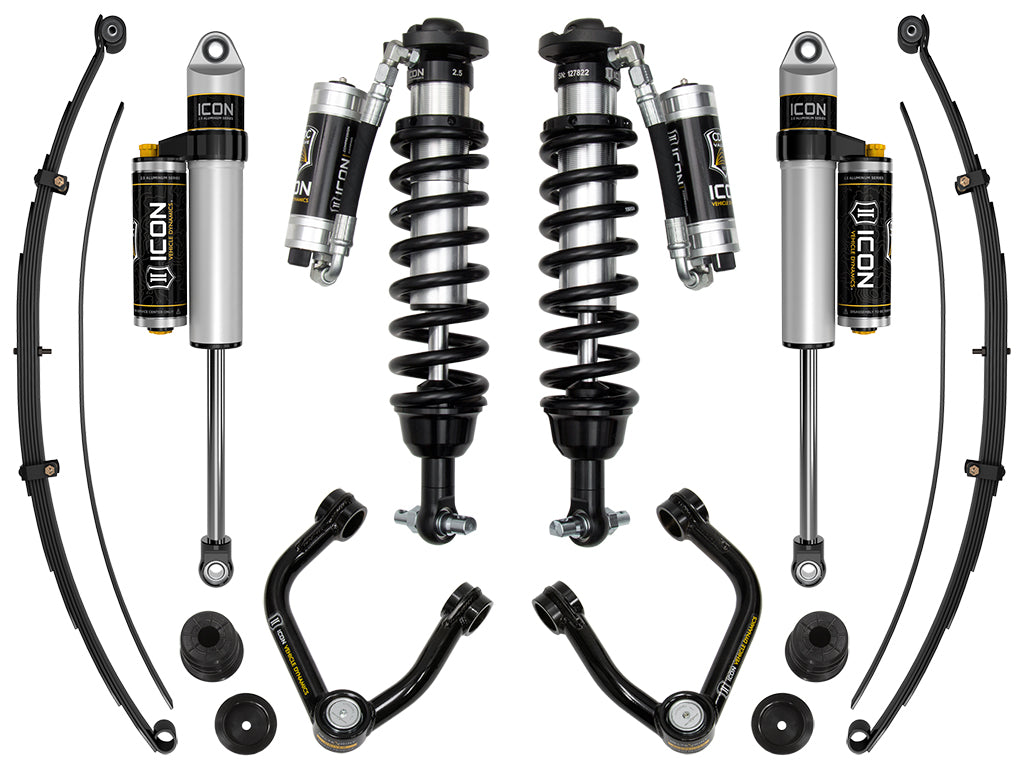

2019-2021 FORD RANGER 0-3.5" LIFT STAGE 8 SUSPENSION SYSTEM WITH TUBULAR UCA

This system features tubular steel upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Height-adjustable coilovers provide a range of 0-3.5” of front lift height
• Shocks are fully rebuildable and revalvable
• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Delta Joint upper control arms carry ICON's exclusive 5 year limited warranty
• Direct bolt-in design makes for a simple and straightforward installation
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Fits 2WD & 4WD applications
• Increased lift height allows for fitment of larger and more aggressive tires
• 35% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• CDCV technology allows for quick and easy compression damping adjustment
• Remote reservoirs provide generous nitrogen and oil volume for enhanced cooling properties and consistent damping
• Corrosion resistant CAD plated shock body with 7/8? shaft (2.5 Series coilovers)
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish (2.5 Aluminum Series shocks)
• FK Rod End bearings provide extended longevity and minimal deflection
• 3 user-adjustable rear spring rates for unique vehicle configurations
• Significantly lighter spring rate (up to 35%) allows for smooth motion throughout the entire range of travel
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
