Icon K93174X - 21-25 Ford F150 Raptor 1-3in Lift Stage 4 Overland Suspension System

Icon K93174X - 21-25 Ford F150 Raptor 1-3in Lift Stage 4 Overland Suspension System

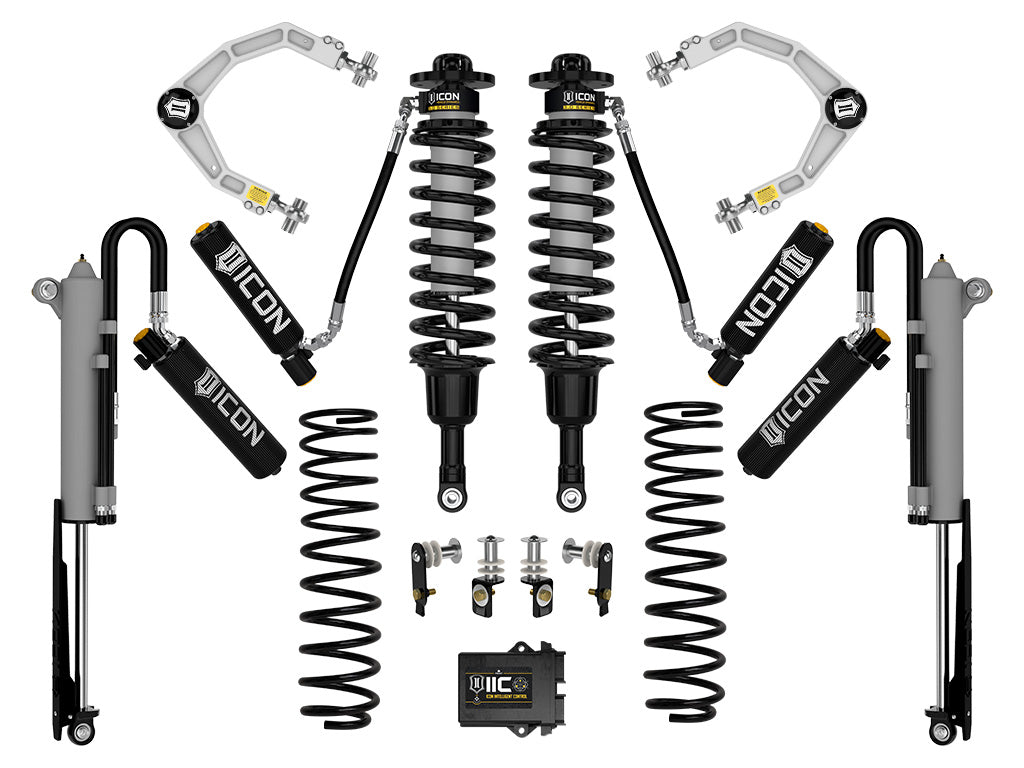

21-25 FORD F150 RAPTOR 1-3" STAGE 4 SUSPENSION SYSTEM OVERLAND

Transform your Gen3 F-150 Raptor’s stance with the ICON Vehicle Dynamics Stage 4 suspension system. Designed for maximum performance featuring ICON active electronic shock damping to enhance your truck's capability and ride quality.

ICON Vehicle Dynamics products are proudly designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts. With a reputation for quality, performance, and service it's clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for the 2021-2025 Ford F-150 Raptor.

• Adjustable 3.0” diameter coilovers yield 1-3” of front lift height

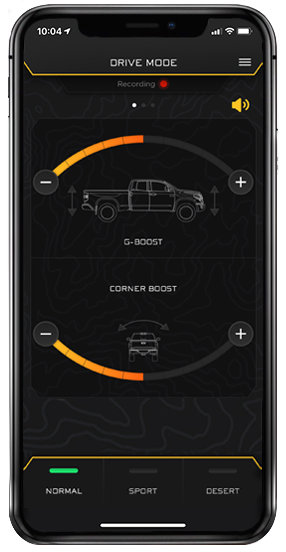

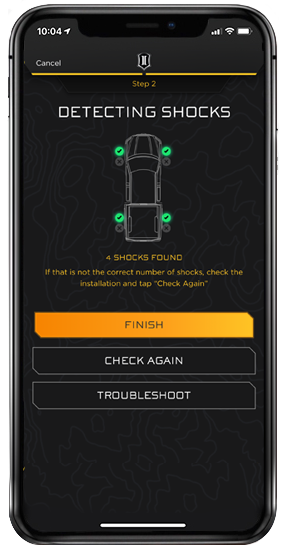

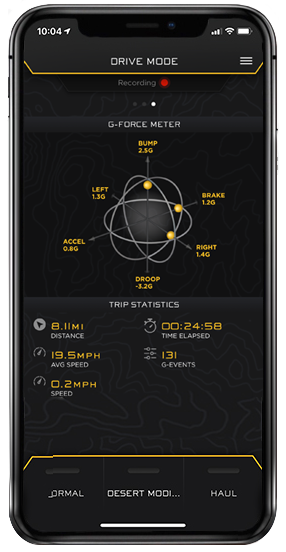

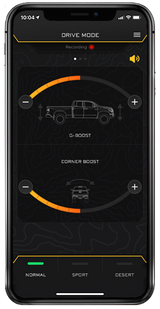

• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s multi-stage hydraulic coilover “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Billet aluminum front upper control arms feature patented Delta Joint Pro (U.S. Pat. 10,731,700) allowing maximum wheel travel without binding
• Adjustable control arms correct suspension geometry and offer quick, precise, on-vehicle adjustment for both caster and camber
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates yield 1" rear lift height over stock with approximately 300lbs of additional weight in the rear
• 3.0” diameter RXT 3-tube bypass rear shocks with 3.0” diameter finned remote reservoirs
• Unique side-mounted rear shock upper eyelets allow for increased travel while utilizing factory mounting location
• Application specific shock length designed to be paired with ICON rear coil springs provides up to 17" of rear wheel travel
• Solenoid mounts bypass factory electronic shock system, keeping OE solenoid coils connected to prevent error codes
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Fully serviceable shock absorber design allows for revalves, rebuilds, and an immeasurable service life
