Icon K93172X - 2021-2025 Ford F-150 Raptor, 2-2.25" Lift, Stage 2 Suspension System, Overland Rear Springs
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

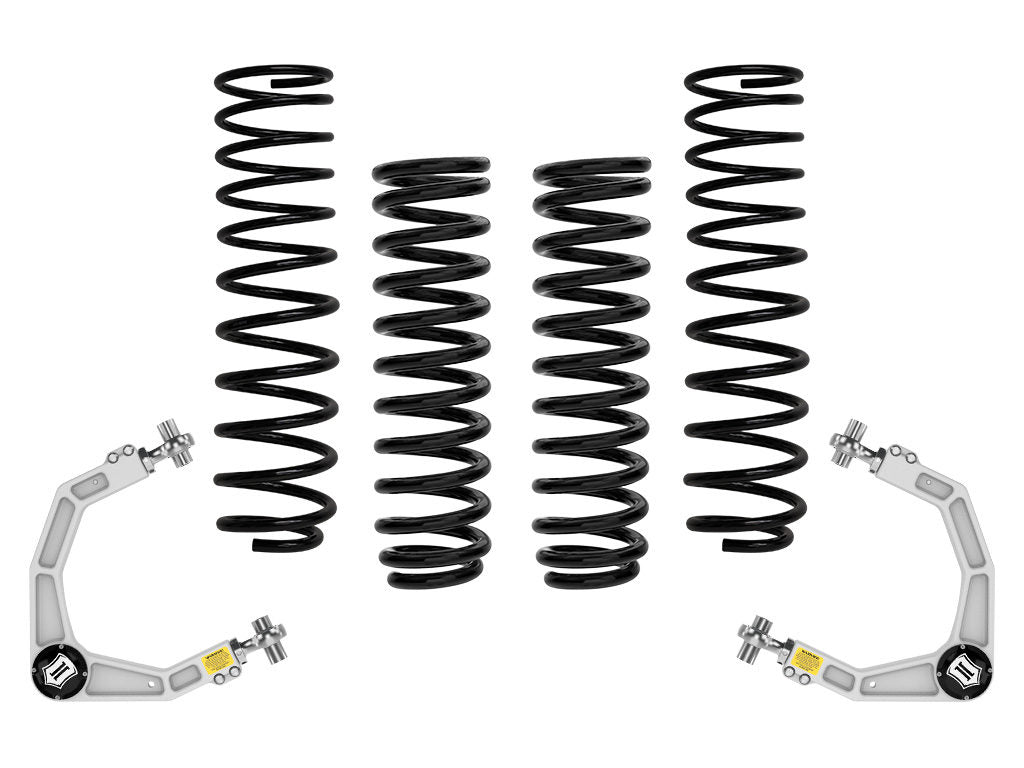

Icon K93172X - 2021-2025 Ford F-150 Raptor, 2-2.25" Lift, Stage 2 Suspension System, Overland Rear Springs
21-25 FORD F150 RAPTOR 2-2.25" STAGE 2 SUSPENSION SYSTEM OVERLAND
Transform your Gen3 F-150 Raptor’s stance with the ICON Vehicle Dynamics Stage 2 suspension system. Designed for seamless compatibility, maintaining electronic shock functionality while enhancing your truck's capability and ride quality.
Built for both durability and ease of installation, these springs feature a dual-stage powder coating that protects against corrosion in any environment. Their bolt-on design eliminates the need for cutting or modifications, allowing for a straightforward install. Backed by a lifetime guarantee against sagging or breakage, these coil springs redefine your Raptor’s on- and off-road performance, delivering unmatched reliability and confidence wherever the journey takes you.
- Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
- Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
- Compatible with all versions of available OE shock absorbers
- Maintains electronic shock functionality
- Linear rate front coil springs

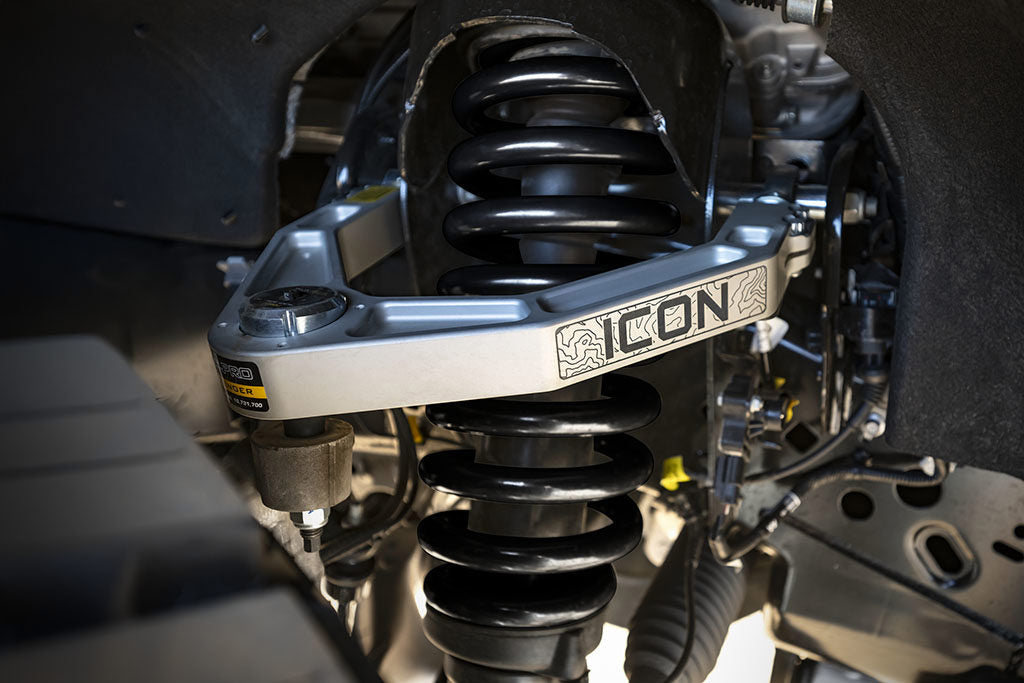

- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
- Tapered wire rear coil design achieves maximum travel and efficiency
- Significantly improves on- and off-road ride quality and performance over stock
- Bolt-on installation with no cutting required
- Dual stage powder coating for maximum corrosion resistance
- Lifetime guarantee against sagging/breakage
