Icon K93171X - 21-25 Ford F-150 Raptor 2-2.25in Lift Stage 1 Suspension System
21-25 FORD F150 RAPTOR 2-2.25" STAGE 1 SUSPENSION SYSTEM OVERLAND
Transform your Gen3 F-150 Raptor’s stance with the ICON Vehicle Dynamics Stage 1 suspension system. Designed for seamless compatibility, maintaining electronic shock functionality while enhancing your truck's capability and ride quality.
This Stage 1 system is configured for more upfitted Raptors that have constant load in the bed, with triple-rate rear coil springs tailored to deliver a 1" rear lift on Raptors with approximately 300lbs of additional rear weight. ICON-engineered droop, ride, and overload rates ensure optimal suspension performance across a variety of driving conditions. The performance ride rate balances comfort and compliance, while the overload rate enhances load handling and bottom-out resistance. For maximum articulation and efficiency, the rear coils feature a tapered wire design, providing exceptional droop travel and off-road capability.
- Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
- Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
- Compatible with all versions of available OE shock absorbers
- Maintains electronic shock functionality
- Linear rate front coil springs
- 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear

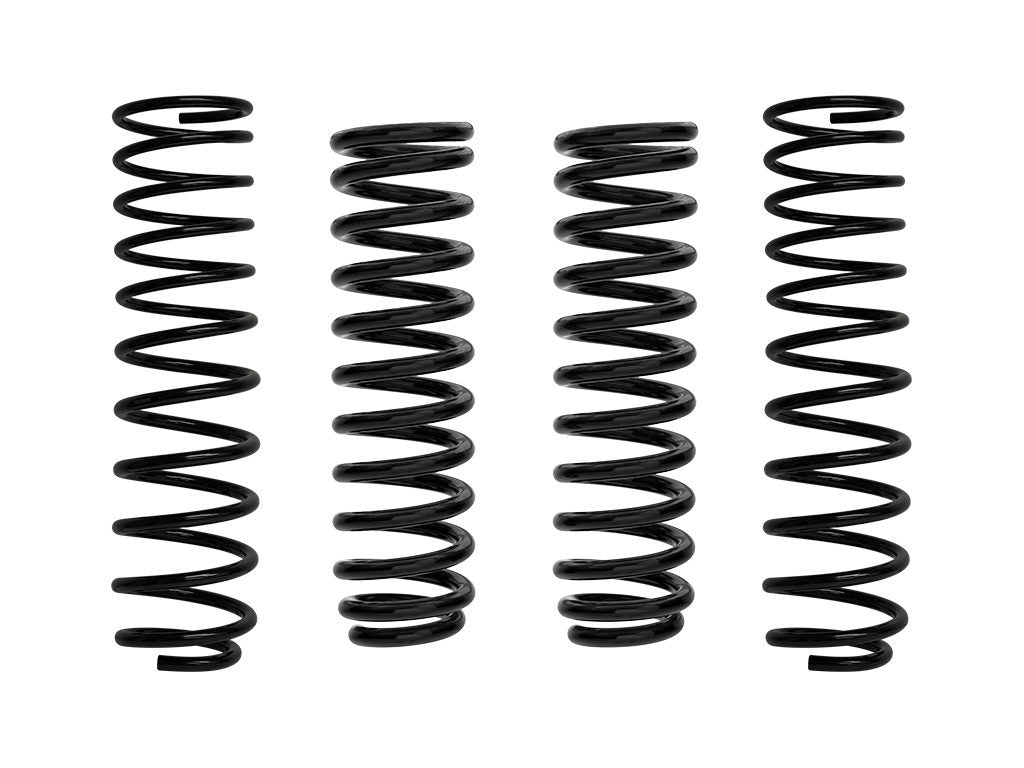

- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
- Tapered wire rear coil design achieves maximum travel and efficiency
- Significantly improves on- and off-road ride quality and performance over stock
- Bolt-on installation with no cutting required
- Dual stage powder coating for maximum corrosion resistance
- Lifetime guarantee against sagging/breakage
