Icon K93144TL - 21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 4 Suspension Sys Tubular UCA / Leaf Pack

Icon K93144TL - 21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 4 Suspension Sys Tubular UCA / Leaf Pack

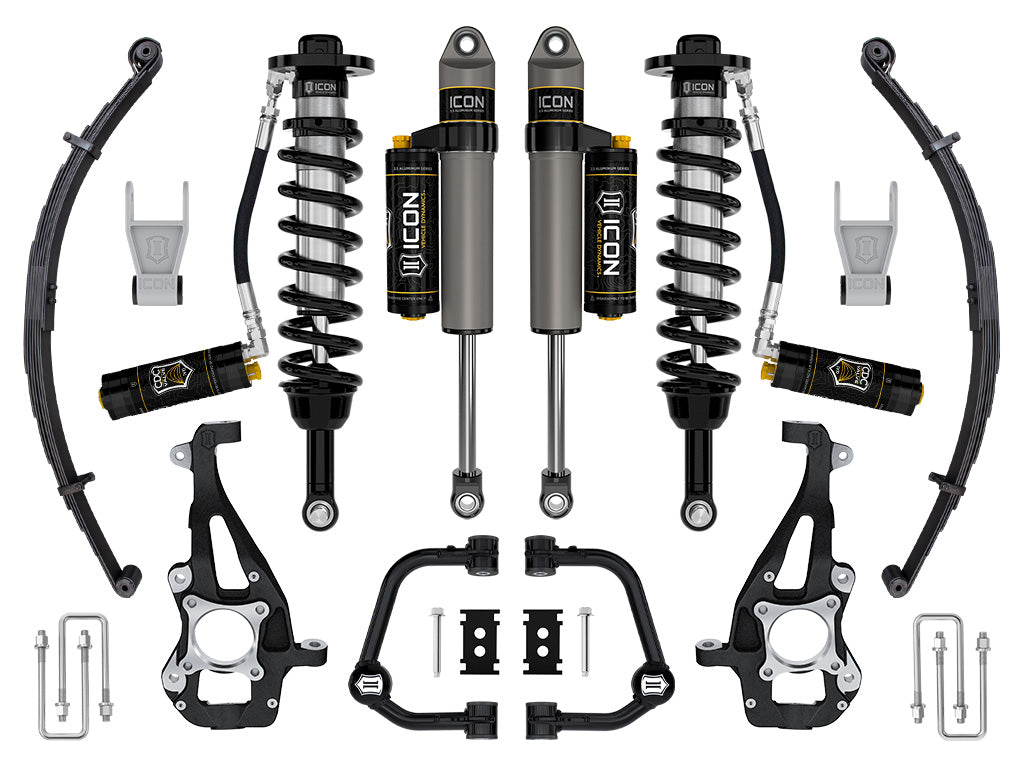

21-24 FORD F150 4WD 3.5-4.5" STAGE 4 SUSPENSION SYSTEM TUBULAR CDCV LEAF PACK

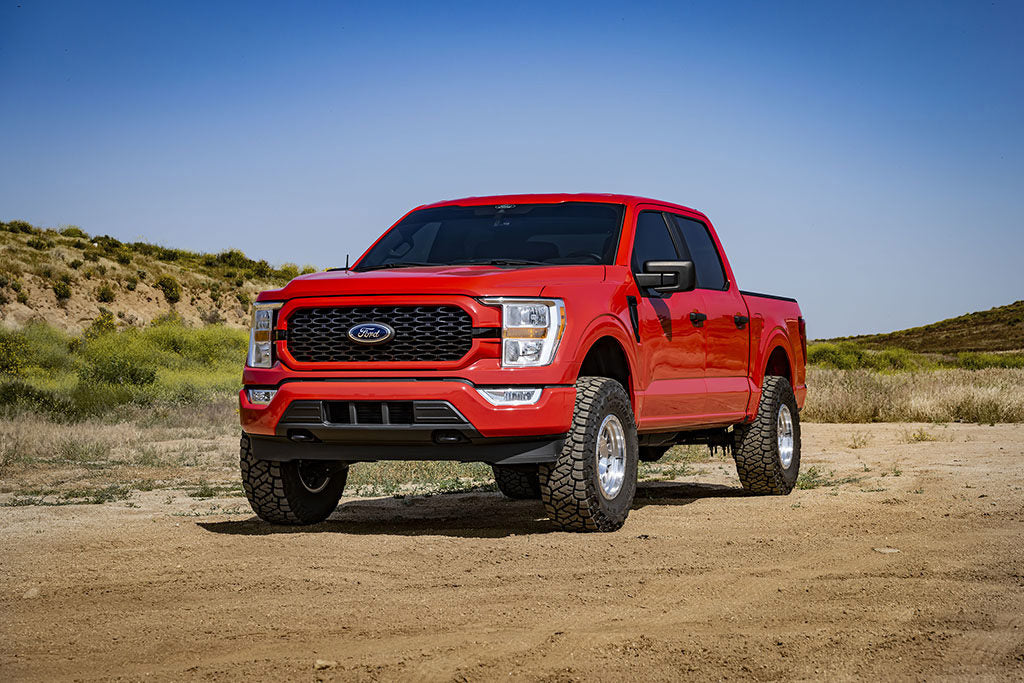

ICON suspension systems lift your Ford F-150 4WD while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON's primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality. To achieve this, these systems include high-strength CNC machined ductile iron steering knuckles that replicate the suspension geometry of the F-150 Tremor and are effectively a Tremor “conversion” for your F-150 4WD. This Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable for 3.5-4.5” of front lift, allowing the use of larger, more aggressive wheel and tire combos. Their combination with the ICON steering knuckles also allows for a 20% increase in wheel travel compared to other ICON F-150 kits. Tubular Delta Joint Pro upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow for the extra lift height this system provides. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and heat dissipation, balancing the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. ICON Multi-Rate Leaf Springs allow rear spring rate and ride height customization, improve ride quality, and reduce axle wrap by eliminating the factory rear blocks. Rear ride height is kept within an acceptable range using the ICON billet aluminum 1" lowering shackles. The ICON 2021-2024 F-150 4WD Stage 4 suspension system is an excellent choice for those looking to enhance the capabilities of their pickup.

• High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry
• Adjustable coilovers offer 3.5-4.5" of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling
• Tubular Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range
• 20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 3 user-adjustable rear spring rates for unique vehicle setups
• Reduced rear axle wrap and improved ride quality compared to stock leaf springs
• Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
• 100% Bolt-on system - no cutting or welding necessary for install
