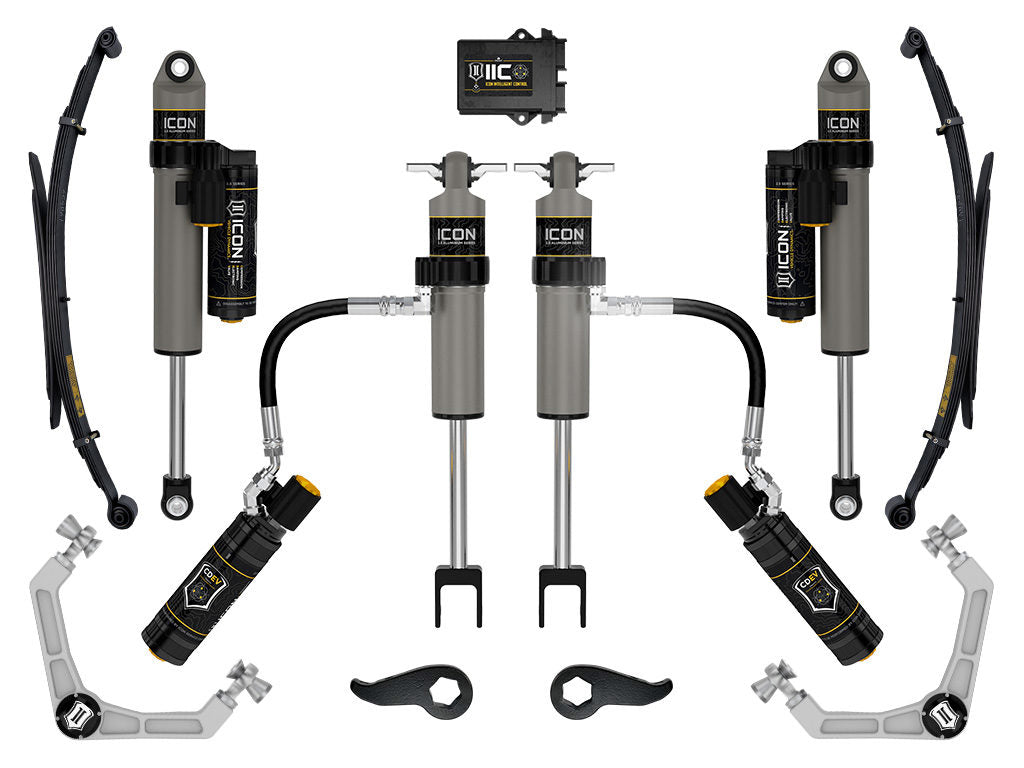

Icon K78366L - 2020-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 2-3.5" Lift, Stage 6 Suspension System, Billet, w/ Leaf Packs

Icon K78366L - 2020-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 2-3.5" Lift, Stage 6 Suspension System, Billet, w/ Leaf Packs

20-26 GM 2500/3500 HD 2-3.5" LIFT STAGE 6 SUSPENSION SYSTEM BILLET W/ LEAF PACKS

ICON suspension systems lift your GM 2500/3500 HD while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

The included ICON billet aluminum upper control arm kit is designed to improve overall performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, improved suspension component clearance, and when paired with the extended travel front shocks, increases wheel travel over the OEM configuration to maximize suspension performance. Additionally, replacing the OE ball joint with the serviceable and rebuildable ICON Delta Joint Pro HD allows for full bump and droop travel of the front suspension while eliminating bind. The included torsion keys install onto the factory torsion bars and allow for 2-3.5” of front lift height adjustment to allow for a level stance and larger, more aggressive wheel and tire fitment. ICON rear leaf packs provide improved ride quality while maintaining factory rear ride height. These full replacement leaf back lowers the rear spring rate approximately 20% compared to stock as well as shifts the overload transition point higher in the suspension travel to improve small bump compliance. While driving the construction site or trails to your favorite dirt bike location, ICON wants you to get there in comfort, just like your drive to work.

• Adjustable for 2-3.5” of front lift height over stock
• Vehicle specific tuned 2.5 Aluminum Series remote reservoir front and piggyback reservoir rear shocks for superior shock damping and control
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Improved ride quality and suspension performance over stock
• Billet aluminum Delta Joint Pro HD UCAs allow for additional caster/camber adjustment
• Forged steel torsion keys
• Front wheel travel increase of approximately 3" over stock
• Rear leaf springs lower spring rate and increase distance to overload engagement compared to stock to greatly improve rear ride quality
• Leaf springs maintain stock rear ride height for a level stance with the front
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant hard anodized aluminum shock bodies
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
