Icon K73064T - 2019+ GM 1500 1.5-3.5in Stage 4 Suspension System w/Tubular Uca

Icon K73064T - 2019+ GM 1500 1.5-3.5in Stage 4 Suspension System w/Tubular Uca

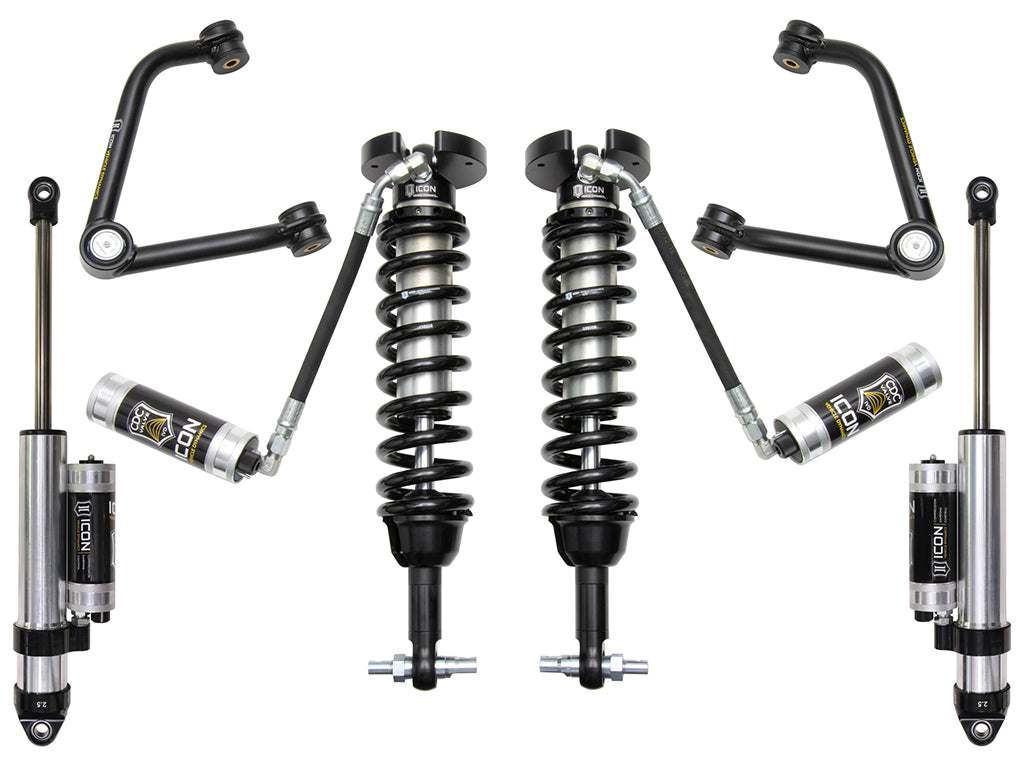

19-23 GM 1500 1.5-3.5" STAGE 4 SUSPENSION SYSTEM W TUBULAR UCA

ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 4 system provides a higher level of performance that will drastically improve overall on and off-road vehicle ride characteristics. The ICON 2.5 Series remote reservoir coilovers and 2.5 Series piggyback rear shocks in this system provide exceptional cooling properties, with the coilovers utilizing ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. Remote reservoirs front and rear ensure optimum performance by increasing the duration of consistent damping, keeping the shocks at a cooler operating temperature during extended offroad use. These 2.5 Series remote reservoir CDCV coilovers are also height adjustable from 1.5-3.5" allowing the use of larger, more aggressive wheel and tire combinations when desired. The ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as optimum performance in the dirt.

• Adjustable coilovers provide 1.5-3.5” of front lift height
• Increased lift height allows for fitment of larger and more aggressive tires
• Fits 2WD/4WD applications
• Up to 35% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• 2.5 Series coilover shocks feature corrosion resistant CAD plated shock body with 7/8" shaft
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 7.5” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and revalvable
• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Direct bolt-in makes for a simple and straightforward installation
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
