Icon K73063T - 2019+ GM 1500 1.5-3.5in Stage 3 Suspension System w/Tubular Uca

Icon K73063T - 2019+ GM 1500 1.5-3.5in Stage 3 Suspension System w/Tubular Uca

19-23 GM 1500 1.5-3.5" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA

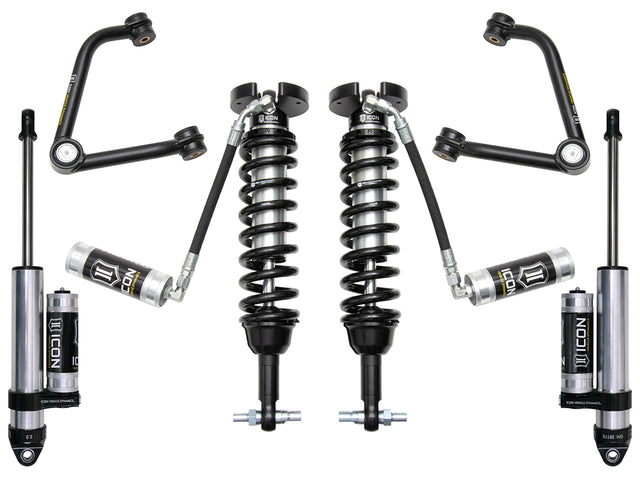

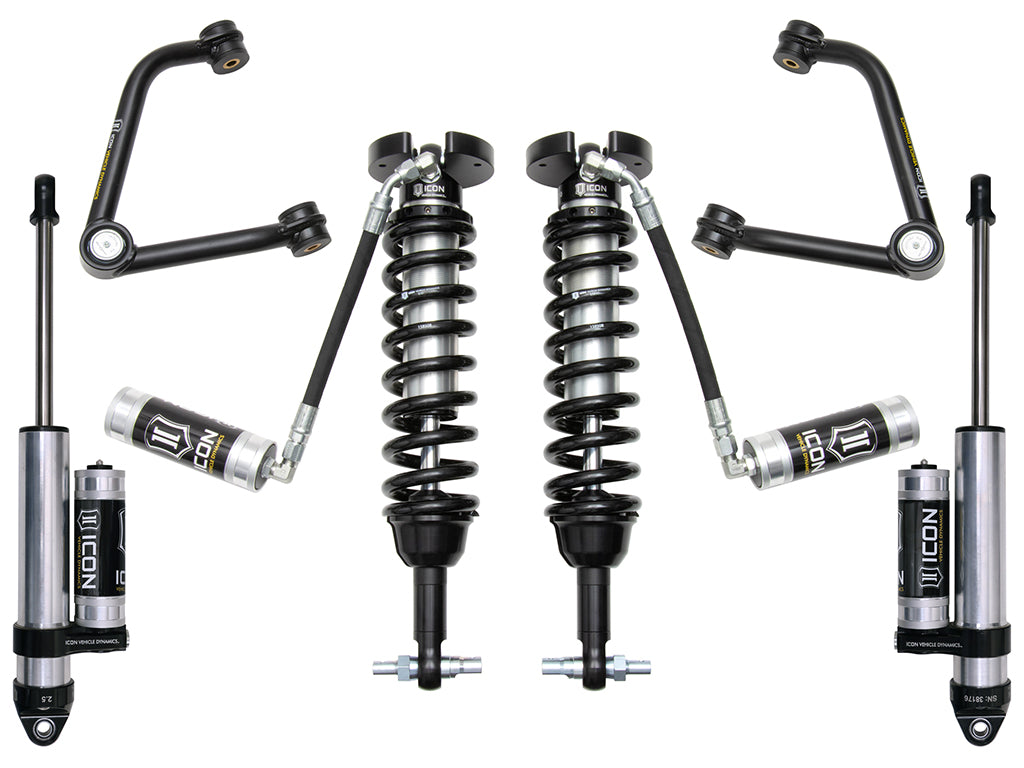

ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 3 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.5-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Adjustable coilovers provide 1.5-3.5” of front lift height
• Increased lift height allows for fitment of larger and more aggressive tires
• Fits 2WD/4WD applications
• Up to 35% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• 2.5 Series coilover shocks feature corrosion resistant CAD plated shock body with 7/8" shaft
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 7.5” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and revalvable
• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Direct bolt-in design makes for a simple and straightforward installation
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
