Icon K63206 - 2023-2025 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 6 Coilover Conversion System with 4-Link
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

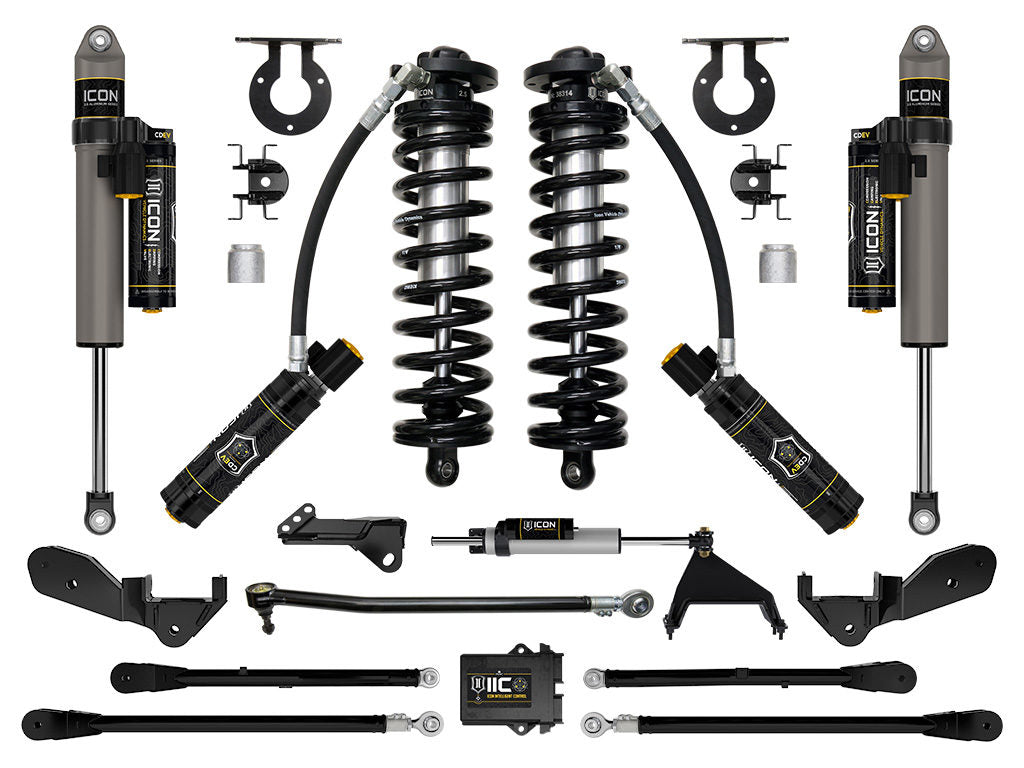

Icon K63206 - 2023-2025 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 6 Coilover Conversion System with 4-Link
23-25 FORD F250/F350 2.5-3" STAGE 6 COILOVER CONVERSION SYSTEM W/ 4-LINK
This ICON Vehicle Dynamics 2.5-3” coilover system is a great way to lift your 4WD 2023-2026 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 6 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. ICON's Stage 6 System is comprised of ICON 2.5 Series CDEV remote reservoir coilovers with adjustable ride height, ICON 2.5 Centerline Steering Stabilizer, fabricated radius arms, on-vehicle adjustable front track bar, and ICON CDEV 2.5 Aluminum Series piggyback reservoir rear shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improving performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 2.5-3" of lift
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Shocks are fully rebuildable and revalveable
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Track bar drop bracket reduces track bar angle and corrects bump steer geometry
- Adjustable track bar ensures proper axle placement and improves handling
- ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
- ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
- ICON engineered coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
