Icon K63172L - 23-24 Ford F250/F350 Super Duty 4WD 4-5.5in Stage 2 Lift Coilover Conv System W/ Exp Packs

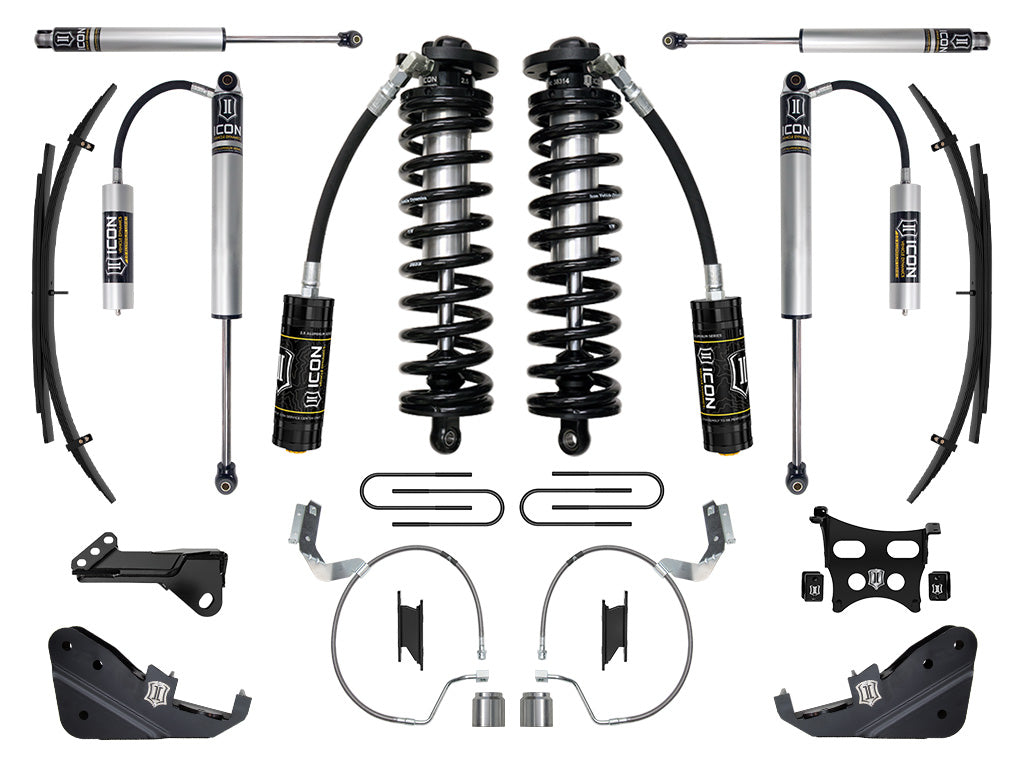

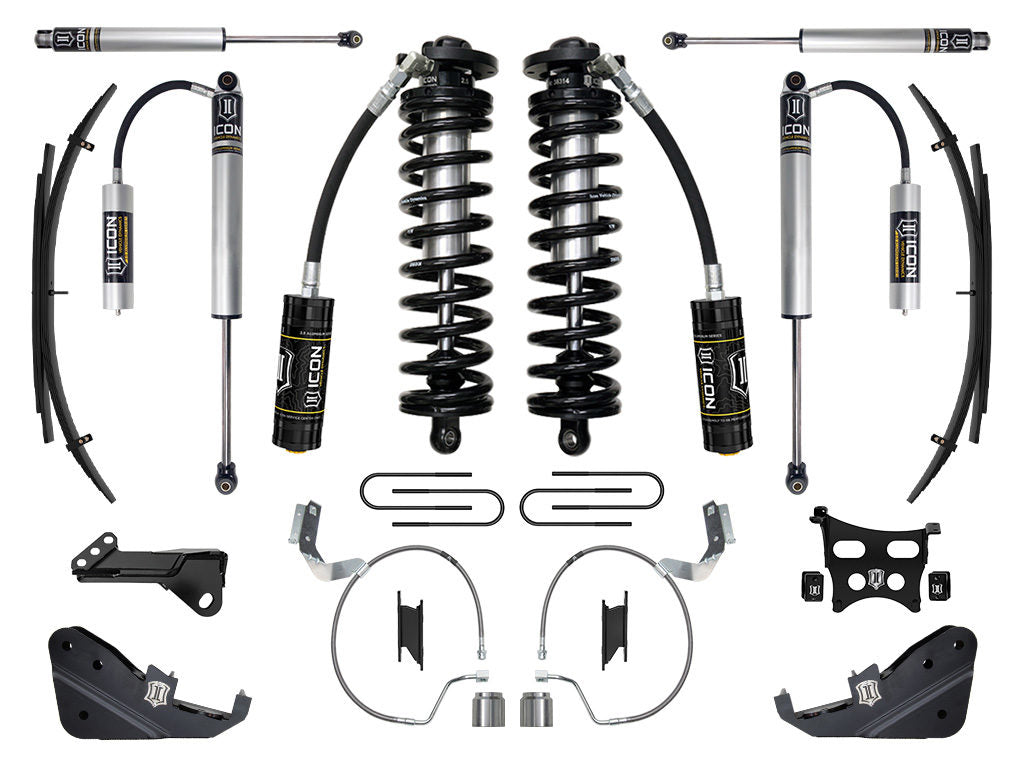

23-25 FORD F250/F350 4-5.5" STAGE 2 COILOVER CONVERSION SYS W/ EXPANSION PACKS
ICON 4.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
ICON's 4-5.5” Lift Stage 2 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. ICON’s dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.0 Aluminum Series remote reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.
- Fits 2023-2025 F-250 / F-350 4WD applications
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
- Vehicle-specific shock valving provides unparalleled ride quality and control
- ICON 2.0 Aluminum Series remote reservoir rear shocks
- Increased wheel travel and ride quality over stock
- Radius arm drop brackets correct geometry and caster for optimal alignment specs
- Track bar drop bracket reduces track bar angle and corrects bump steer geometry
- Dual steering stabilizer kit offers increased steering damping
- Stainless steel braided front brake lines
- Leaf spring expansion packs improve ride quality and provide 2" of rear lift
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Corrosion resistant anodized steering stabilizer and rear shock bodies with 5/8" shafts
- Shocks are fully rebuildable and re-tunable
- Lifetime guarantee against coil spring breakage or sagging
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
