Icon K6204 - 2017-2022 Ford F-250/F-350 Super Duty 4WD, Ultimate Front End Kit, Stage 4
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
Icon K6204 - 2017-2022 Ford F-250/F-350 Super Duty 4WD, Ultimate Front End Kit, Stage 4

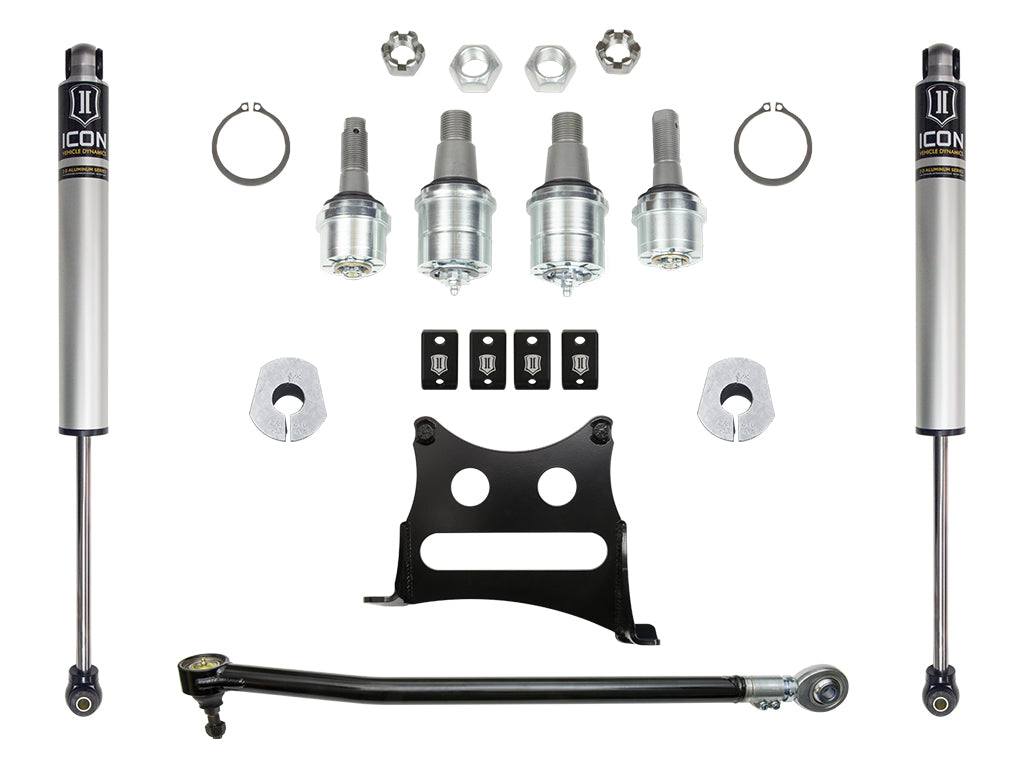

17-22 FORD F250/F350 STAGE 4 ULTIMATE FRONT END KIT
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components.
Being able to set the Caster and Camber Alignment into proper specifications is critical for balance and stability of your Ford Super Duty. So, to round out the Stage 4 kit is the ICON Vehicle Dynamics' 2005-2024 Ford F-250/F-350 Super Duty Alignment Cam Kit to provide additional caster to align your Super Duty back into factory spec when lifted with our suspension systems. Ford Super Duty Alignment Cams ensure that your vehicles suspension and steering are working in precise coordination, improving overall drivability.

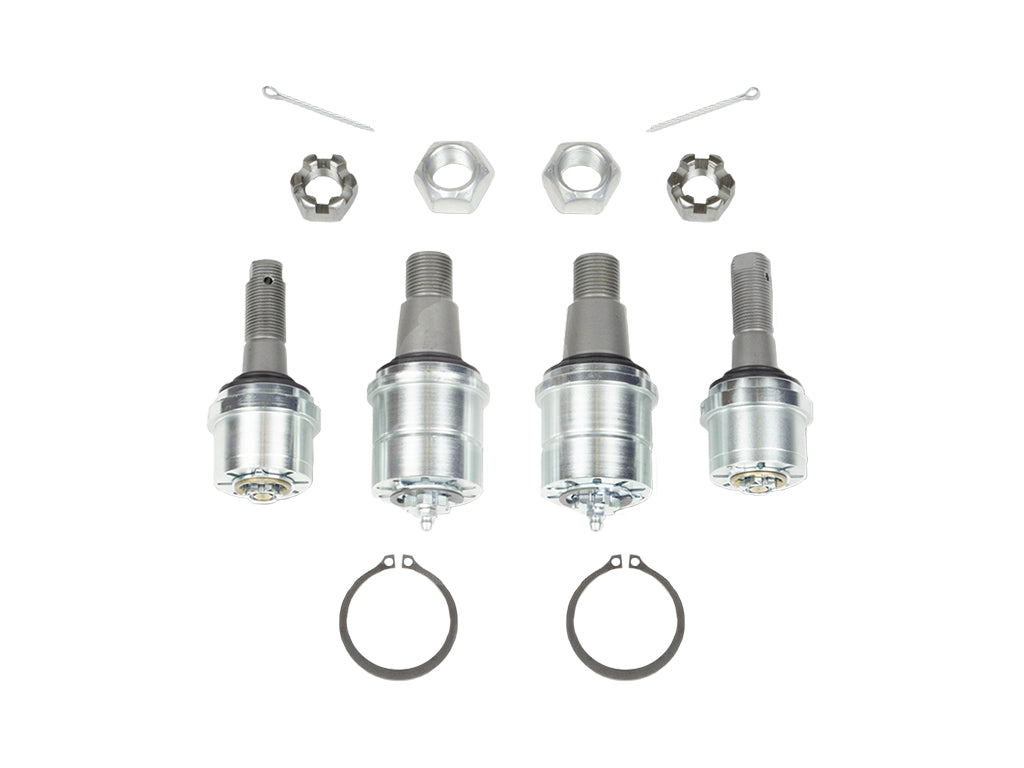

- Full set of genuine Dynatrac front upper and lower ball joints
- Improves steering feel and vehicle control
- CNC machined, high-strength components
- Heat-treated, high-strength billet bodies with chromoly stems
- Heat-treated, precision-ground stainless-steel ball
- Sealed, greaseable design and PTFE coated wear points ensure long service life
- On-vehicle rebuildable design

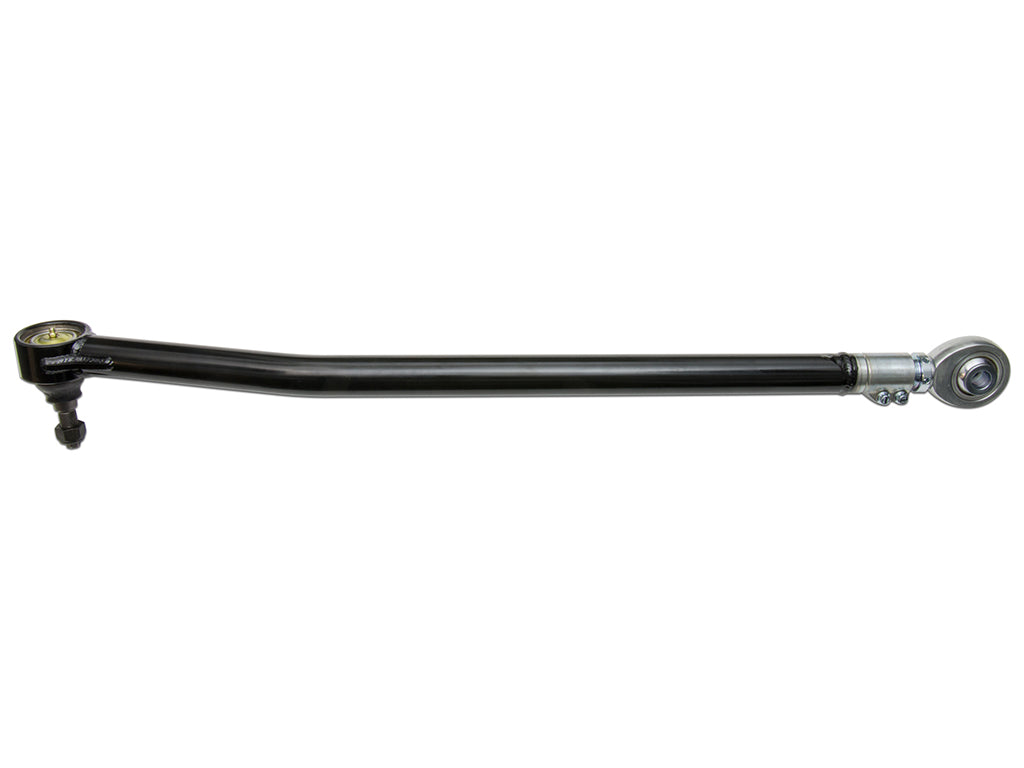

- Adjustable track bar helps to free up bind during front suspension travel and articulation
- Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
- On-vehicle adjustable track bar for precise track alignment using ICON’s double adjuster
- Greaseable and replaceable OE style track bar ball joint
- CNC machined and bent 1.625" X .250" wall 1026 DOM tubing
- Dual opposing stabilizer design eliminates the push/pull sensation associated with traditional stabilizers

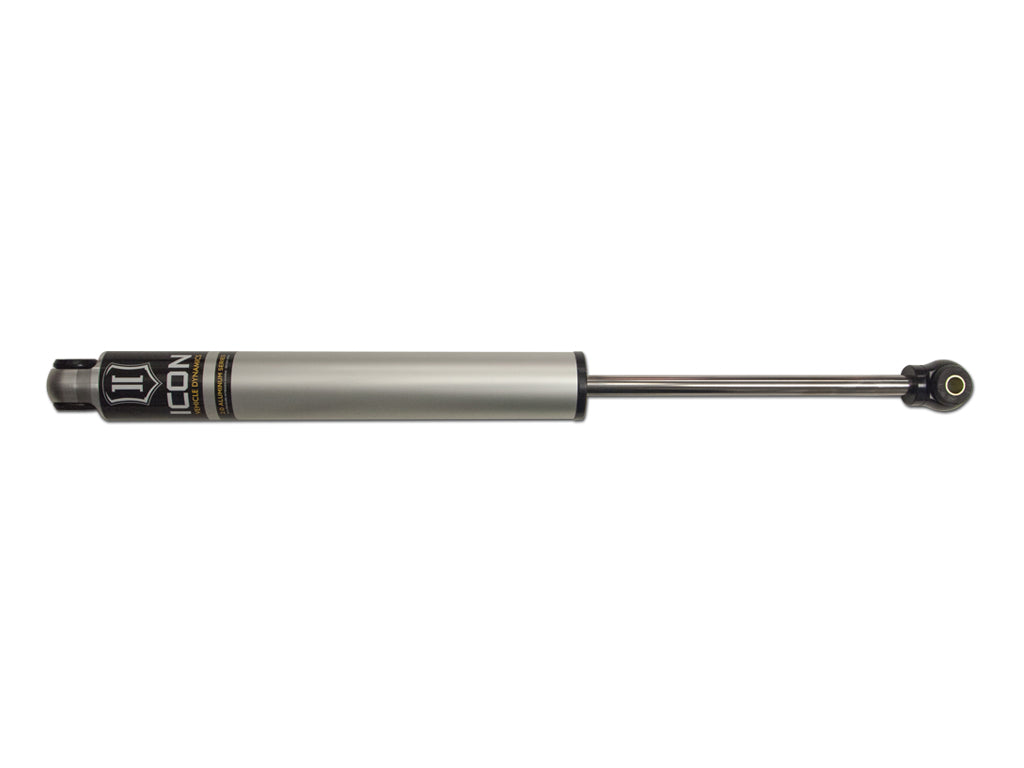

- Dual 2.0 Aluminum Series shocks offer increased steering damping over stock unit
- Provides symmetrical steering feel throughout input range

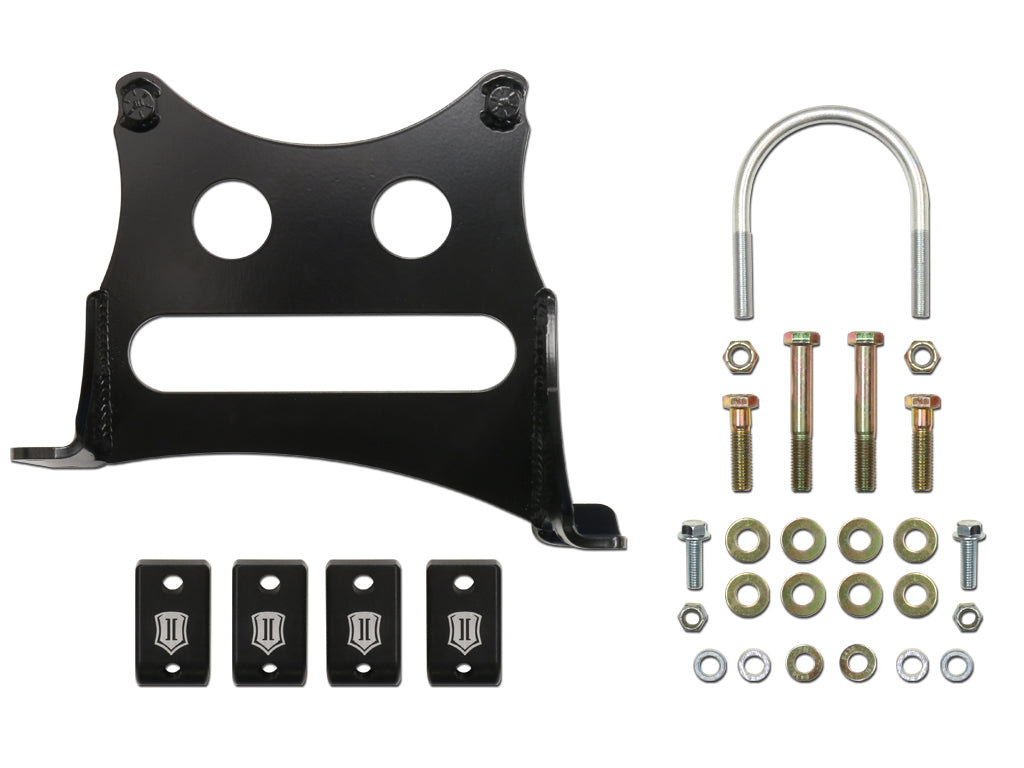

- CNC laser cut steel stabilizer bracket
- 6061 billet aluminum tie rod clamps, anodized for corrosion resistance

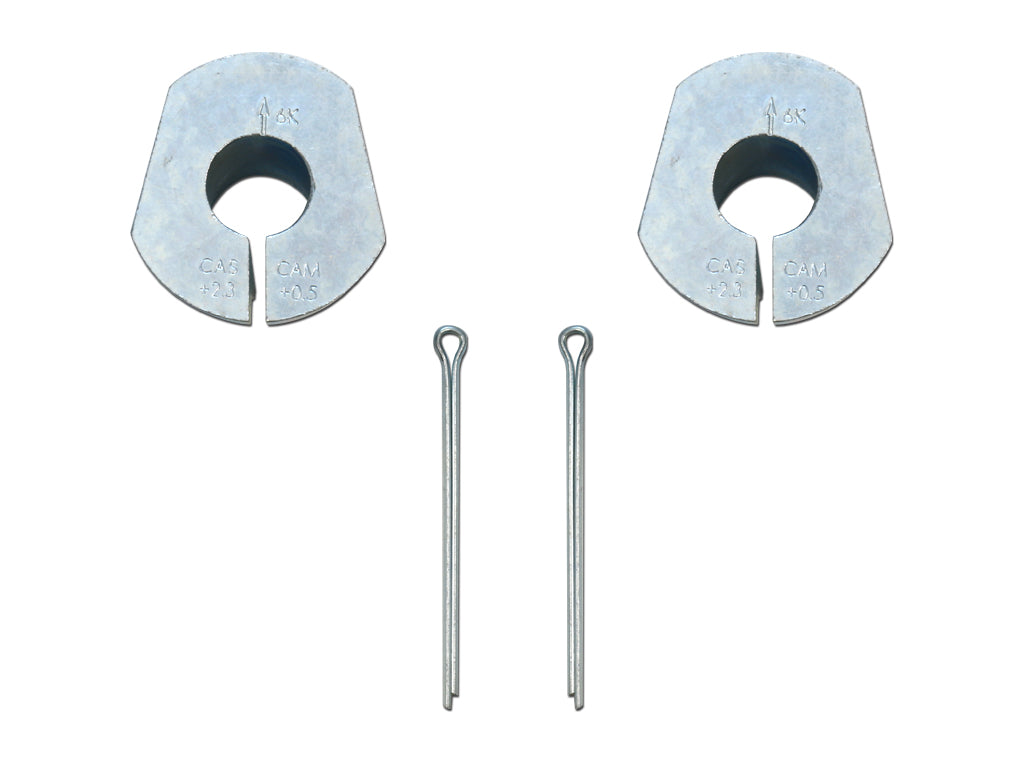

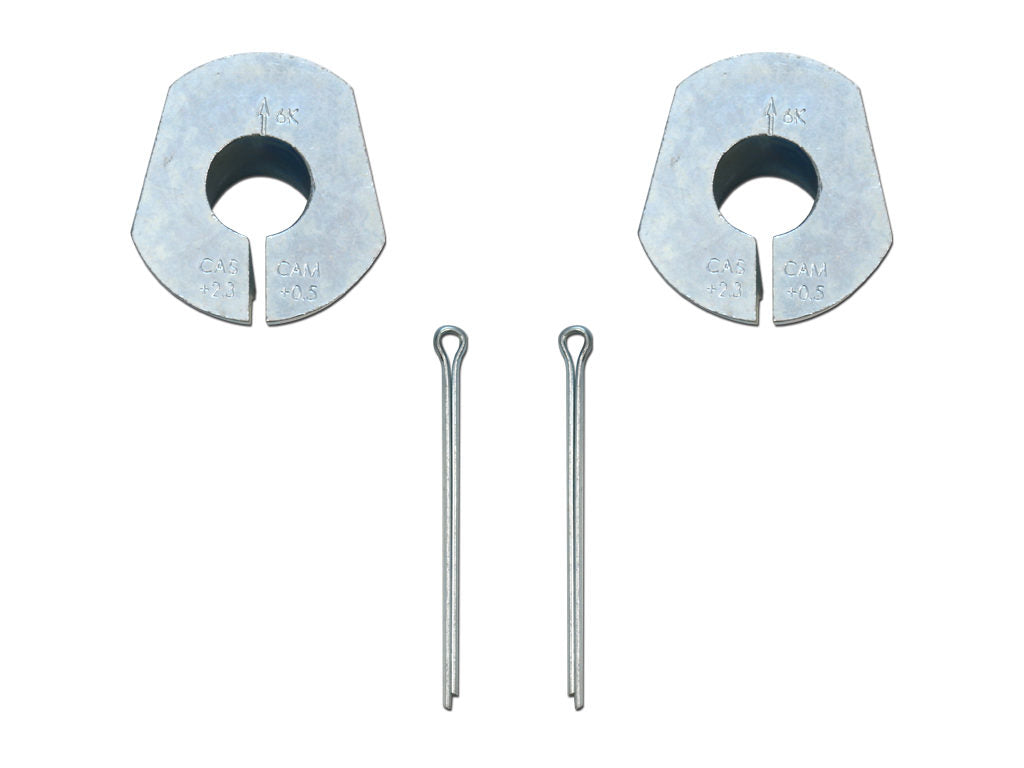

- Alignment cams add 2.3° of caster and .5° of camber over stock
- Ensures proper front-end alignment when installed in conjunction with compatible suspension lifts
- Zinc plated cams for corrosion resistance
- Includes new ball joint cotter pins
