Icon K53392 - 2023-2025 Toyota Sequoia TRD Pro, 1-2.5" Lift, Stage 2 2.5 Suspension System

Icon  |  SKU: ICON-K53392
$2,64780 $2,91258

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Icon K53392 - 2023-2025 Toyota Sequoia TRD Pro, 1-2.5" Lift, Stage 2 2.5 Suspension System

23-25 SEQUOIA TRD PRO 2.5" STAGE 2 SUSPENSION SYSTEM

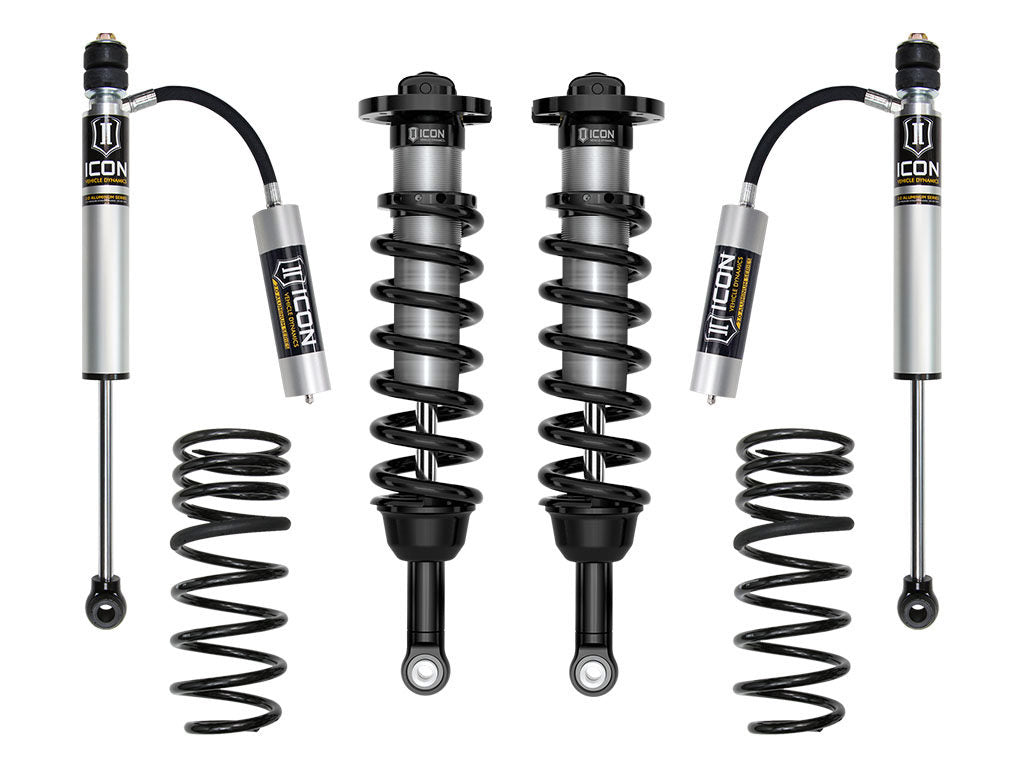

The ICON Stage 2 suspension system for the Sequoia TRD Pro is a full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.

Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

  • Vehicle specific design for 2023-2025 Toyota Sequoia TRD Pro
  • 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
  • Adjustable front ride heights from 1-2.5” of front lift over stock
  • Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
  • Allows for increased wheel travel without overstressing OE components
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
  • All ICON shock absorbers are fully rebuildable and re-tunable
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Bushings Included: Yes
Coil Quantity Front: 2
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Grade Type: Performance
Maximum Lift: 2.5
Maximum Lift Front: 2.5
Maximum Lift Rear: 2
Minimum Lift Front: 1
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
