Icon K53238S - 23-25 Toyota Sequoia, 3-4.5" Lift, Stage 8 Suspension System, Billet, TRD

Icon K53238S - 23-25 Toyota Sequoia, 3-4.5" Lift, Stage 8 Suspension System, Billet, TRD

23-25 SEQUOIA 3-4.5" STAGE 8 SUSPENSION SYSTEM BILLET (TRD)

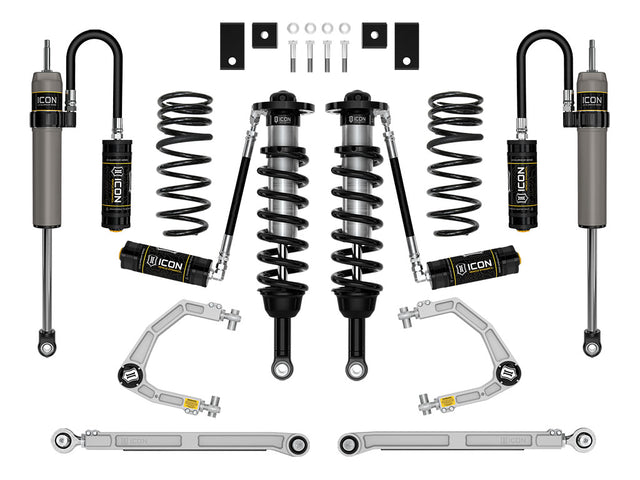

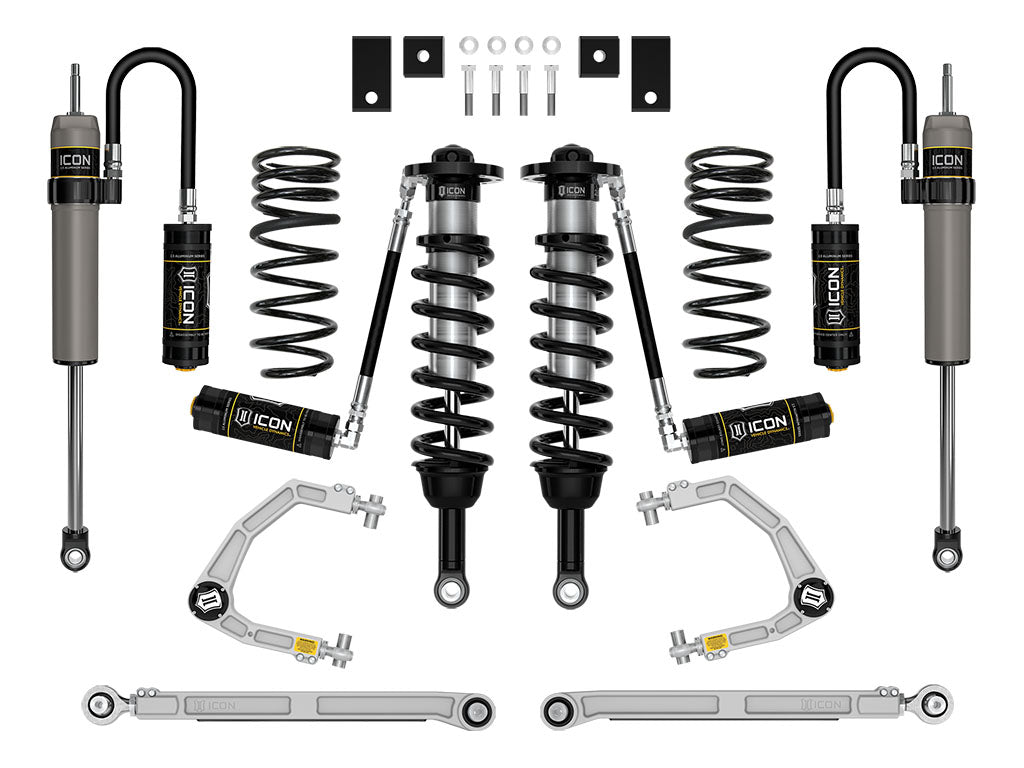

Stage 8 includes 2.5 Series remote reservoir coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. Billet UCAs/links correct alignment and rear coils with 2.5 Series remote res rear shocks balance the tuning.

The ICON Vehicle Dynamics Stage 8 complete suspension system for the 2023-2025 Toyota Sequoia helps to free up the rear suspension movement while gaining strength and ground clearance with the addition of ICON billet aluminum rear lower links. This system offers improved on- and off-road performance, with significantly increased rear shock performance and heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet aluminum rear lower links, a 2.5 Series remote reservoir front coilover shock and billet aluminum front upper control arm combo is included along with a front sway bar drop kit, dual rate rear coil springs and 2.5 Aluminum Series rear remote reservoir shocks.

• Vehicle specific design for 2023-2025 Toyota Sequoia
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 3-4.5” of front lift over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 2" or 4" of rear lift, depending on the vehicle's stock suspension package
• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable
