Icon K53234S - 23-24 Toyota Sequoia 3-4.5in Stage 4 Billet Suspension System (TRD)

Icon K53234S - 23-24 Toyota Sequoia 3-4.5in Stage 4 Billet Suspension System (TRD)

23-25 SEQUOIA 3-4.5" STAGE 4 SUSPENSION SYSTEM BILLET (TRD)

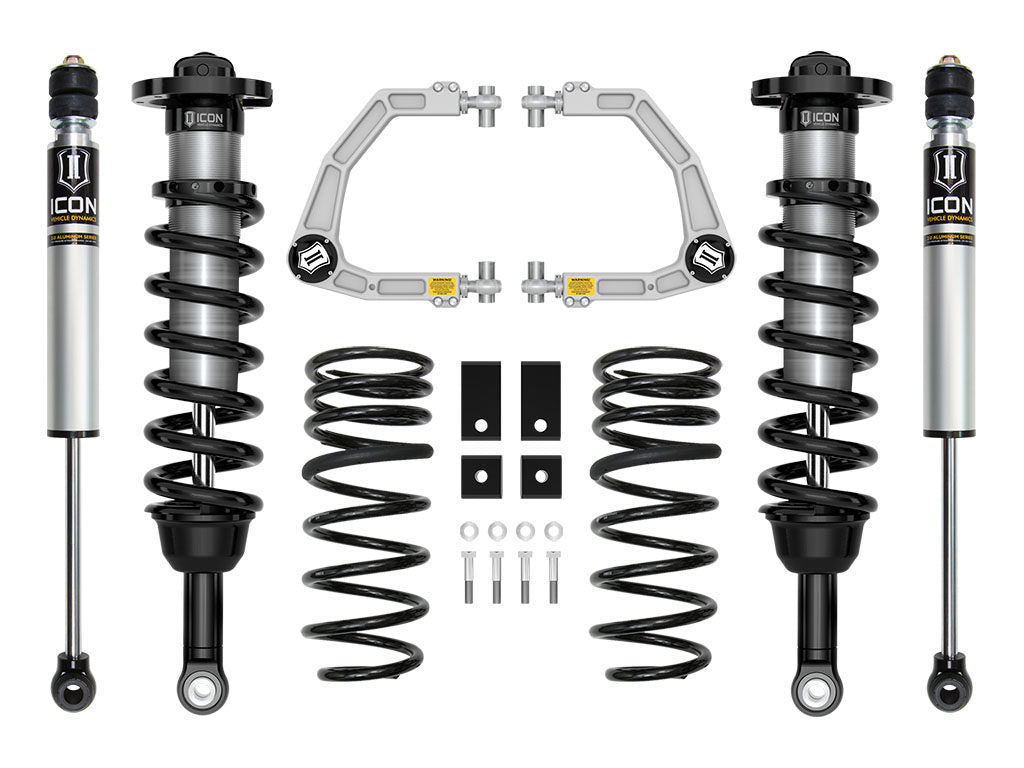

Stage 4 includes a pair of 2.5 Series coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. Billet UCAs provide alignment correction and rear coils with 2.0 Series rear shocks balance the tuning from front to rear.

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of adjustable billet aluminum front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs with front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and billet control arm combo, a sway bar drop kit for the front of the truck is included along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

• Vehicle specific design for 2023-2025 Toyota Sequoia
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 3-4.5” of front lift over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 2" or 4" of rear lift, depending on the vehicle's stock suspension package

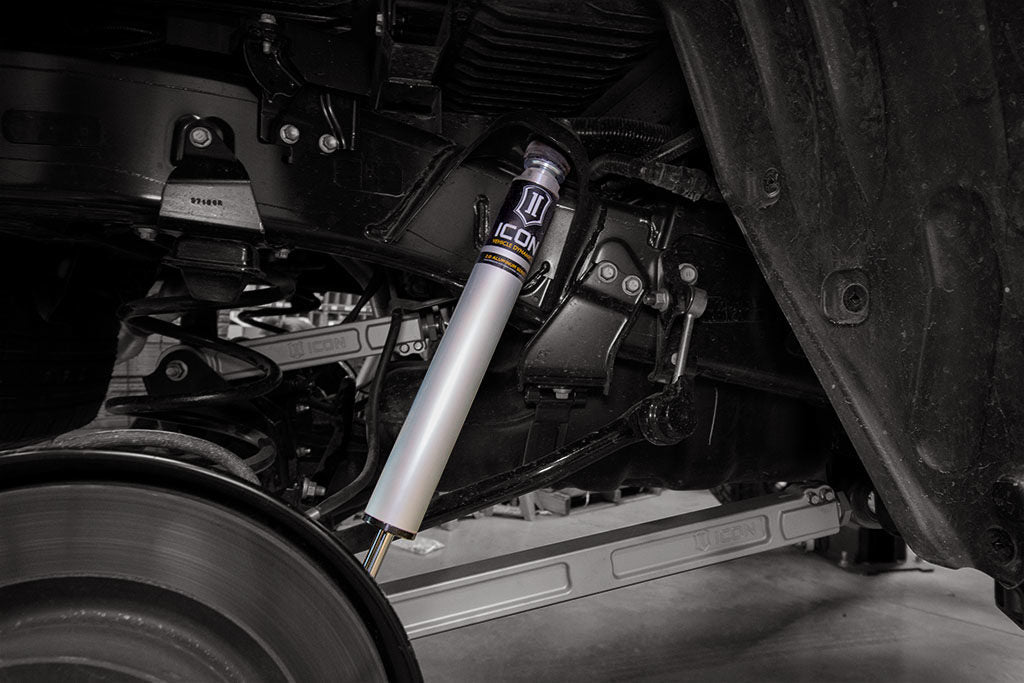

• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
