Icon K53233 - 2023+ Sequoia 3-4" Stage 3 Suspension System

Icon K53233 - 2023+ Sequoia 3-4" Stage 3 Suspension System

23-25 SEQUOIA 3-3.75" STAGE 3 SUSPENSION SYSTEM

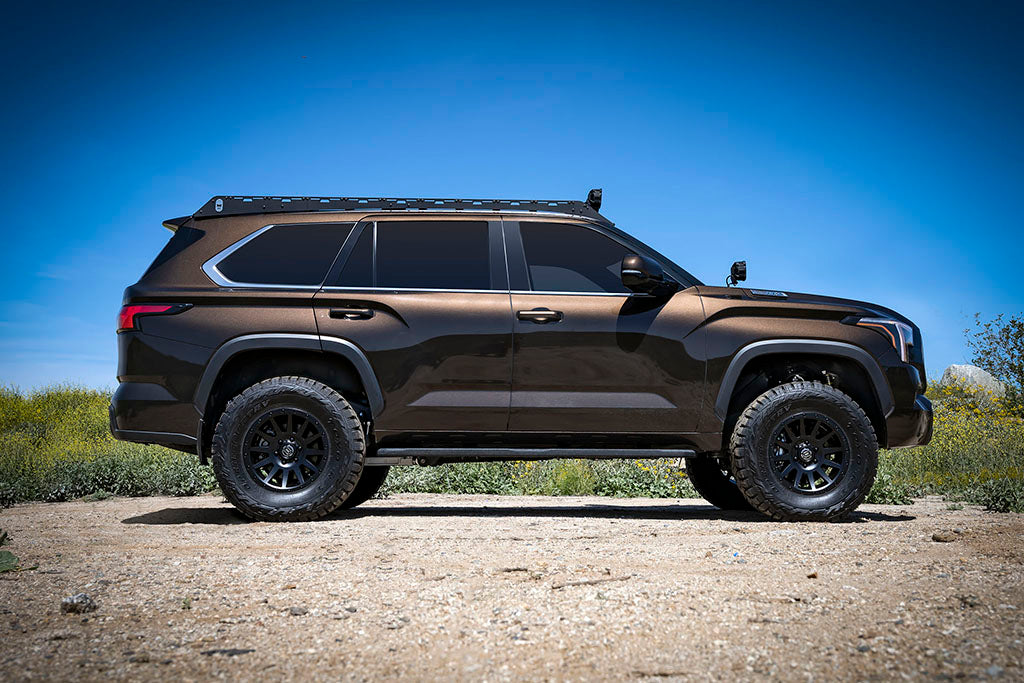

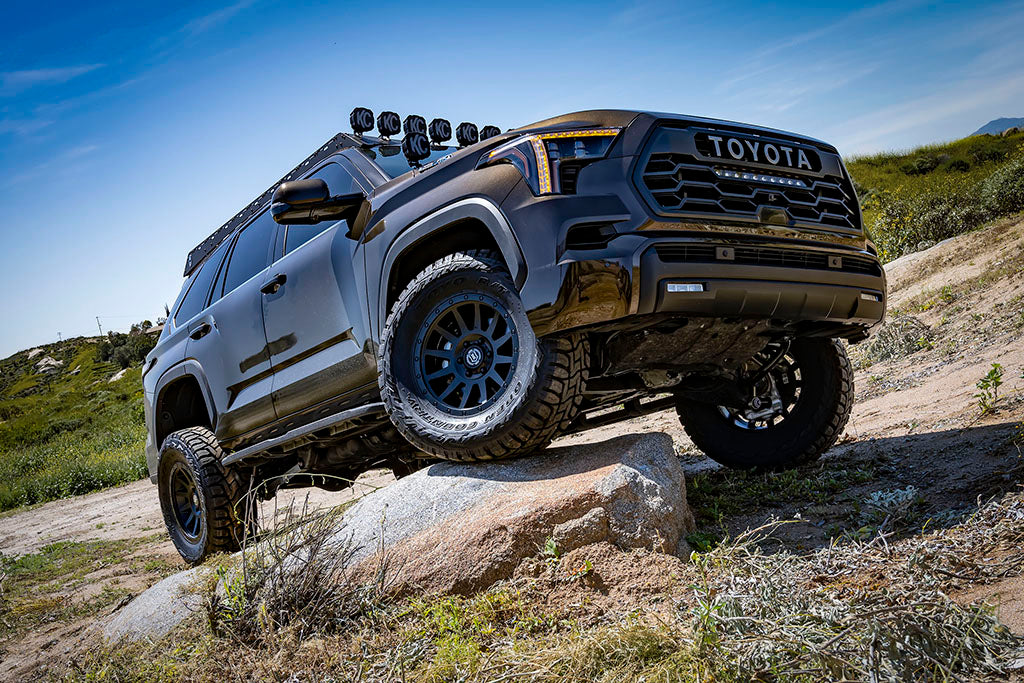

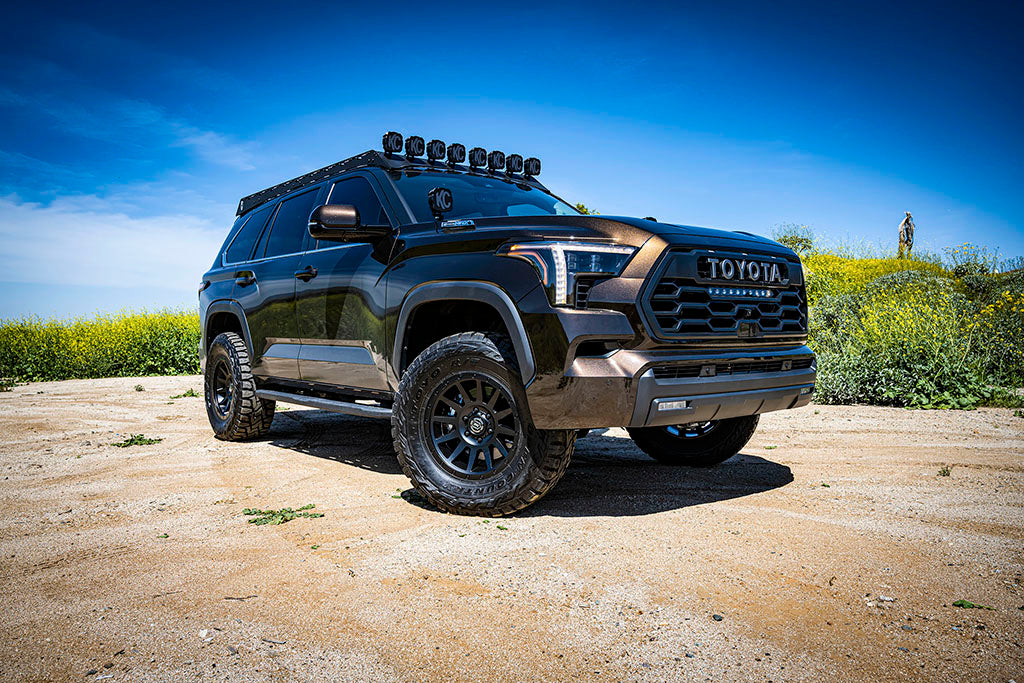

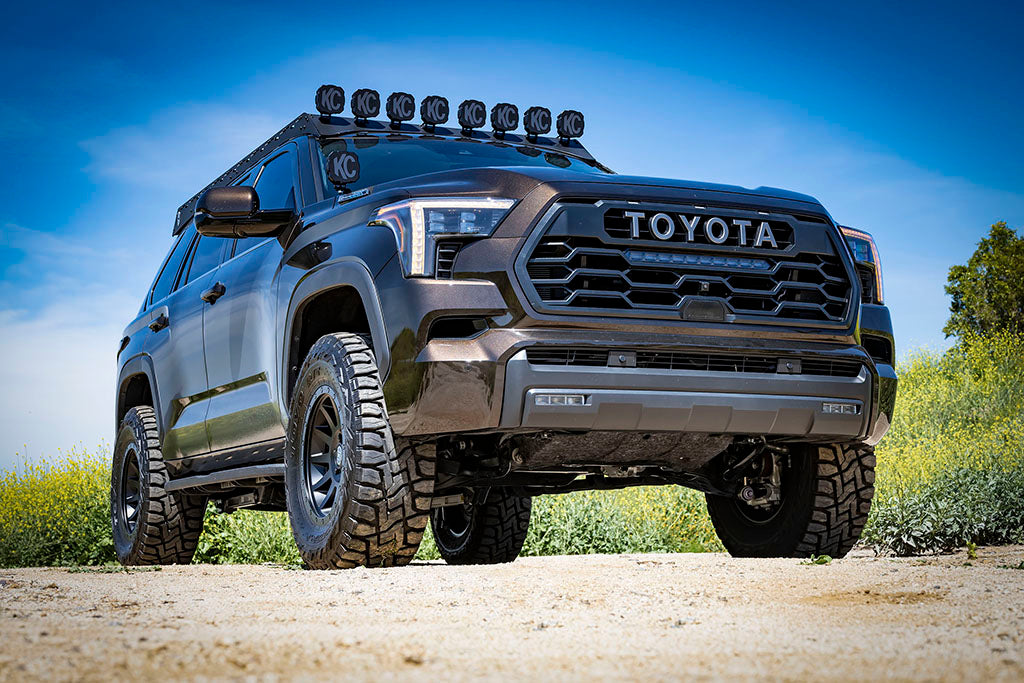

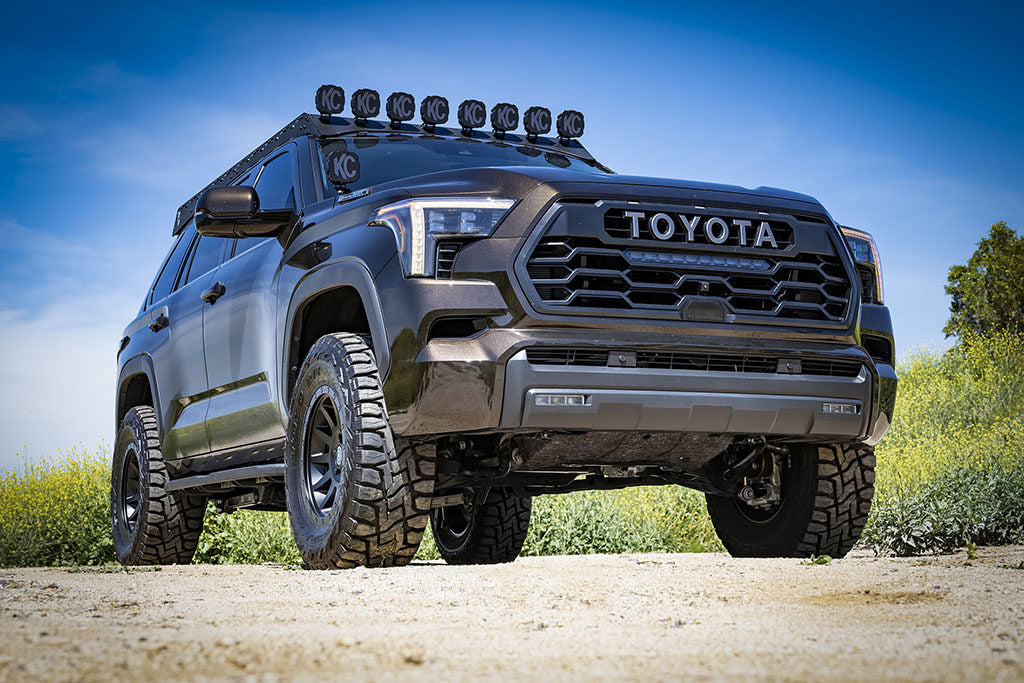

The ICON Stage 3 suspension system for the 23 Sequoia represents full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.

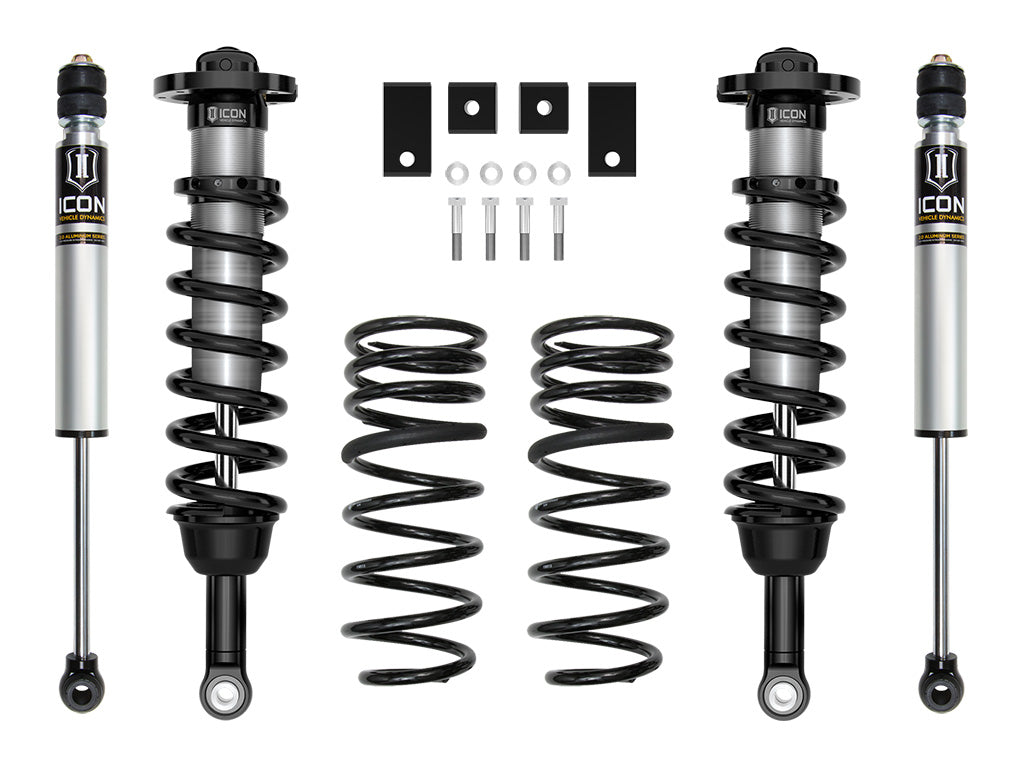

This Stage 3 system features the 2023 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-3.75” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.

• Vehicle specific design for 2023-2025 Toyota Sequoia
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
