Icon K53212TD - 2022-2025 Toyota Tundra, 2-3.25" Lift, Stage 2, 3.0 Suspension System, Tubular, CDXS
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

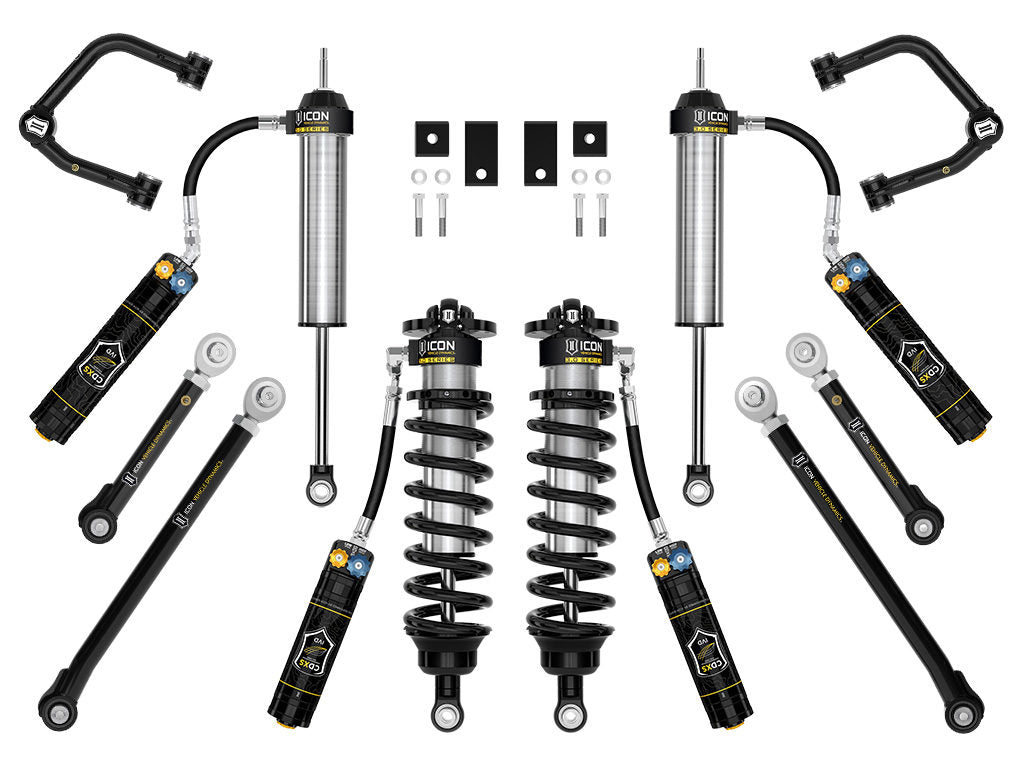

Icon K53212TD - 2022-2025 Toyota Tundra, 2-3.25" Lift, Stage 2, 3.0 Suspension System, Tubular, CDXS
22-26 TUNDRA 2-3.25" STAGE 2 3.0 SUSPENSION SYSTEM TUBULAR CDXS
Stage 1 includes 3.0 remote reservoir coilovers for 1.25-3.25” of front lift, max performance and 35” tire fitment. Tuybular UCAs, billet links and 3.0 Series remote reservoir shocks for balanced shock damping. CDXS for damping adjustment.
Rounding out the Stage 2 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2022-2026 Tundra to yield 20% increase in wheel travel over stock. 3.0 Series shocks also boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDXS, these offer 10 settings of low and high speed compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDXS front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
- Vehicle specific design for 2022-2026 Toyota Tundra
- 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
- Adjustable front ride heights from 2-3.25” of front lift over stock when used with included tubular UCAs
- All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
- 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
