Icon K53211 - 2022+ Toyota Tundra 1.25-3.25in Stage 1 3.0 Suspension System (BILLET)
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.
Couldn't load pickup availability
Description
Description
Icon K53211 - 2022+ Toyota Tundra 1.25-3.25in Stage 1 3.0 Suspension System (BILLET)
22-25 TUNDRA 1.25-3.25" STAGE 1 3.0 SUSPENSION SYSTEM BILLET CDCV

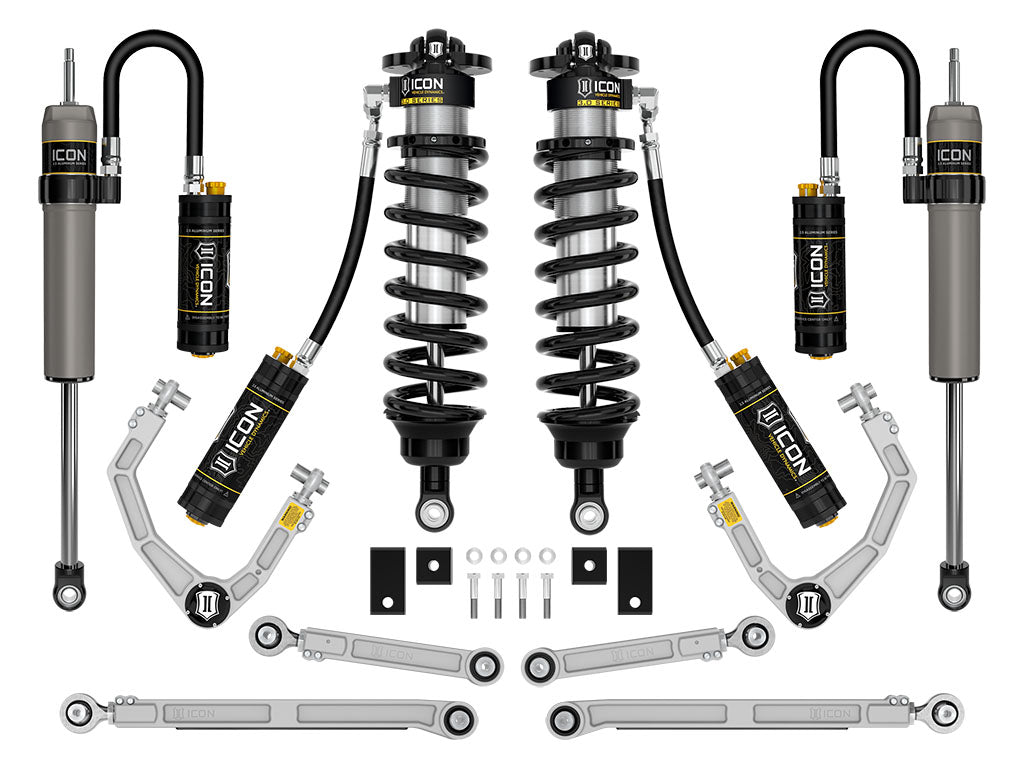

Stage 1 includes 3.0 remote reservoir coilovers for 1.25-3.25” of front lift, max off-road performance and 35” tire fitment. Billet UCAs, links and 2.5 Series remote reservoir shocks for balanced shock tuning. CDCV for damping adjustment.

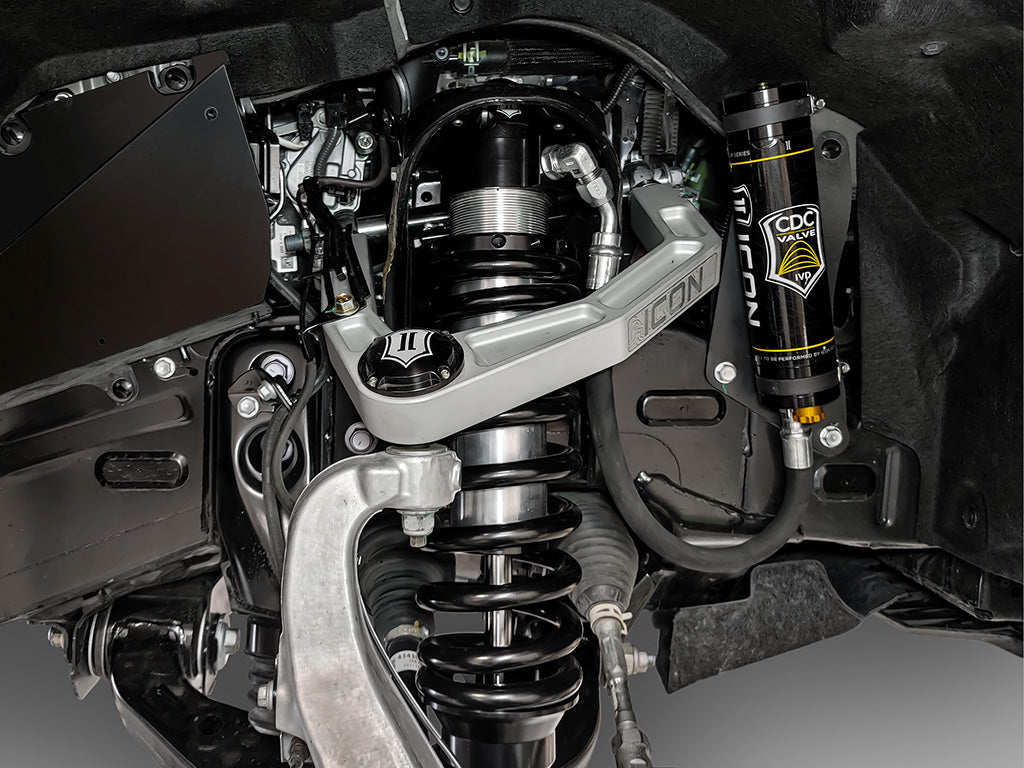

This Stage 1 system features the 2022-2025 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 1.25-3.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
- Vehicle specific design for 2022-2025 Toyota Tundra
- 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
- Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance, 20% increase in wheel travel, and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
