Icon K53204 - 22-23 Toyota Tundra 1.25-3.5in Stage 14 Suspension System - Billet
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
Icon K53204 - 22-23 Toyota Tundra 1.25-3.5in Stage 14 Suspension System - Billet
22-25 TUNDRA 1.25-3.5" STAGE 14 SUSPENSION SYSTEM BILLET

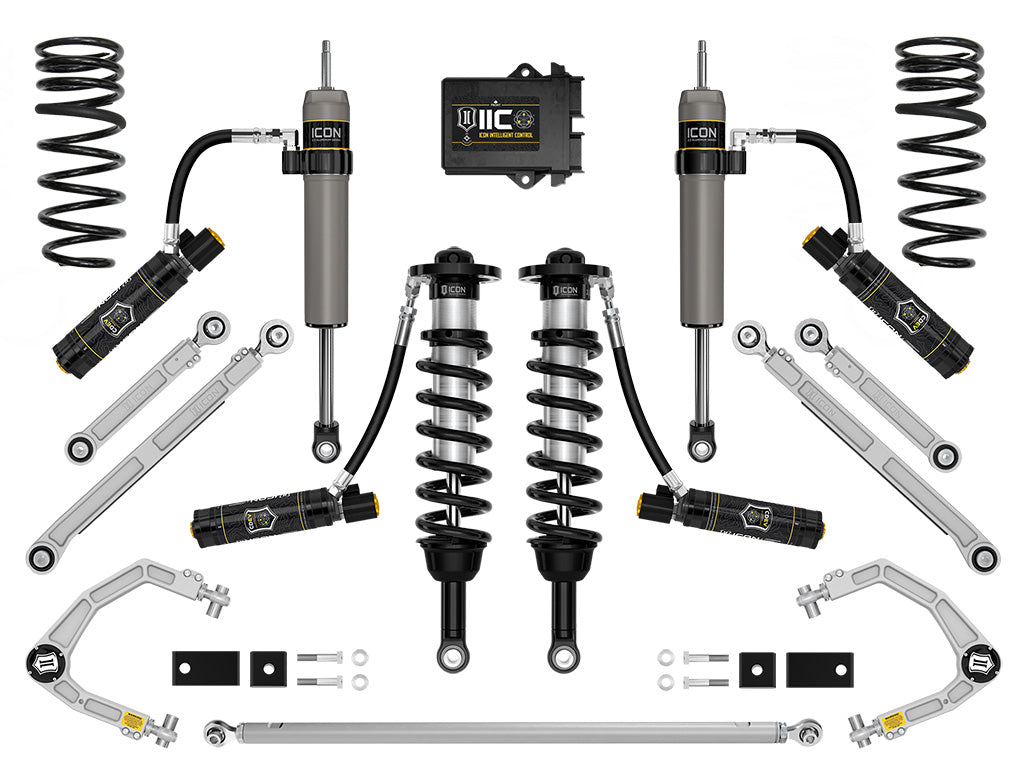

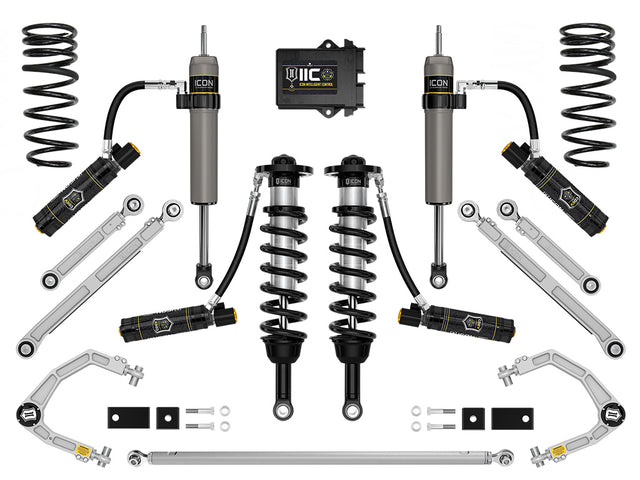

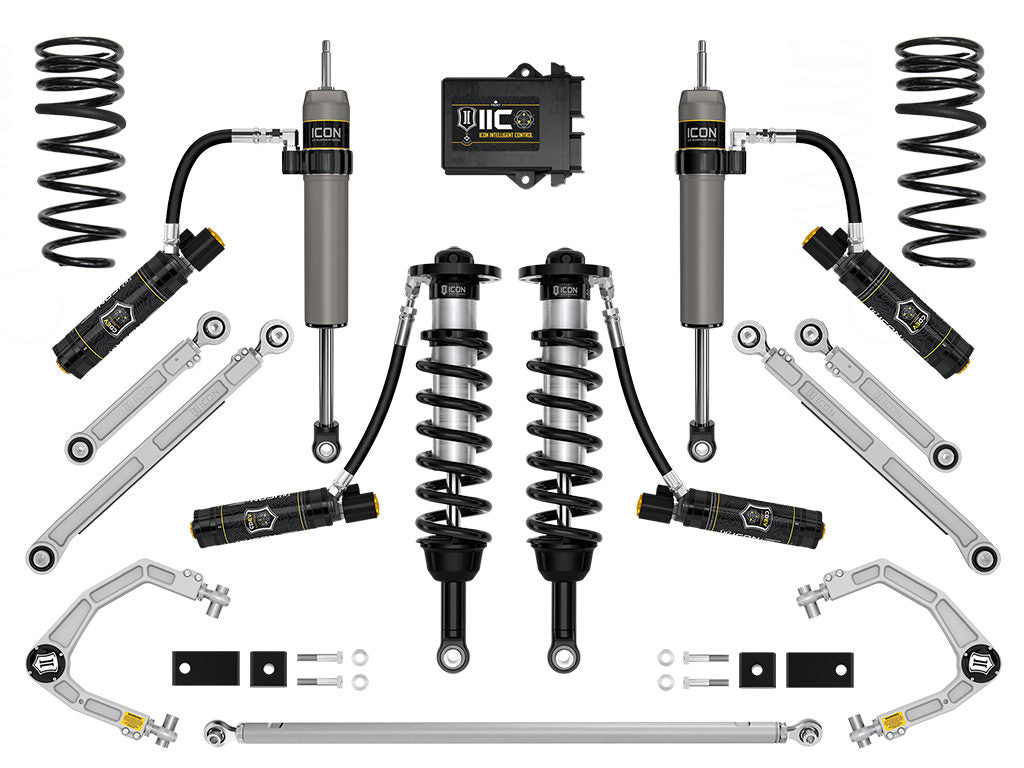

Stage 14 includes remote res coilovers for 1.25-3.5” of lift, performance and 35” tire fitment. Billet UCAs, links, rear coils, track bar, and 2.5 Series remote reservoir shocks for balanced shock tuning. CDEV for active damping adjustment.

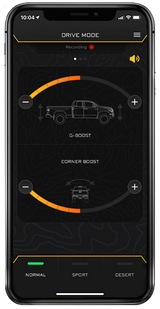

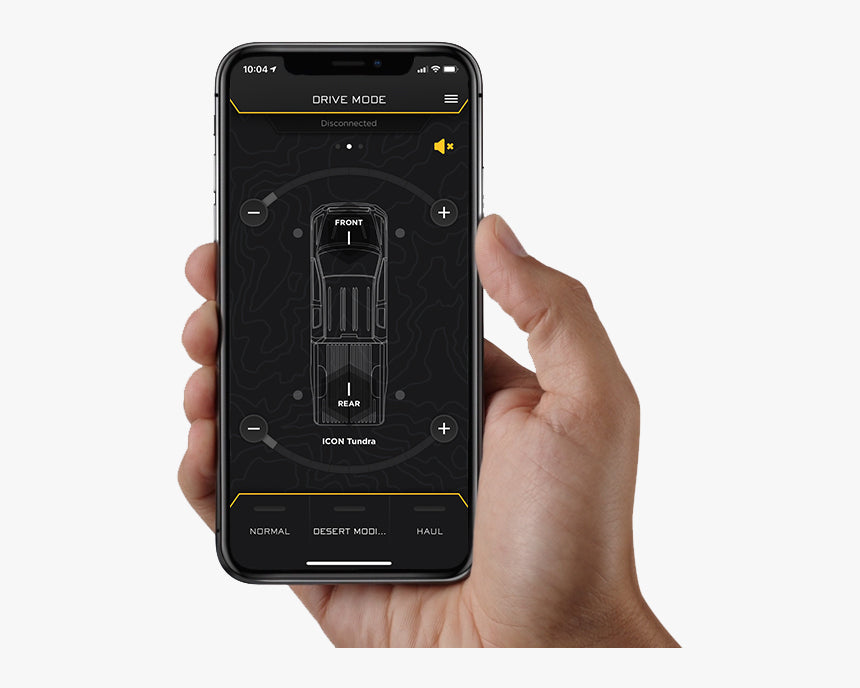

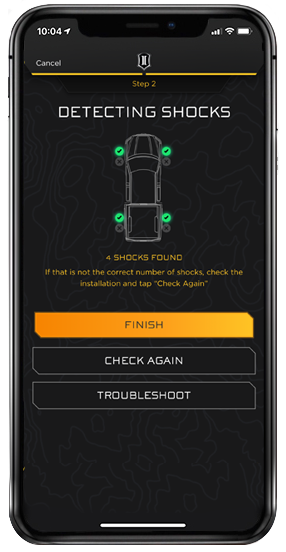

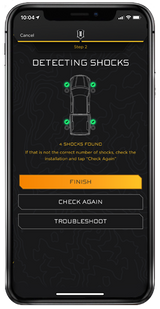

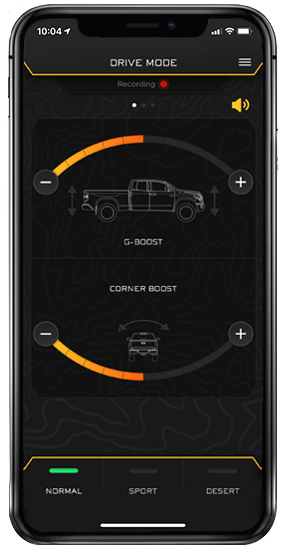

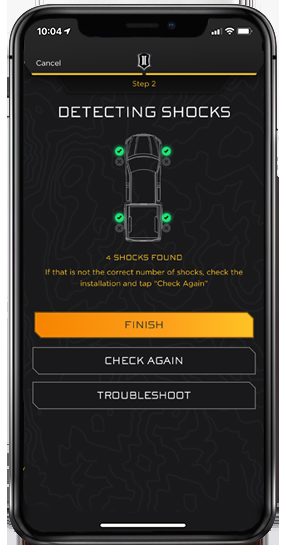

This Stage 14 system features the 2022-2025 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.
- Vehicle specific design for 2022-2025 Toyota Tundra
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 1.252-3.5” of front lift over stock when used with included billet aluminum UCAs
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

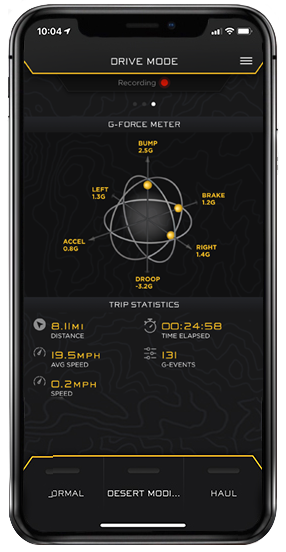

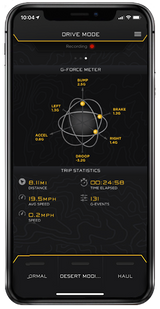

- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models)
- On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
