Icon K53202T - 22-23 Toyota Tundra 2-3.5in Stage 12 Suspension System
22-26 TUNDRA 2-3.5" STAGE 12 SUSPENSION SYSTEM TUBULAR
Stage 12 includes remote reservoir coilovers for 1.25-3.5” of front lift, better off-road performance and 35” tire fitment. Tubular UCAs for alignment and 2.5 Series remote reservoir rear shocks. CDEV/IIC for active damping adjustment.

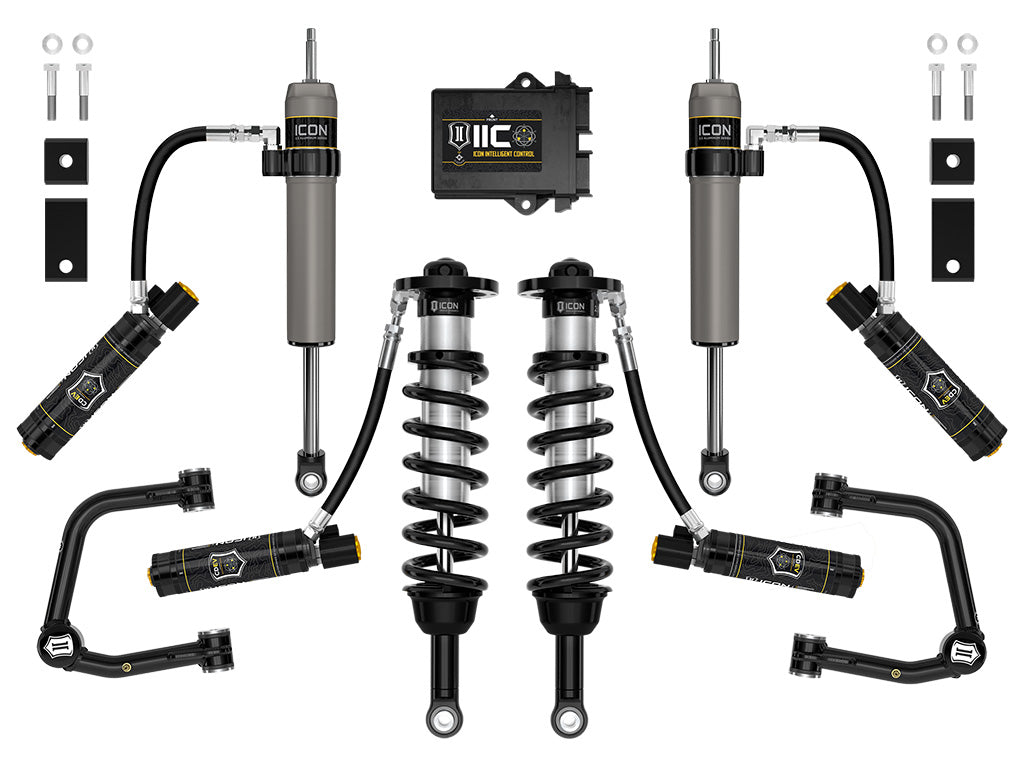

This Stage 12 system features the 2022-2025 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDEV. These adjustable coilovers allow up to 2-3.5” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
- Vehicle specific design for 2022-2026 Toyota Tundra
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

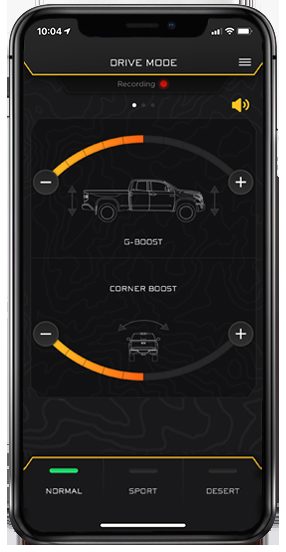

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

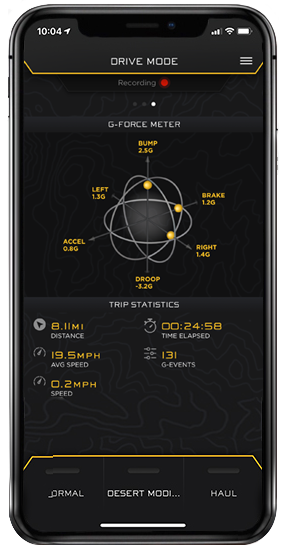

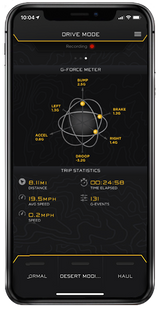

- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
