Icon K53199TD - 2022-2025 Toyota Tundra, 2-3.5" Lift, Stage 9, 2.5 Suspension System, Tubular, CDXS

Icon K53199TD - 2022-2025 Toyota Tundra, 2-3.5" Lift, Stage 9, 2.5 Suspension System, Tubular, CDXS

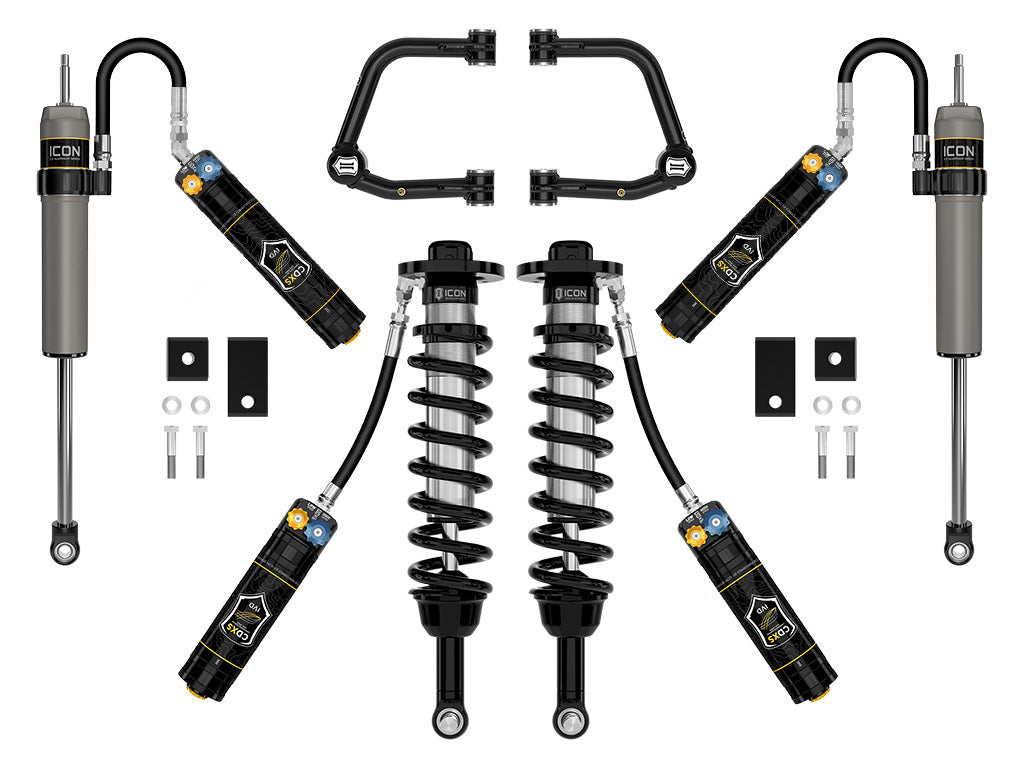

22-25 TUNDRA 2-3.5" STAGE 9 SUSPENSION SYSTEM TUBULAR CDXS

Stage 9 includes remote reservoir coilovers for 1.25-3.5” of front lift, better off-road performance and 35” tire fitment. Tubular UCAs 9and 2.5 Series remote reservoir rear shocks for balanced shock tuning. CDXS for damping adjustment.

Rounding out the Stage 9 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDXS, these offer 10 settings of low and high speed compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series CDXS front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

• Vehicle specific design for 2022-2025 Toyota Tundra
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable
