Icon K53162D - 2005-2023 Toyota Tacoma, Stage 2 RXT Suspension System, CDXS
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

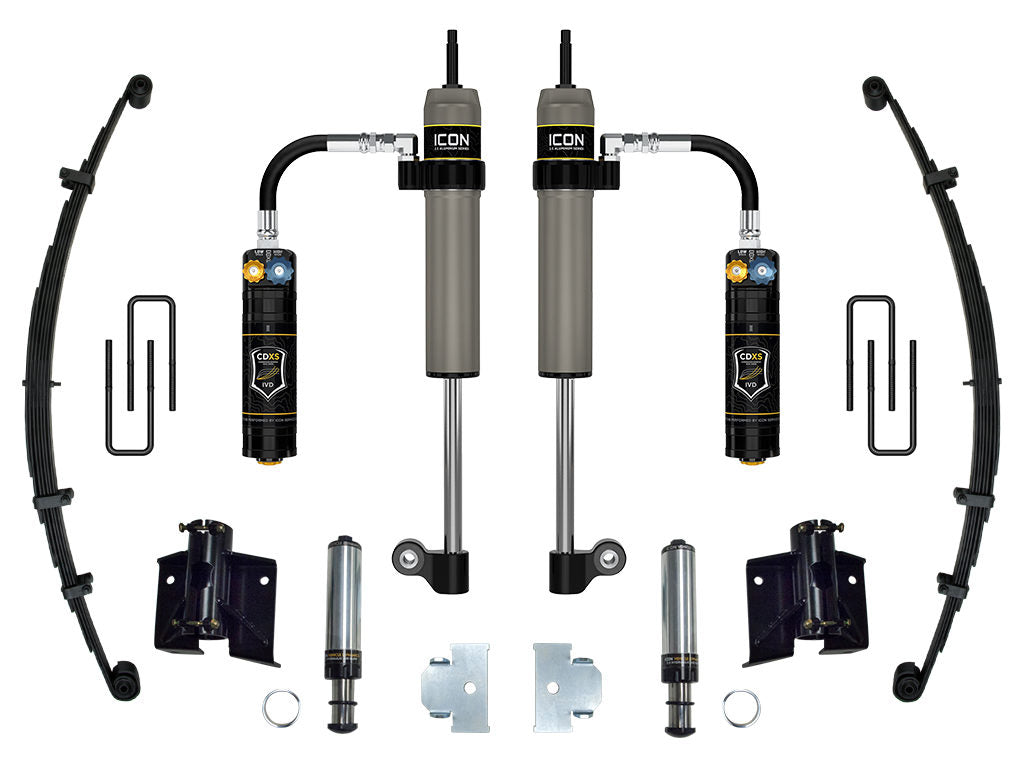

Icon K53162D - 2005-2023 Toyota Tacoma, Stage 2 RXT Suspension System, CDXS
05-23 TACOMA RXT STAGE 2 SYSTEM CDXS
Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-2023 Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.
- ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
- ICON RXT Rear Shock: Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
- ICON RXT Rear Shock: ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
- ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
- ICON RXT Rear Shock: Simple and straightforward installation
- ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
- ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 ¼” CNC machined nitro steel shaft
- ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
- ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
- ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
- ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
- ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
- ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
- ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
- ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
- ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install

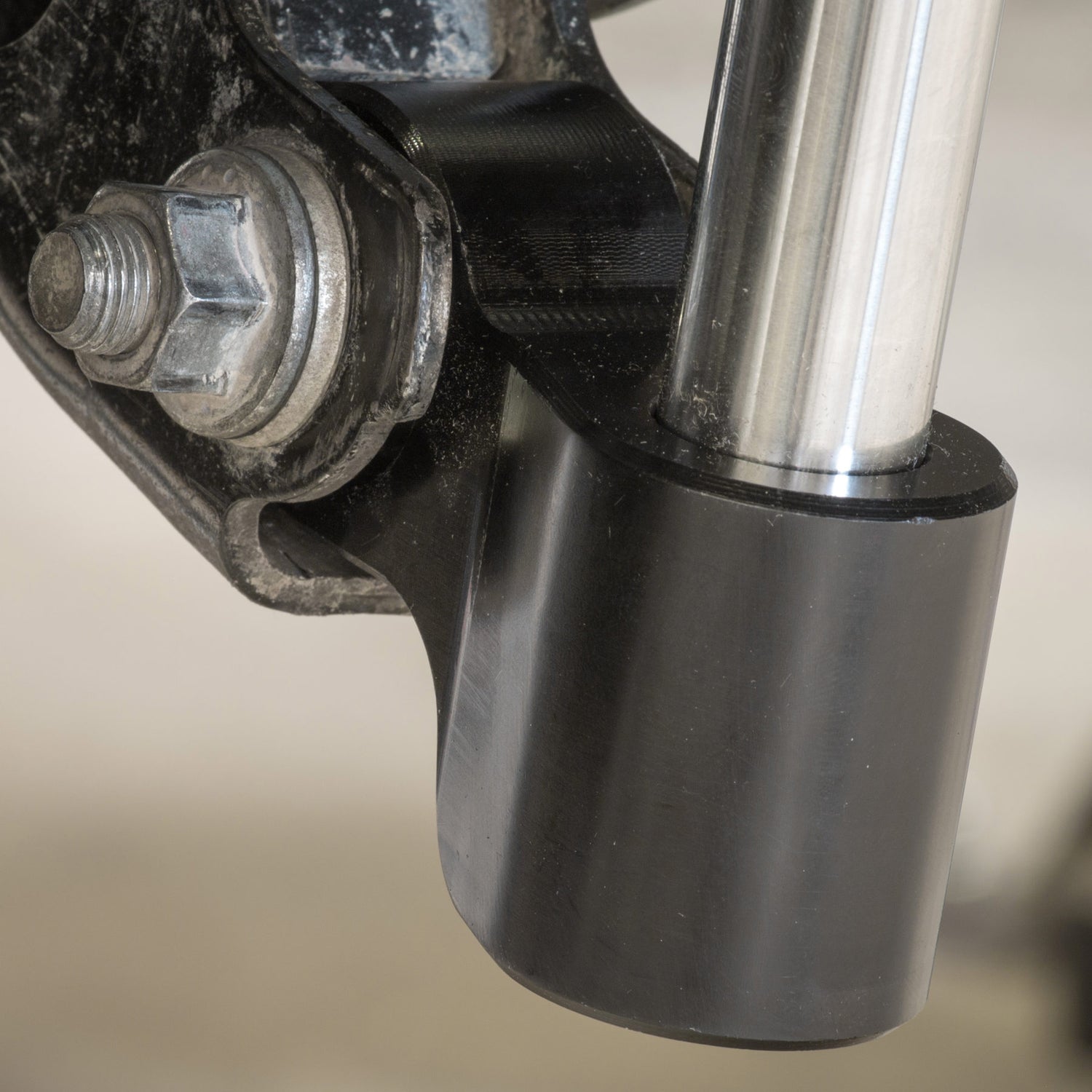

- ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
- ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
