Icon K214521A - 2014+ Ram 2500 4WD 4.5in Stage 1 Suspension System (Air Ride)

Icon  |  SKU: ICON-K214521A
$3,37380 $3,54249

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Icon K214521A - 2014+ Ram 2500 4WD 4.5in Stage 1 Suspension System (Air Ride)

14-26 RAM 2500 4WD 4.5" STAGE 1 SUSPENSION SYSTEM (AIR RIDE)

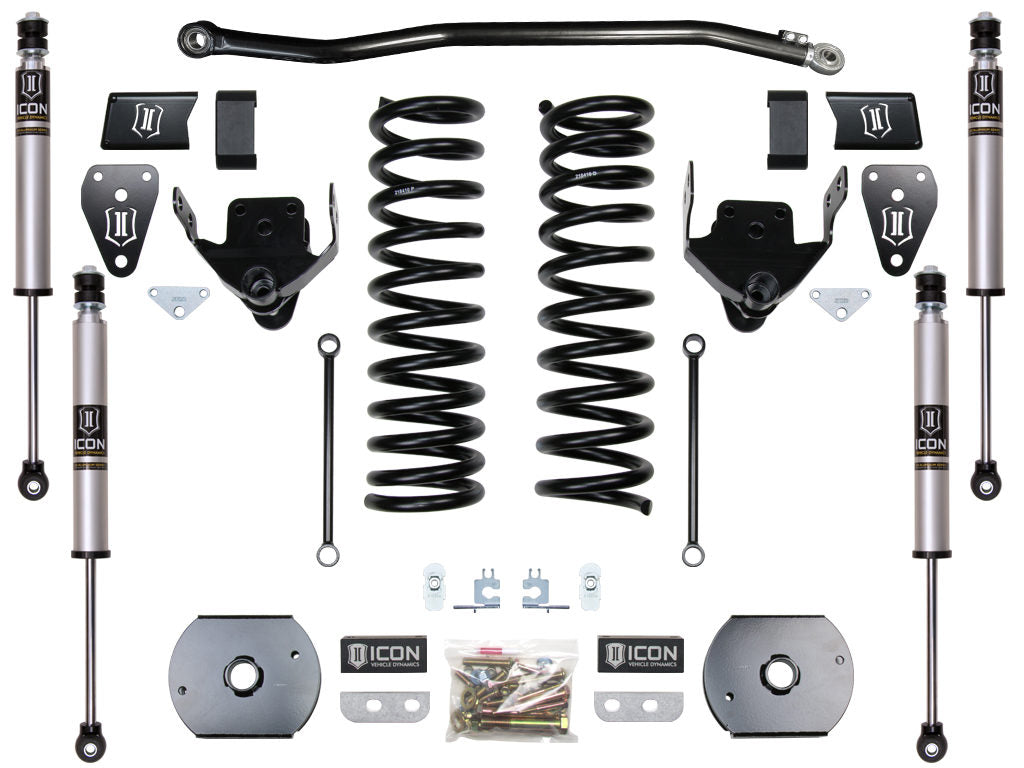

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 1 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.0 Aluminum Series shocks help deliver balanced performance front to rear, making it the perfect suspension system for any 2014-UP Ram 2500 4WD that's tasked with daily driving, towing, and light off-road use. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components while also allowing for rear ride height adjustability.

  • ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
  • Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
  • Vehicle specific tuned front and rear 2.0 Aluminum Series shocks provide superior damping and ride quality
  • Increased wheel travel and suspension performance over stock with no change in towing capacity
  • Adjustable front track bar realigns front axle and improves strength
  • PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
  • Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
  • Fabricated rear air bag spacers and sensor linkages allow use of stock rear air springs and provide 3.75" of rear lift over stock
  • Level stance from front to rear of vehicle
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Add-On Part: 214211 - 14-UP RAM HD 1.75" CARRIER BEARING DROP KIT
Add-On Part: 214204 - 14-26 RAM 2500 REAR ADJUSTABLE TRACK BAR KIT
Add-On Part: 216520 - 09-26 RAM HD 2.0 STEERING STABILIZER
Add-On Part: 212511 - 19-24 RAM 2500/3500 0-6" LIFT FRONT DRIVE SHAFT
Add-On Part: 212512 - 25-26 RAM 2500/3500 0-6" LIFT FRONT DRIVE SHAFT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Bushings Included: Yes
Coil Spring Color: Black
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coil Spring Material: Steel
Coils Quantity Front: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2
Front Spring Rate: 412
Front Spring Rate: 550
Front Spring Rate Type: Progressive Dual Rate
Grade Type: Performance
Maximum Lift: 4.5
Maximum Lift Height Front: 4.5
Maximum Lift Height Rear: 3.75
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
