Icon K213101 - 2019+ Ram 1500 2/4WD .75-2.5in Stage 1 Suspension System

Icon  |  SKU: ICON-K213101
Sale price $1,94075 Regular price $2,13482

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

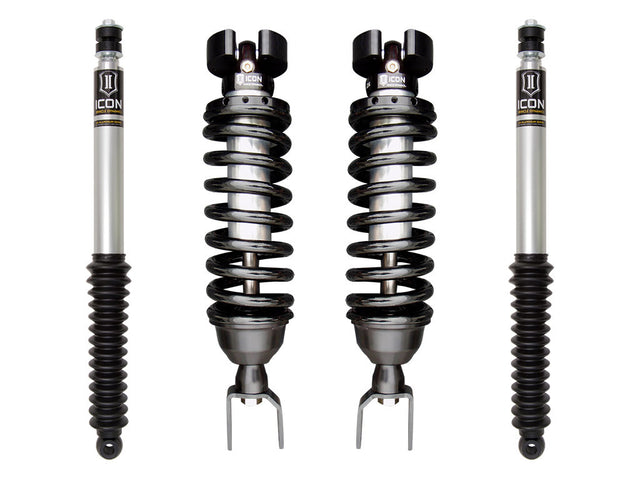

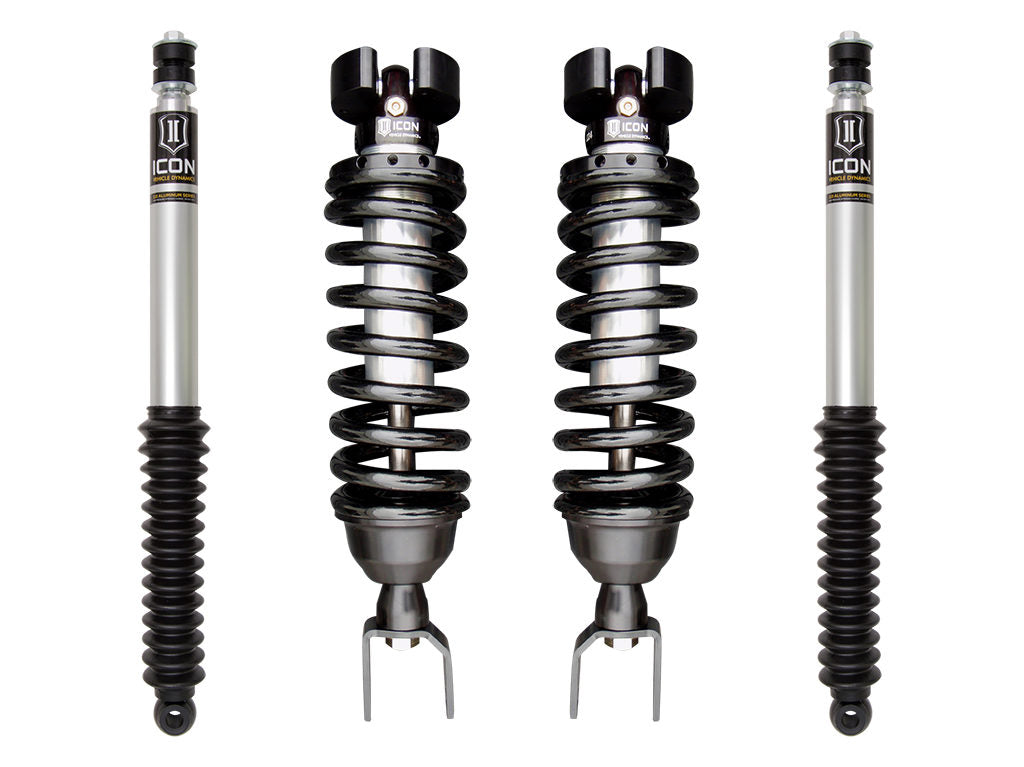

Icon K213101 - 2019+ Ram 1500 2/4WD .75-2.5in Stage 1 Suspension System

19-UP RAM 1500 2/4WD 0-1.5" STAGE 1 SUSPENSION SYSTEM

ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-1.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2026 Ram 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

  • Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
  • ICON shocks feature vehicle specific tune for superior performance and ride quality
  • Fits 2WD & 4WD applications
  • 6061 Aircraft grade aluminum CNC machined components
  • Shocks are fully rebuildable and revalvable
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 2187550DJ - 09-26 RAM 1500 TUBULAR UCA DJ KIT
Add-On Part: 218560DJ - 19-26 RAM 1500 BILLET UCA DJ KIT
Add-On Part: 212150 - 09-26 RAM 1500 REAR 1.5" DUAL RATE SPRING KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Bushings Included: Yes
Coil Spring Color: Black
Coil Spring End 1 Type: Square
Coil Spring End 2 Type: Square
Coil Spring Material: Steel
Coil Spring Maximum Inside Diameter: 3
Coils Quantity Front: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5
Front Spring Rate: 650
Front Spring Rate Type: Linear
Grade Type: Performance
Maximum Lift: 1.5
Maximum Lift Height Front: 1.5
Minimum Lift Front: 0
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
