Icon K212545P - 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 2.5" Lift, Stage 5 Suspension System, w/ Performance Rear Coil Springs
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
Icon K212545P - 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 2.5" Lift, Stage 5 Suspension System, w/ Performance Rear Coil Springs
14-26 RAM 2500 4WD 2.5" STAGE 5 SUSPENSION SYSTEM (PERFORMANCE)
The ICON stage 5 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. 2.5 Series reservoir shocks keep the shocks at a cooler operating temperature during heavy use.
This system includes triple-rate rear coil springs for a more compliant ride. The lighter initial rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary ride rate allows the truck to maintain exceptional ride quality, while the aggressive third overload rate helps prevent bottom outs and provides payload support (at a reduced ride height). These performance systems were specifically developed for the 3/4 ton truck enthusiast who enjoys aggressive off-road adventures and does not tow or haul heavy loads.
- ICON engineered dual rate front coil springs with match tuned 2.5 Aluminum Series remote reservoir shocks
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

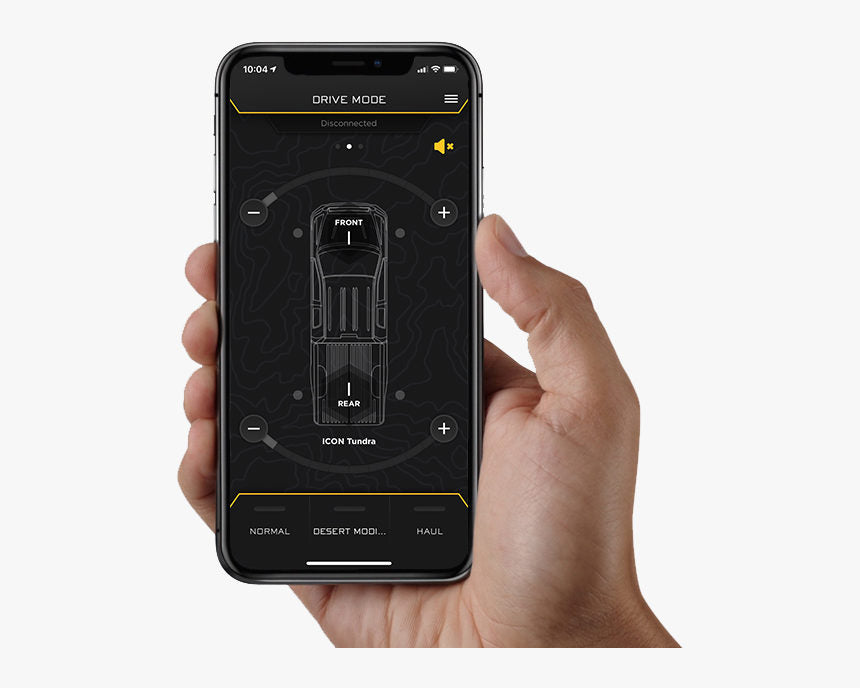

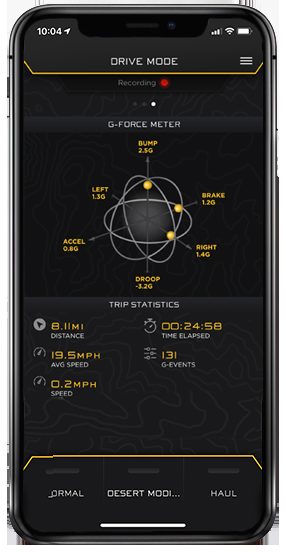

- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Adjustable front and rear track bars realign axles and improves strength
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- Performance triple rate rear coil springs provide .5" of rear lift and more compliant ride quality
- 2.5 Aluminum Series piggyback reservoir rear shocks compliment rear coils in both length and damping tune for increased rear wheel travel and suspension performance
- Less body roll than stock
- No drive shaft modifications needed
