Icon 91210 - 2011+ Ford Ranger T6 1-3in 2.5 Series Shocks VS RR Coilover Kit
Icon | SKU:
ICON-91210
Sale price
$1,87195
Regular price
$2,05914
Unit price
/
Unavailable
$187.19 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

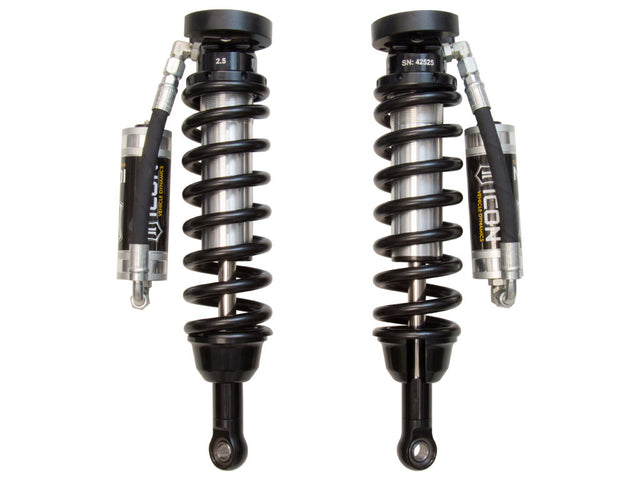

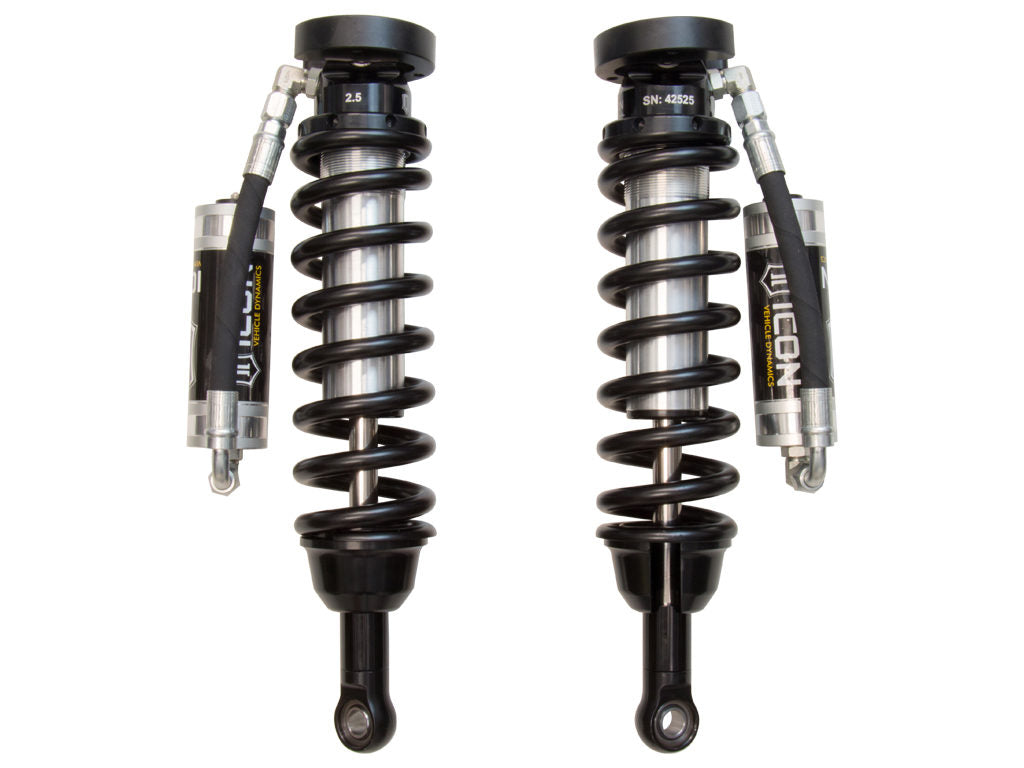

Icon 91210 - 2011+ Ford Ranger T6 1-3in 2.5 Series Shocks VS RR Coilover Kit
11-UP RANGER T6 1-3" 2.5 VS RR COILOVER KIT
2011-UP RANGER T6 1-3" LIFT 2.5 VS REMOTE RESERVOIR COILOVER KIT
Travel Length: 5.16
Upper Mount Type: MOUNT PLATE
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2,5
Coil Over Springs Included: Yes
Compressed Length: 15.78
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 20.93
Front Spring Rate: 650
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: 1
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 32 x 11.00" Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: 17x8.5" w/ 5” Backspace
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
