Icon 91000 - 04-08 Ford F-150 4WD 0-2.63in 2.5 Series Shocks VS IR Coilover Kit

Icon  |  SKU: ICON-91000
Sale price $1,71387 Regular price $1,88526

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

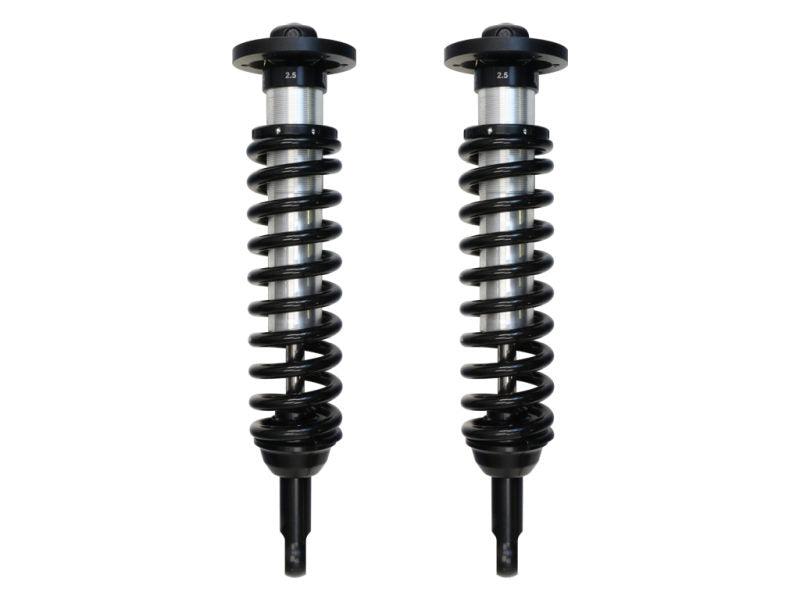

Icon 91000 - 04-08 Ford F-150 4WD 0-2.63in 2.5 Series Shocks VS IR Coilover Kit

04-08 F150 4WD 0-2.63" 2.5 VS IR COILOVER KIT

ICON 2.5 Series internal reservoir coilovers are an incredible upgrade for the Ford F-150. Vehicle-specific valving provides a sport tuned feel while offering 0-2.63” of lift height for use of larger, more aggressive wheel and tire combos.

ICON Vehicle Dynamics V.S. Series 2.5" coil-over shocks are an incredible upgrade for the front end of 2004-2008 Ford F-150 4WD trucks. ICON's Vehicle-specific valving provide a sport tuned feel on and off-road while 0-3" lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable 0-2.63" lift height
  • ICON engineered Eibach Springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no drilling,cutting or welding necessary for installation
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 17.85
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 23.21
Front Spring Rate: 600
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 2.63
Maximum Ride Height Raising Distance: 2.63
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Travel Length: 5.37
Upper Mount Type: Mounting Plate
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
