Icon 81000 - 04-15 Nissan Titan 2.5 Series Shocks VS IR Coilover Kit
04-15 TITAN 2.5 VS IR COILOVER KIT

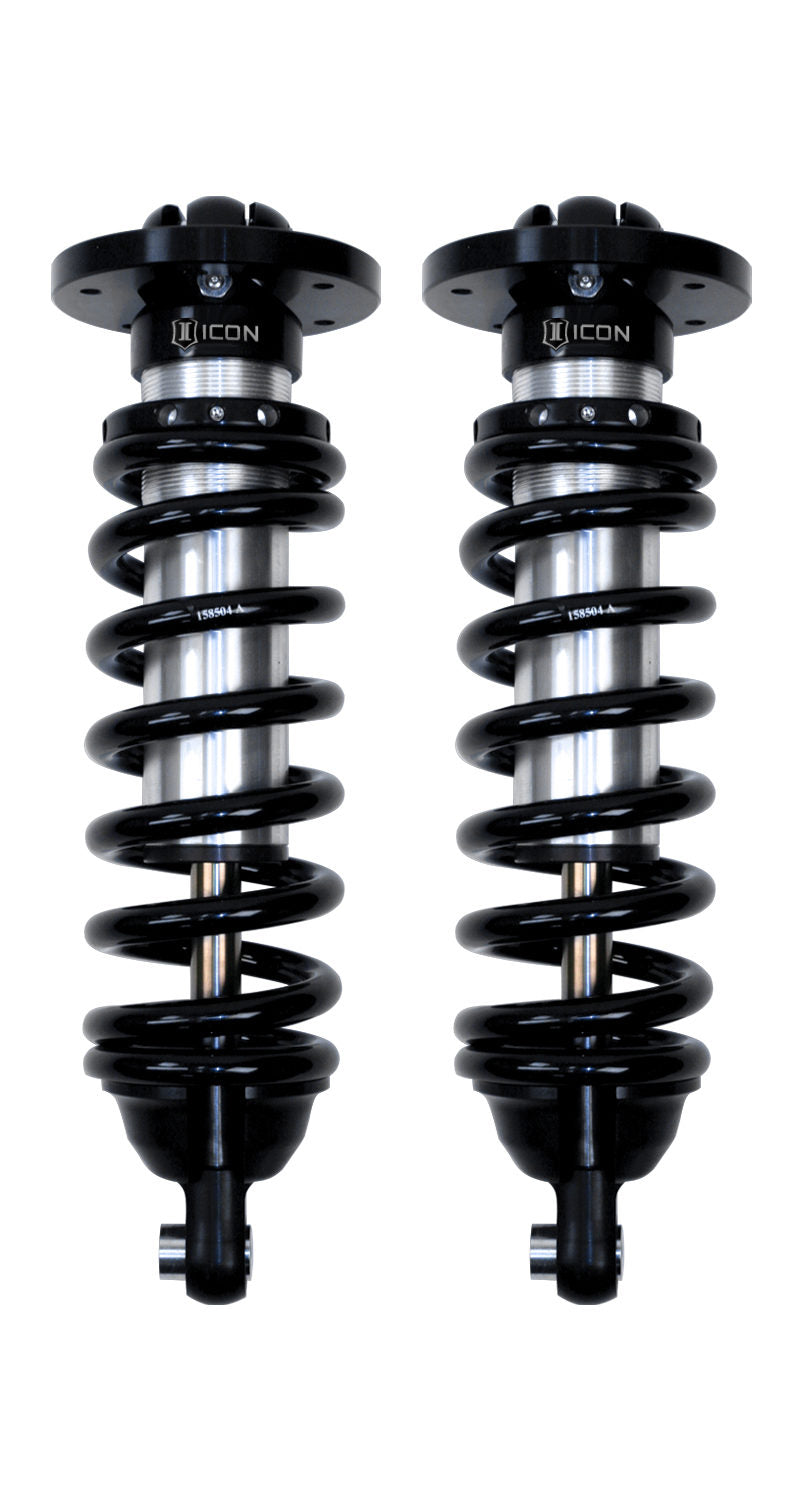

2004-2015 NISSAN TITAN 2.5 VS INTERNAL RESERVOIR COILOVER KIT
These 0 - 3 Inch Adjustable Coil-over shocks will increase the handling and ride quality of your Nissan Titan or Armada. They are preset with 2 inches of lift out of the box to level out your vehicle and give clearance of 33 Inch Tall Tires.
- Adjustable ride height from 0" - 3"
- Race shock piston with flutter stack compression valving
- Cad-plated threaded body / Optional Extreme Weather Plating
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable and re-valvable shock
- 2.5" shock diameter to prevent overheating
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 257303 - 7/8 SHAFT 9.25 OAL, 5.00 TRAVEL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Travel Length: 4.56
Upper Mount Type: Mounting Plate
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 12.15
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 16.71
Front Spring Rate: 650
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
