Icon 76552 - 11-26 GM 2500/3500 HD 0-1.5in Rear VS 2.0 HD IR

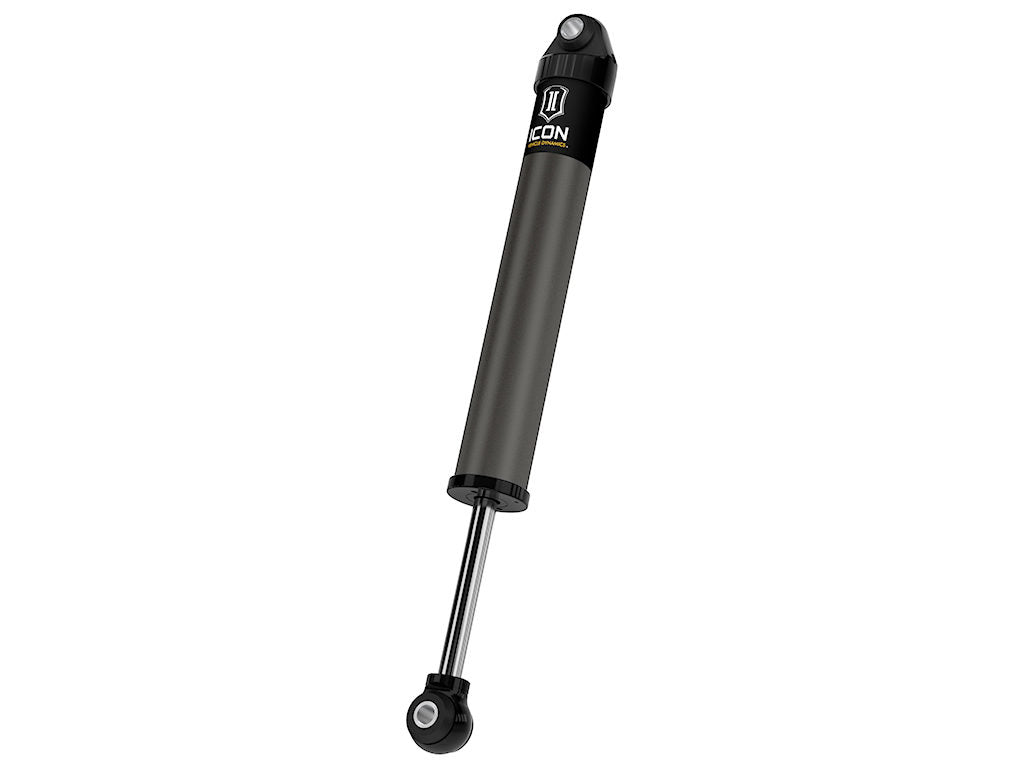

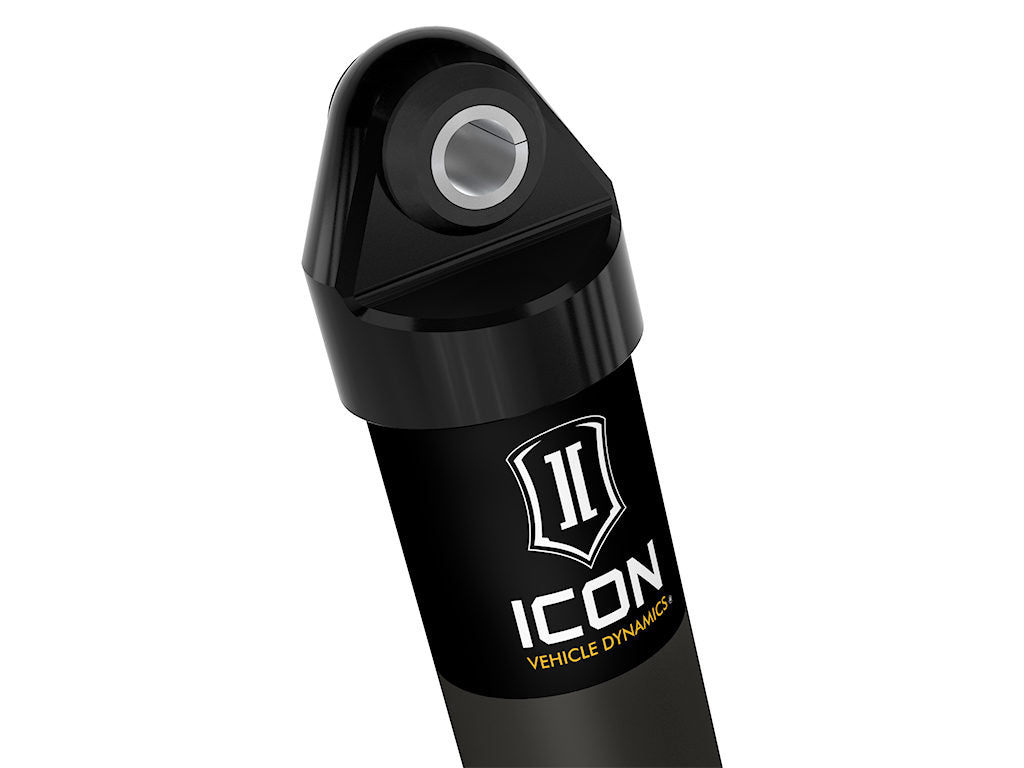

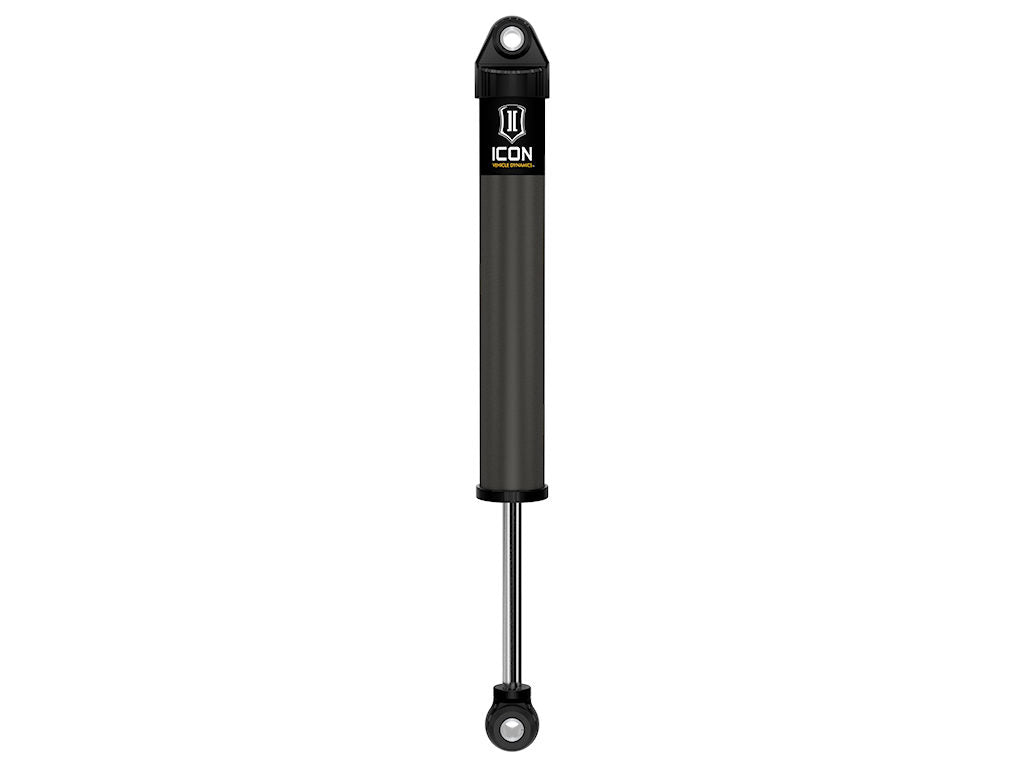

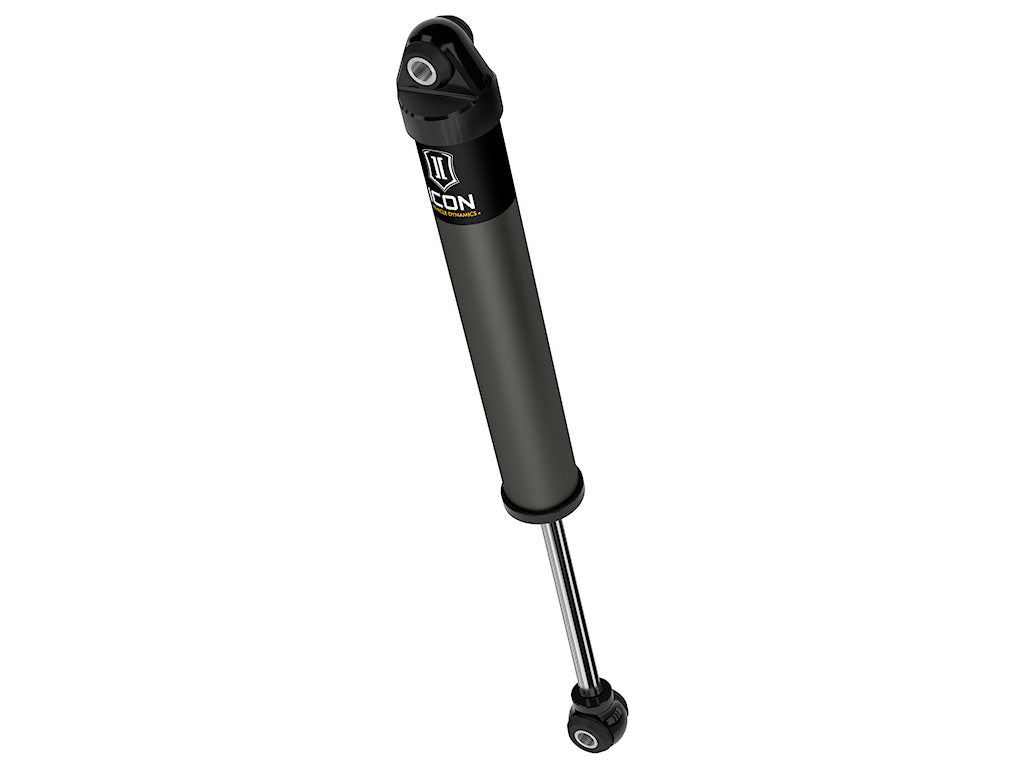

11-26 GM 2500/3500 HD 0-1.5" REAR VS 2.0 HD IR
ICON Vehicle Specific (V.S.) 2.0 HD Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for heavy duty applications. The V.S. 2.0 HD Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road ride quality and performance. ICON 2.0 HD shocks feature hard anodized 6061 aluminum cylinders with increased wall thickness and taller DU bearings, significantly improving pull apart and side load strength compared to ICON 2.0 Aluminum Series shock absorbers. Internal nitrogen reservoirs help provide consistent performance under hard use. Like all ICON shock absorbers, V.S. 2.0 HD Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Aluminum Series shocks to handle extra abuse and punishment your suspension will need to endure.
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir
- Hard anodized 6061 aluminum body tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Increased cylinder wall thickness and DU bearing height compared to ICON 2.0 Aluminum Series shocks offers improved strength
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings and zinc plated sleeves for OE factory type fitment
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.100 IN; Fully Open Length: 26.17 IN; Shock Stroke: 10.07 IN; Travel Length: 10.07 IN
Body Color: Gray
Body Diameter: 2.125
Body Material: Aluminum
Boot Included: NO
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
Coil Over Springs Included: NO
Coil Spring Insulator(s) Included: No
Color: Gray
Color: Black
Compressed Length: 16.08
Configuration: Performance
Cylinder Color: Gray
Cylinder Diameter: 2.125
Cylinder Finish: Hard Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2.125
Damping Type: Oil
Dust Boot Included: No
Dust Shield: NO
Dust Shield Included: No
Extended Length: 26.23
External Reservoir: No
Finish: Hard Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Sleeve Inside Diameter: .56
Lower Mount Sleeve Overall Length: 1.65
Lower Mount Type: EYELET
Material: Steel
Material: Aluminum
Maximum Ride Height Raising Distance: 1.5
Mounting Hardware Included: No
Quantity: 1
Remote Reservoir: NO
Reservoir Type: Internal
Rod Diameter: .625
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 202002 - 2.0 IFP REBUILD KIT
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Stroke: 10.16
Stroke Length Rear: 10.16
Suspension Type: Spring
Travel Length: 10.16
Tube Outside Diameter: 2.125
Type: Telescopic
Upper Mount Sleeve Inside Diameter: .56
Upper Mount Sleeve Overall Length: 1.65
Upper Mount Type: EYELET
Valving Type: Digressive
Valving Type: Linear
