Icon 71510 - 2015+ Chevrolet Colorado 2.5 Series Shocks VS RR Coilover Kit

Icon  |  SKU: ICON-71510
Sale price $1,92811 Regular price $2,12092

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

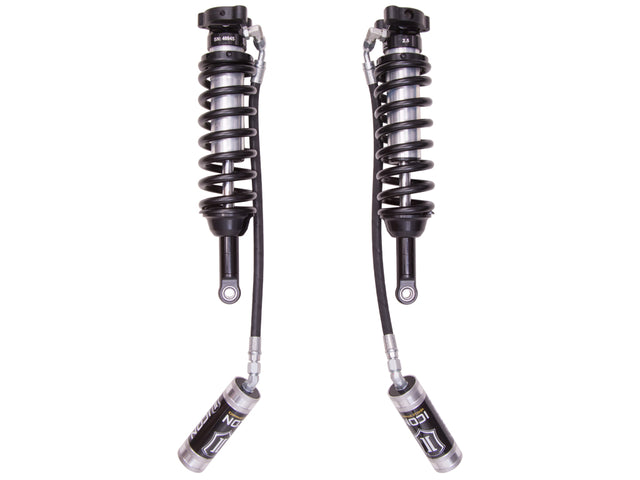

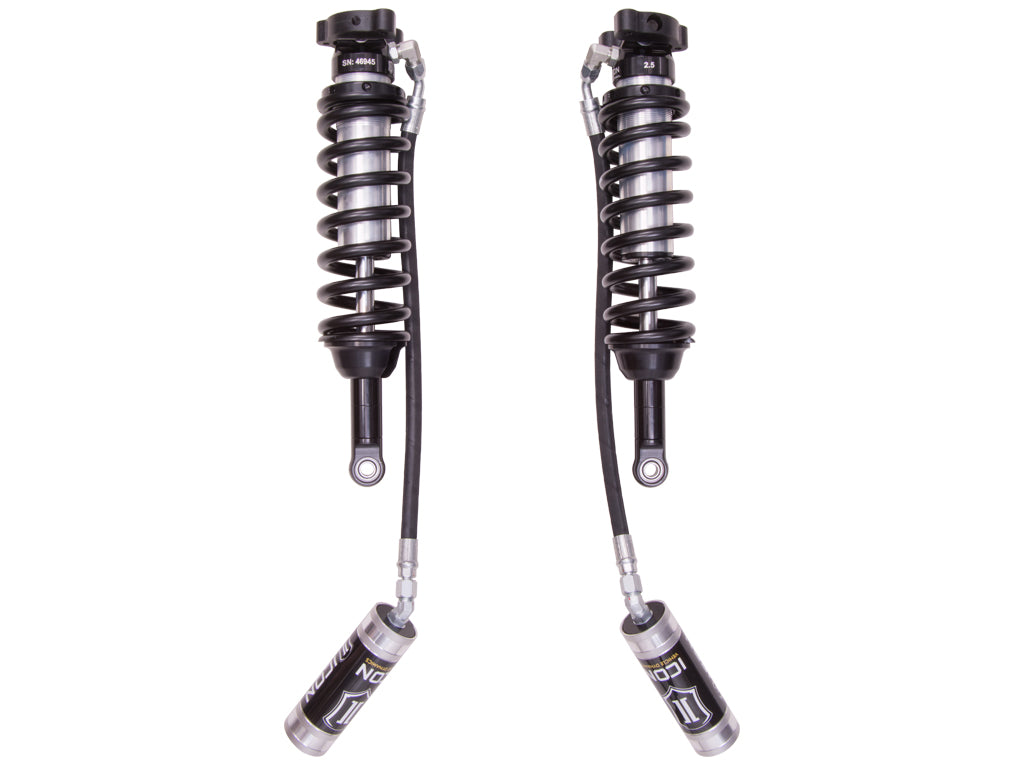

Icon 71510 - 2015+ Chevrolet Colorado 2.5 Series Shocks VS RR Coilover Kit

15-23 COLORADO 2.5 VS RR COILOVER KIT

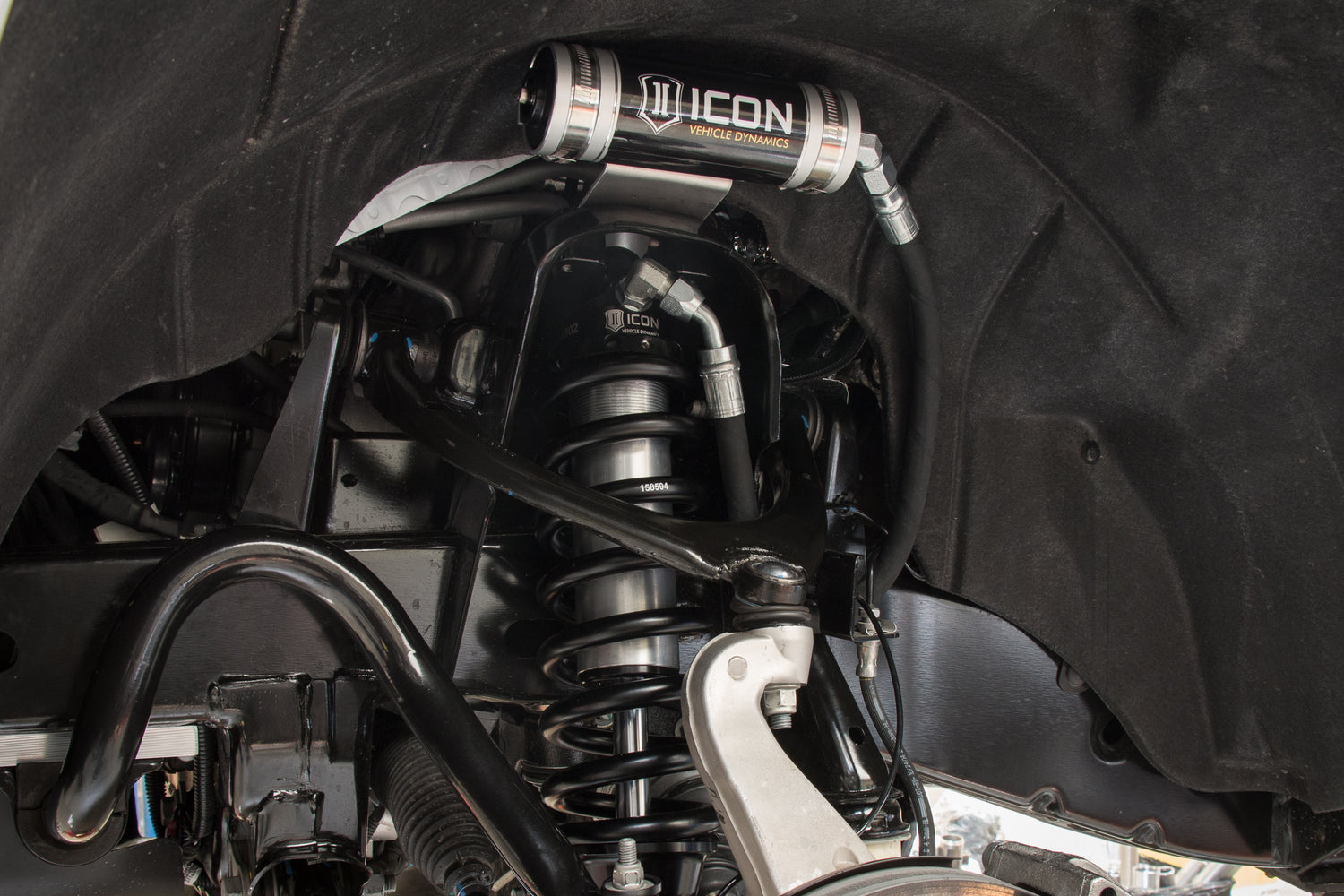

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2015-2022 Chevrolet Colorado/GMC Canyon truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoir ensures optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado/Canyon.

  • 25% increase in wheel travel over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • External reservoir to attain cooler operating temperatures during extended offroad use
  • Improved ride quality over stock on and off road
  • Height-adjustable coilovers offer 1.75-3" of lift height
  • ICON engineered Eibach Springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no cutting or welding necessary for installation
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 16.05
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 21
Front Spring Rate: 650
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: .75
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 32" x 11.00" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate: 650
Spring Rate Type: Linear
Travel Length: 4.95
Upper Mount Type: Mounting Plate
Valving Type: Digressive
