Icon 71505 - 07-18 GM 1500 1-3in 2.5 Series Shocks VS IR Coilover Kit
Icon | SKU:
ICON-71505
Sale price
$1,82099
Regular price
$2,00309
Unit price
/
Unavailable
$182.10 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

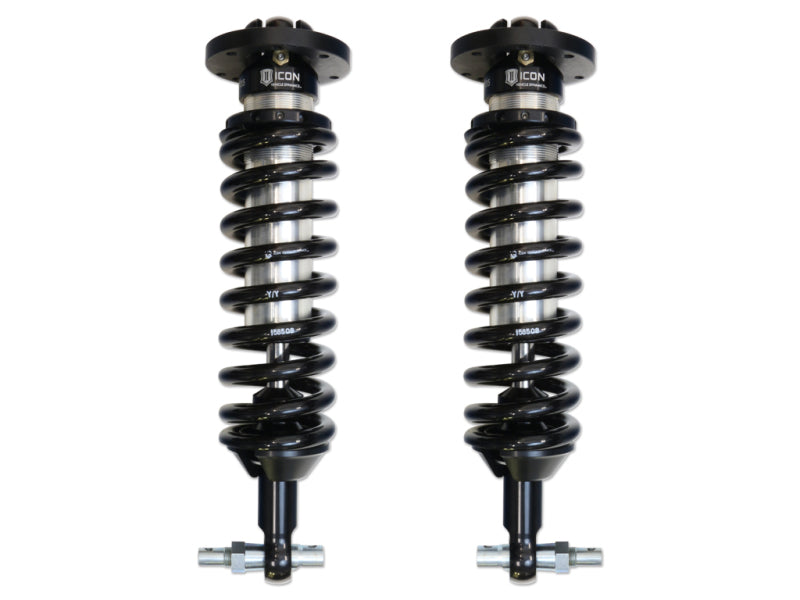

Icon 71505 - 07-18 GM 1500 1-3in 2.5 Series Shocks VS IR Coilover Kit
07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT
2007-2018 GM 1500 1-3" LIFT 2.5 VS INTERNAL RESERVOIR COILOVER KIT
These coil-overs are valved specifically for the new body style (GMT 900 Platform) Chevrolet and GMC half ton, 2WD and 4WD applications. They not only drastically improve the off road characteristics of the vehicle, but increase the on road handling and performance as well. These shocks add an additional inch of wheel travel when used in conjunction with an ICON Vehicle Dynamics Arm (PT# 78600). They also offer an additional amount of lift height compared to our standard travel coil-over shocks.
- Less body-roll than stock truck
- 2.5" Diameter shock Body
- Lifetime guarantee on coil-springs
- Clears 33" Tall Tires
- Internal Nitrogen Reservoir for Compact Design and Optimum Performance
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 14.97
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 19.83
Front Spring Rate: 700
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Aluminum
Material: Steel
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: 1
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 257306 - 7/8 SHAFT 9.65 OAL, 5.40 TRAVEL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Travel Length: 4.87
Upper Mount Type: Mounting Plate
Valving Type: Digressive
