Icon 67620P - 2005+ Ford F-250/F-350 Super Duty 4WD 7in Front 2.5 Series Shocks VS IR - Pair

Icon  |  SKU: ICON-67620P
$81200 $89320

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

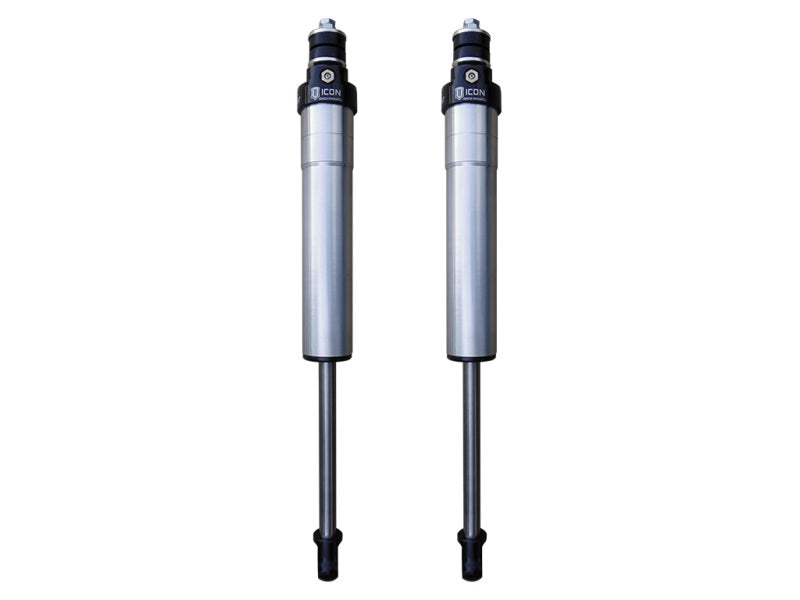

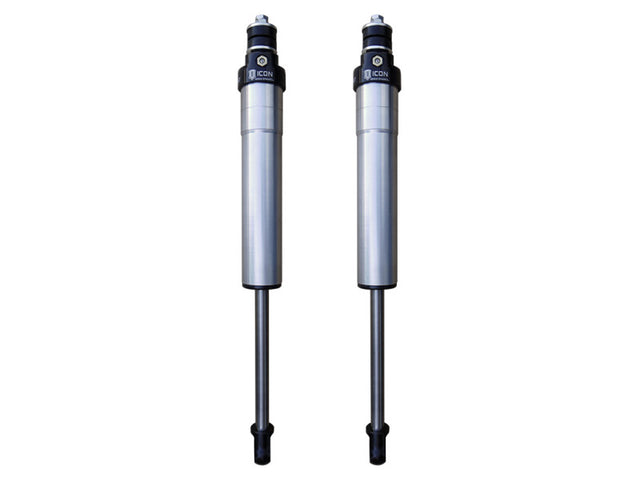

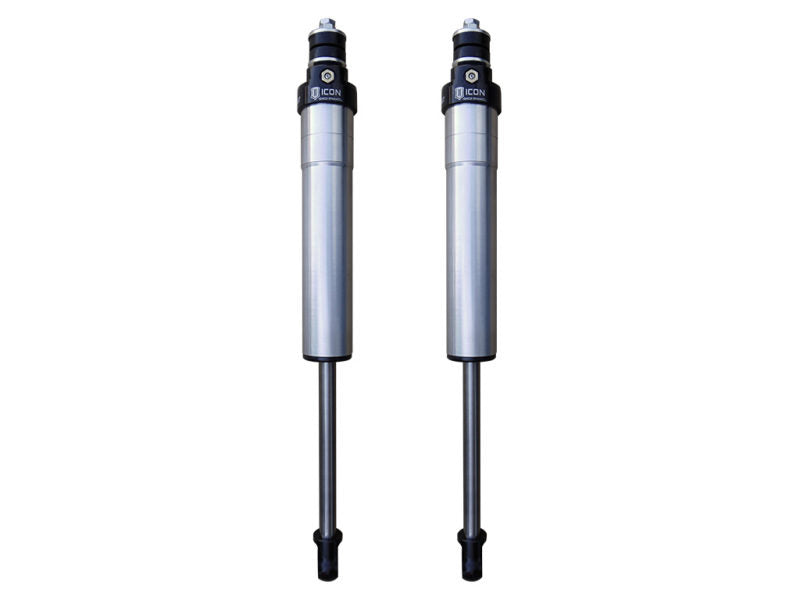

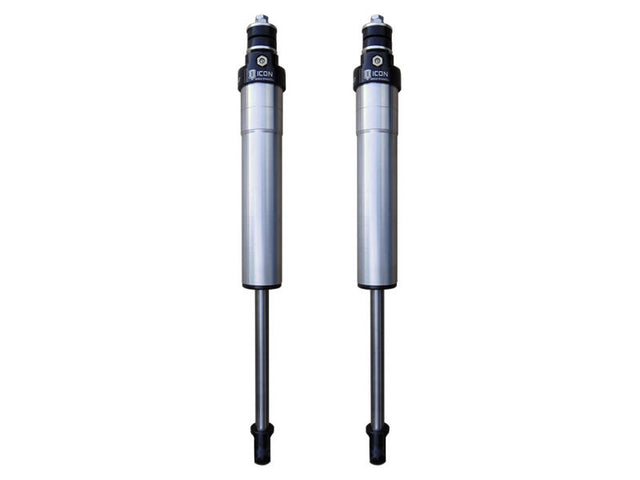

Icon 67620P - 2005+ Ford F-250/F-350 Super Duty 4WD 7in Front 2.5 Series Shocks VS IR - Pair

05-26 FSD 4WD 7" FRONT 2.5 VS IR PAIR

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
  • Nitrogen charged monotube design with internal reservoir
  • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • 6061 aircraft grade aluminum CNC machined components
  • PTFE lined spherical bearings and application specific mounting hardware
  • 100% Revalveable
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • 100% Rebuildable
  • Polyurethane bushings and forged steel mounting stems for OE factory type fitment
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Adjustable: NO
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.100 IN; Fully Open Length: 26.17 IN; Shock Stroke: 10.07 IN; Travel Length: 10.07 IN
Boot Included: NO
Bore Diameter: 2.25
Compressed Length: 17.55
Cylinder Color: Gray
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Type: Oil
Extended Length: 27.88
External Reservoir: NO
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Lower Mount Type: EYELET
Mounting Hardware Included: Yes
Reservoir Type: Internal
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 611006 - 9/16 HD STEM BUSHING KIT
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Shoulder of Stem
Shock Absorber Rod End Measuring Point: Center of Eylet
Stroke Length Front: 10.33
Tube Outside Diameter: 2.5
Upper Mount Type: Stem
Valving Type: Digressive
